Bentuk Bulat Tabung Boiler Mulus DIN 17456 EN10216 5 ASME SA213 Standar
Product Details
| Bahan: | TP304, TP304L, TP304H, TP304N, TP310S, TP316L, TP316Li, TP316H, TP316H, TP317, TP317L, TP321, TP321H | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| Diameter luar: | 6.00mm hingga 101.6mm | ketebalan dinding: | 0,5mm hingga 8mm |
| Menyoroti |
ss pipa seamless,tabung ketel stainless steel |
||
Product Description
Deskripsi Produk Rinci
| Standar: | ASTM A213, ASTM A269, GOST 9941-81, EN10216-5, DIN 17458 | Kelas: | 08X18H10 , 12X18H10T , TP321, TP321H , 1.4541 |
| NDT: | Uji Arus Eddy, Uji Hidrostatik, Uji Ultrasonik | Standar Pengujian: | ASTM A450, A999, A1016, E213, E262, E426, E112 |
Tabung Stainless Steel Seamless GOST 9941-91, DIN 17456, DIN 17458, EN10216-5, ASME SA213,
DIN 28180, NF A49-217.Untuk aplikasi boiler, Heat Exchanger, Cooling, Heater.
Spesifikasi:
ASME SA213/A213: Spesifikasi Standar untuk Paduan Feritik dan Austenitik Seamless
Steel Boiler, Superheater dan Tabung Penukar Panas Stainless Steel.
ASTM A249 / A249M:Spesifikasi Standar untuk Boiler Baja Austenitik Dilas, Superheater
Penukar Panas, dan Tabung Kondensor.
Standar Lainnya: DIN 17456, DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
Kelas Bahan:
| Standar Amerika |

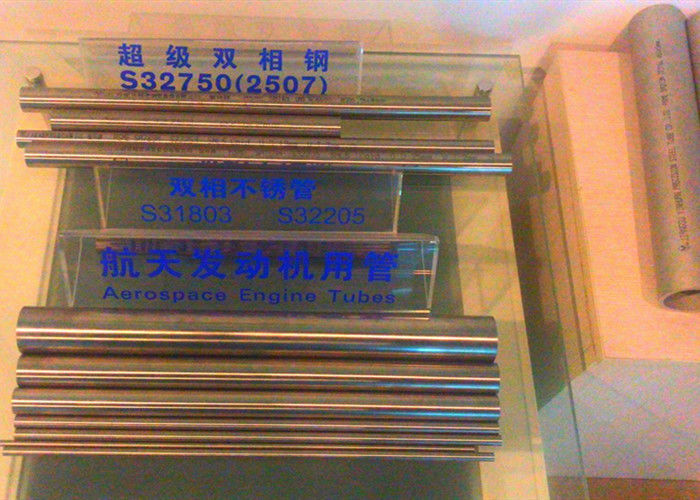

Baja Austenitik: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Lainnya:TP405,TP409, TP410, TP430, TP439,... |
| Standar Eropa | 1.4301.1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1,4462, 1,4362, 1,4410, 1.4501 |
| Standar Rusia | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х1812,121810,12Х |
Rentang Ukuran:
| Produksi | Diameter luar | Ketebalan dinding |
| BoilerTube | 6.00mm hingga 101.6mm | 0,5mm hingga 8mm |
Penyelesaian Akhir
Solusi Anil & Acar / Anil Cerah.
Jenis Tabung:
U-tikungan & Lurus.
Beberapa uji kualitas yang kami lakukan antara lain:
| Uji Korosi | Dilakukan hanya jika diminta secara khusus oleh klien |
| Analisis kimia | Tes dilakukan sesuai standar kualitas yang dipersyaratkan |
| Pengujian Destruktif / Mekanik | Tarik |kekerasan |Meratakan |Suar |Penghubung jalur pipa |
| Reverse-bend dan Re.tes datar | Dilakukan dengan kepatuhan penuh terhadap standar yang relevan & norma ASTM A-450 dan A-530, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di ujung pelanggan |
| Pengujian Arus Eddy | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatik | Pengujian Hidrostatik 100% dilakukan sesuai dengan norma ASTM-A 450 untuk memeriksa kebocoran tabung, dan tekanan terbesar yang dapat kami dukung 20Mpa/7s. |
| Uji Tekanan Udara di Bawah | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasivasi, setiap panjang tabung & pipa menjalani pemeriksaan visual menyeluruh oleh staf terlatih untuk mendeteksi cacat permukaan & ketidaksempurnaan lainnya |
Pengujian Tambahan: Terlepas dari tes yang disebutkan di atas, kami juga melakukan tes yang diproduksi
pengujian produk tambahan.Tes yang dilakukan di bawah ini meliputi:
|
· Pengujian Arus Eddy · Pengujian OP · Pengujian Radiografi |
· Pengujian Korosi · Pengujian Mikro · Pengujian Makro |
· Pengujian IGC · Pengujian ultrasonik · Pengujian penetrasi cair |
Sertifikasi
