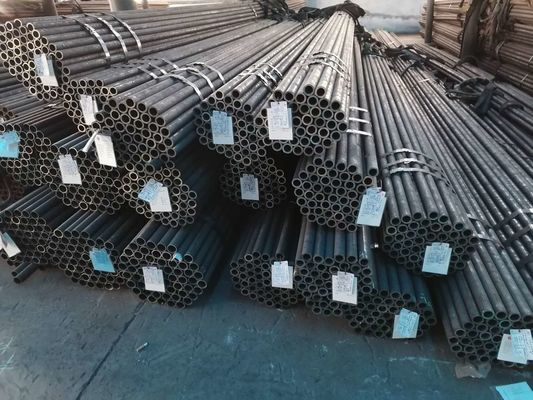

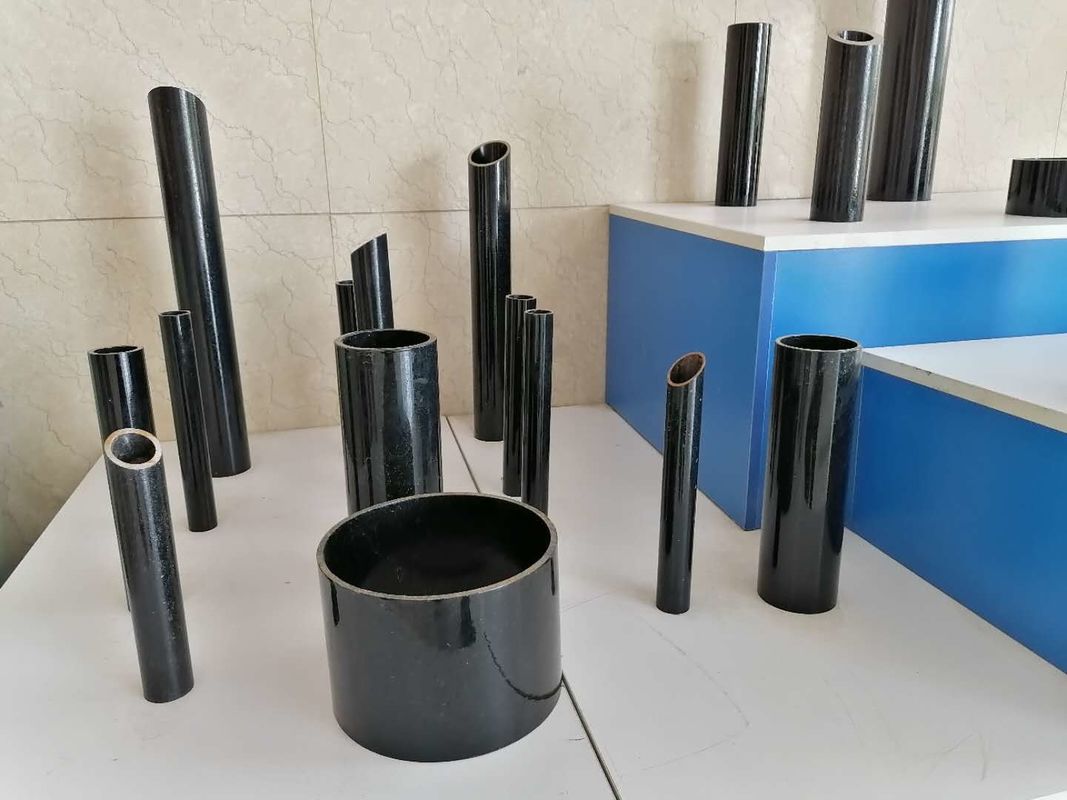

A179 SA179SMLS Carbon Steel Seamless Tube Untuk Ketinggian Tekanan Rendah Menengah Tinggi
Product Details
| Bahan: | Baja karbon | Finishing permukaan: | Anil, Normalisasi, Marah |
|---|---|---|---|
| Aplikasi: | Untuk boiler dan tekanan bertekanan tinggi, sedang, rendah | Bentuk: | Bulat mulus |
| Menyoroti |
cs seamless pipe,cs galvanized pipefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en' |
||
Product Description
Spesifikasi rinci:
Standar Produksi, Kelas, Baja No:
ASTM A178 Kelas A, C, D
ASTM A179 Kelas A, C, D
ASTM A192
ASTM A210 GradeA-1, C
BS3059-Ⅰ 320 CFS
BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2
EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2
EN10216-2 P195GH, P235GH, P265GH, TC1, TC2
DIN17175 ST35.8, ST45.8
DIN1629 ST37.0, ST44.0, ST50.0
JIS G3454 STPG370, STPG410
JIS G3461 STB340, STB410, STB440
GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB
GB9948 10, 20, 12CrMo, 15CMo
GB3087 10, 20
Kondisi pengiriman:
Anil, Normalisasi, Normalisasi, dan Tempered
Inspeksi dan Uji:
Inspeksi Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Hasil,
Perpanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Tidak Merusak, Uji Hidrostatik.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Aplikasi
Untuk boiler bertekanan tinggi, menengah, rendah dan tujuan tekanan
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||||
| Diameter luar | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Tebal Dinding mm Wall | |||||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | inci | Berat kg/m | |||||||||
| 6.35 | 1/4 | 0,081 | 0.109 | 0,133 | 0,174 | 0.212 | |||||
| 9.53 | 3/8 | 0,126 | 0,157 | 0.193 | 0.257 | 0,356 | 0,429 | ||||
| 12,7 | 1/2 | 0.214 | 0,26326 | 0,356 | 0,457 | 0.612 | 0,754 | ||||
| 15.88 | 5/8 | 0,2712 | 0,334 | 0,455 | 0,588 | 0,796 | 0.995 | ||||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0,667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1,342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2,729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Bentuk Tabung: Lurus & U-tikungan & Bersirip & Melingkar | |||||||||||
Tabung Baja Tahan Karat: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, | |||||||||||
| Tabung Baja Karbon & Paduan: A/SA178, A/SA179, A/SA192, A/SA209, A/SA210, A/SA213, A.SA214 | |||||||||||
Sertifikasi
