Penukar panas Mulus Tabung Stainless TP304 304L TP316L TP347 TP317 100% ET HT UT
Product Details
| Bahan: | TP304 / 304L, TP316L, TP310S, TP316Ti, TP321 / 321H, TP347, TP317 | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | penukar panas & Boiler, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | lurus, menekuk, tabung koil |
| Diameter luar: | 2.00mm hingga 200mm | ketebalan dinding: | 0,5mm hingga 20mm |
| Menyoroti |
ss pipa seamless,tabung ketel stainless steel |
||
Product Description
Penukar panas Tabung Mulus TP304 / 304L / TP316L TP310S TP316Ti TP321 / 321H TP347 TP317, 100% ET / HT / UT
Specifikasi:
ASME SA213/ A213: Spesifikasi Standar untuk Seamless Feritik dan Austenitik Paduan-
Boiler Baja, Superheater, dan Tabung Penukar Panas Stainless Steel.
ASTM A249 / A249M: Spesifikasi Standar untuk Welded Austenitic Steel Boiler, Superheater
Heat-Exchanger, dan Tabung Kondensor.
ASTM A789 / A789M, ASME SA789 / SA789M Tabung Stainless Steel Ferritic / Austenitic untuk Layanan Umum
Standar lainnya:DIN 17456, DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463, ...
Kelas bahan:
| Standar Amerika |

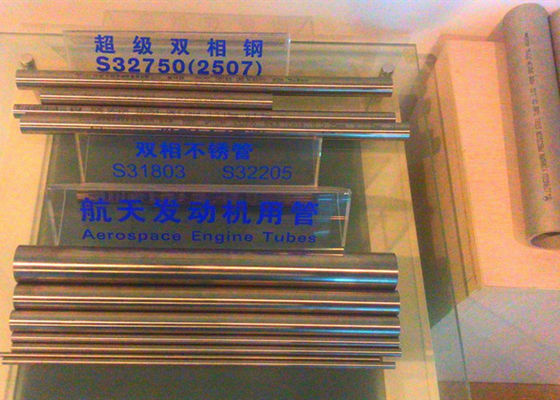

Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316L, TP316L, TP316H, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Lainnya:TP405, TP409, TP410, TP430, TP439, ... |
| Standar Europen | 1.4301.1.4307.1.4948.1.4541.1.4878.1.4550.1.4401.1.4404.1.4571.1.4438, 1.4841.1.4845.1.4539.1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia | 08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т, 08Х17Н15Т, 08Х17Н15М3Т, 12 hingga 088 hari, 22, 22, 22, 19, 19, 19, 19, 08, 08, 08, 08, 08, 10 |
Ukuran Jarak:
| Produksi | Diameter luar | Ketebalan dinding |
| Tabung Penukar Panas | 2.00mm hingga 200mm | 0,5mm hingga 20mm |
Finishing Akhir
Solusi Anil & Acar/ Bright Annealed.
Jenis tabung:

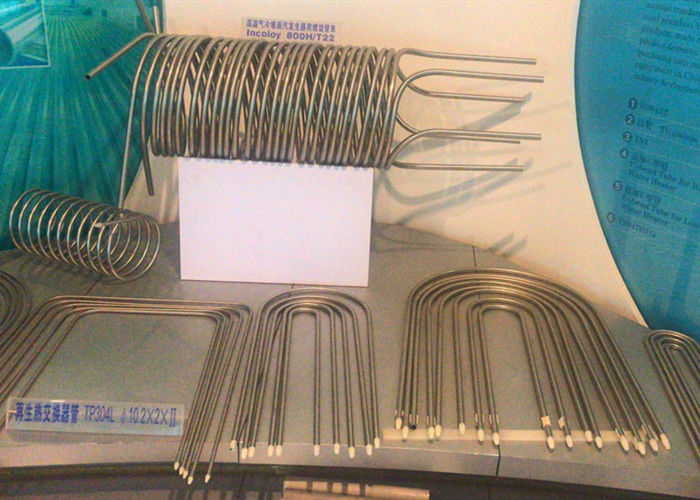

U-bend & Lurus & Coil.
Beberapa tes kualitas yang kami lakukan meliputi:
| Uji Korosi | Dilakukan hanya ketika diminta secara khusus oleh klien |
| Analisis kimia | Tes dilakukan sesuai standar kualitas yang disyaratkan |
| Pengujian Merusak / Mekanis | Tensile | Tarik | Hardness | Kekerasan | Flattening | Meratakan | Flare | Flare | Flange Penghubung jalur pipa |
| Reverse-bend and Re. Reverse-bend dan Re. flat tests tes datar | Dilakukan dengan kepatuhan penuh dengan standar & norma ASTM A-450 dan A-530 yang relevan, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di ujung pelanggan |
| Eddy Current Testing | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatik | Pengujian Hidrostatik 100% dilakukan sesuai dengan ASTM-A 450 norma untuk memeriksa kebocoran tabung, dan tekanan terbesar kami dapat mendukung 20Mpa / 7s. |
| Uji Tekanan Udara Di Bawah | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa harus melalui inspeksi visual menyeluruh oleh staf terlatih untuk mendeteksi cacat permukaan & ketidaksempurnaan lainnya. |
Pengujian Tambahan: Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. Terlepas dari tes yang disebutkan di atas, kami juga melakukan pengujian tambahan produk yang diproduksi. The tests conducted under this include: Tes yang dilakukan di bawah ini meliputi:
|
|
|
