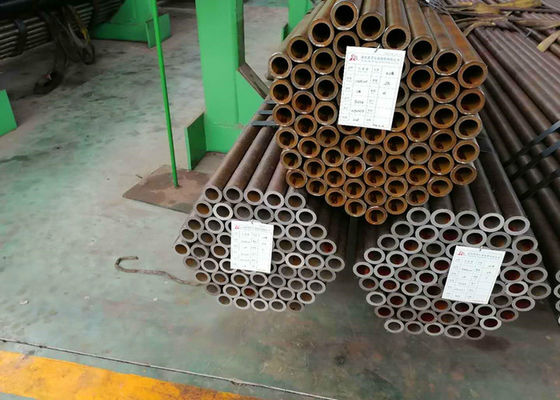

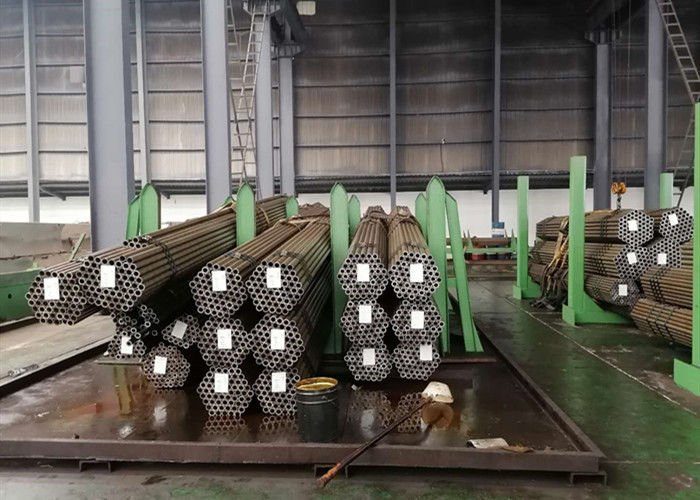

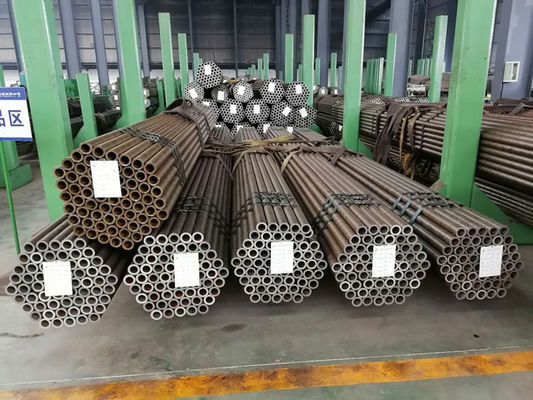

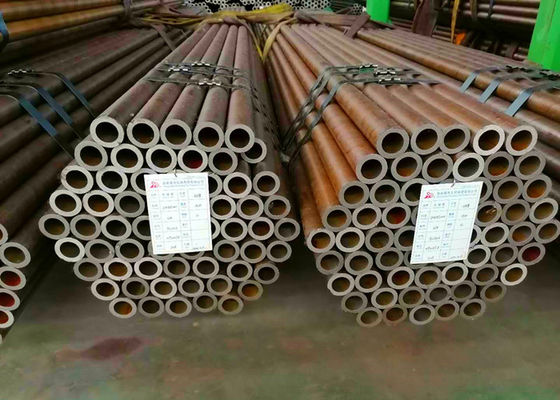

CS Boiler Steel Tube ASTM A106 A53 API 5L Gr B Gr A X42 X60 X70 SRL DRL
Product Details
| Nama Produk: | Pipa Baja Karbon | Aplikasi: | Ketel |
|---|---|---|---|
| Standar: | ASTM A106 / A53 / API 5L | Pihak ketiga: | BV, SGS, ASP |
| Menyoroti |
Tabung Baja Boiler ASTM A106 CS,Tabung Baja Boiler API 5L,Tabung Boiler ASTM A106 CS |
||
Product Description
Pipa Baja Karbon ASTM A106 / A53 / API 5L Gr.B Gr.A X56 X42 X46 X52 X60 X65 X70 SRL DRL
Pipa Baja Karbon ASTM A106 / A53 / API 5L Gr.B Gr.A X56 X42 X46 X52 X60 X65 X70 SRL DRL
Kami memproduksi produk baja dengan kualitas terbaik.Pelanggan menggunakan pipa baja standar dan pipa baja kami yang mulus untuk berbagai aplikasi kritis, termasuk transmisi minyak mentah, gas alam dan produk minyak bumi, penyulingan dan proses perpipaan untuk industri kimia dan petrokimia, anggota struktural dalam industri konstruksi, bubur pipa serta aplikasi saluran transmisi air.
kami dapat memproduksi pipa baja tanpa sambungan dari OD1 / 4 ＂hingga OD40＂, ketebalan SCH30, SCH40, SCH80, SCH160, dan seterusnya, sesuai dengan standar seperti GB, ASTM, API 5L, API 5CT, DIN, dan JIS.
| OD | 1/4 "-40", 13mm-1000mm |
| WT | SCH5, SCH10, SCH20, SCH40, SCH60, SCH80, SCH100, SCH120, SCH160, XXS |
| Spesifikasi |
1.Diameter Luar: 5mm --- 1250mm 2. Ketebalan Dinding: 0.5mm - 80mm 3. Panjang: Max 12m 4. Kami juga dapat memproduksi sesuai dengan kebutuhan pelanggan |
| Bahan | 10 # 20 # 45 # 16Mn A106 Gr A, B, A53 Gr B, ASTM A179, A315B, A335 P11, A335 P22, A335 P5 12CrMo 15CrMo 20CrMo 42CrMo 12Cr1Mov 10CrMo 910A 355P 22 STF A25 |
| Standar |
1. ASTM: ASTM A106 GR.A;ASTM A106 GR.B;ASTM A53 GR.A;ASTM A53 GR.B; 2. JIS: G3452; G3457;G3454;G3456;G3461;G3454;G3455; 3. DIN: ST33; ST38ST35; ST42; ST45; ST52.4; ST52;TT St35N; 10Ni14; 15Mo3 4. API: APL 5LAPI 5CT; API LINE PIPE dan sebagainya 5. kami juga dapat memproduksi sesuai dengan kebutuhan pelanggan |
| Sertifikat |
1. Sertifikat Sistem Manajemen Lingkungan 2. Sertifikat Kualitas Systerm 3. API 4. ISO 5. Sertifikat lainnya |
| Metode Proses |
1. Ditarik Dingin 2. digulung dingin 3. Digulung panas 4. ERW 5. MELIHAT 6. EFW 7. LASW |
| Wajah selesai |
1. Dipoles secara manual 2. dipoles mekanis 3. Cat hitam di wajah 4. Minyak anti karat dan tutup di kedua ujungnya 5. galvanis |
| Rentang Penggunaan |
1. pipa struktural 2. transportasi minyak atau gas 3. pipa fluida 4. pipa saluran 5. pipa bor 6. pipa boiler 7. Kegunaan lain yang dapat kami produksi sesuai dengan kebutuhan pelanggan |
| pengepakan |
1. PP 2. PE 3. Bundel 4. tutup kedua ujungnya 5. sesuai dengan kebutuhan pelanggan Semua untuk pelanggan dan semua untuk keuntungan pelanggan |
| Produk | OD | WT | Standar | Panjangnya | |
| Pipa seamless | 1/2 "hingga 24" | SCH20,30,40,60, STD, XS, 80 | ASTM A106 / API 5L GR.B | 5,8m, 6m, | |
| ASTM A53Gr.B | 5m hingga 12m acak | ||||
| Garis pipa | 3 "hingga 18" | SCH20,30,40,60, STD, XS | API5LGR.B / X42, X52, X60 | 5,8m, 6m, | |
| 5m hingga 12m acak | |||||
| Pipa baja ERW | 1 "hingga 28" | SCH20,30,40,60, STD, XS, 80 | ASRM A53GR.B | 5,8m, 6m, | |
| 5m hingga 12m acak | |||||
| Pipa baja spiral | 8 "hingga 36" | SCH20,30,40,60, STD, XS, 80 | AY / T5037-2001 | 5,8m, 6m, | |
| 5m hingga 12m acak | |||||
Bahan: Baja karbon
Toleransi: memenuhi standar.
Aplikasi: Produk ini banyak digunakan dalam pupuk, minyak bumi, stasiun pusat, ketel, pembangkit listrik, pengiriman militer, industri kimia, perlindungan lingkungan, lalu lintas, industri makanan, peralatan medis, dan sebagainya.
Pembayaran: T / T dan L / C atau negosiasi
Perlindungan: menyediakan lapisan pernis, ujung bevel, tutup plastik.
Persyaratan tambahan yang dibutuhkan pelanggan dapat diterima.
Product Highlights
Pipa Baja Karbon ASTM A106 / A53 / API 5L Gr.B Gr.A X56 X42 X46 X52 X60 X65 X70 SRL DRL Pipa Baja Karbon ASTM A106 / A53 / API 5L Gr.B Gr.A X56 X42 X46 X52 X60 X65 X70 SRL DRL Kami memproduksi produk baja dengan kualitas terbaik.Pelanggan menggunakan pipa baja standar dan pipa baja kami yang mulus ...
