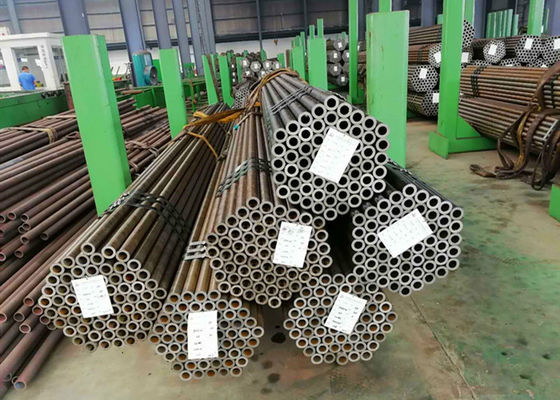

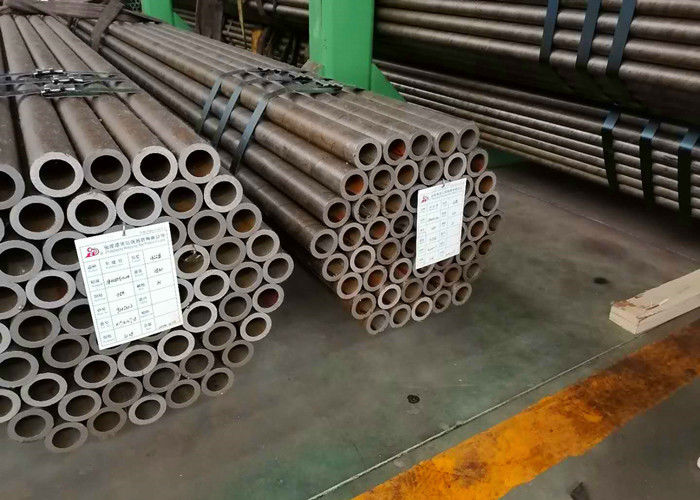

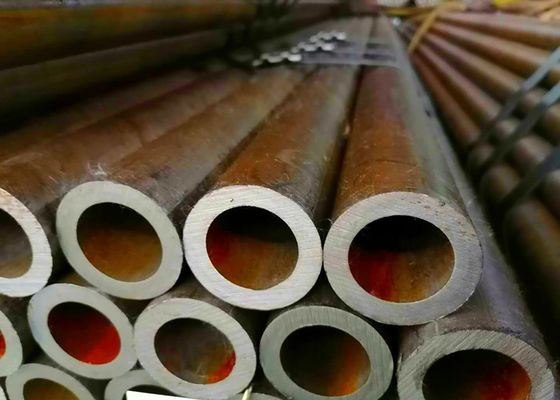

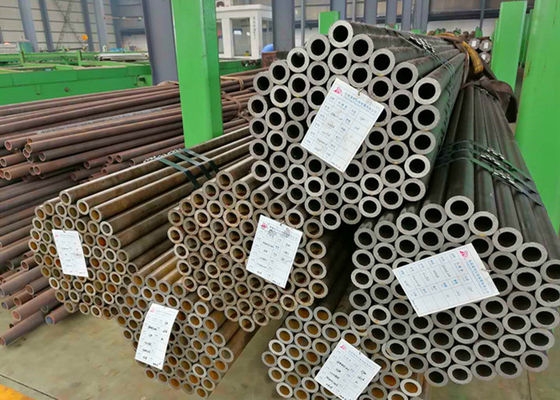

Tabung Penukar Panas Boiler Steel Tube Standard DIN2391 ST37.4 NBK 12 * 1MM
Product Details
| Nama Produk: | Tabung Penukar Panas Baja Karbon Tabung Seamless | Aplikasi: | Penukar Panas Boiler |
|---|---|---|---|
| Standar: | DIN2391 | Bahan: | ST37.4, ST52.4 |
| Menyoroti |
DIN2391 ST37.4 NBK Steel Tube,DIN2391 ST37.4 Heat Exchanger Tube,ST37.4 NBK Boiler Steel Tube |
||
Product Description
Carbon Steel Boiler Tube Heat Exchanger Seamless Tube DIN2391 ST37.4 NBK 12 * 1MM
Carbon Steel Boiler Tube Heat Exchanger Seamless Tube DIN2391 ST37.4 NBK 12 * 1MM
DIN2391 Presisi Cold Drawn Seamless Pipes and Tubes, Gr St35 St45 St52 St37.4, Cold Finished Seamless Pipe digunakan untuk Hidrolik dan Pneumatik.
Status Pengiriman: NBK (+ N) BKW (+ LC) GBK (+ A) BKS (+ SR) BK (+ C) OD x WT = 4 ~ 120 x 0,5 ~ 15mm
DIN2391 St52.4 + N Tabung Hidrolik Fosfat
suasana.
| Kualitas baja |
Komposisi kimia,
sebagai persentase massa
|
|||||
| Simbol |
Bahan
jumlah
|
C maks. | Si maks. | M N |
P.
maks.
|
S
maks.
|
| St 30 Si | 1.0211 | 0.10 | 0.30 | <= 0,55 | 0,025 | 0,025 |
| St 30 Al | 1.0212 | 0.10 | 0,05 | <= 0,55 | 0,025 | 0,025 |
| St 35 | 1.0308 | 0.17 | 0.35 | <= 0,40 | 0,025 | 0,025 |
| St 45 | 1.0408 | 0.21 | 0.35 | <= 0,40 | 0,025 | 0,025 |
| St 52 | 1.0580 | 0.22 | 0,55 | <= 1,60 | 0,025 | 0,025 |
|
Elemen paduan berikut dapat ditambahkan:
Nb: <= 0,03%;Ti: <= 0,03%;V: <= 0,05%;Nb + Ti + V: <= 0,05%.
|
||||||
| Kualitas baja | Komposisi kimia(%): | ||||||
| Nama baja | Nomor baja | C maks | Si maks | M N | P maks | S maks | Al min |
| E215 | 1.0212 | 0.10 | 0,05 | 0.70 | 0,025 | 0,025 | 0,025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0,025 | 0,025 | - |
| E355 | 1.0580 | 0.22 | 0,55 | 1.60 | 0,025 | 0,025 | - |
