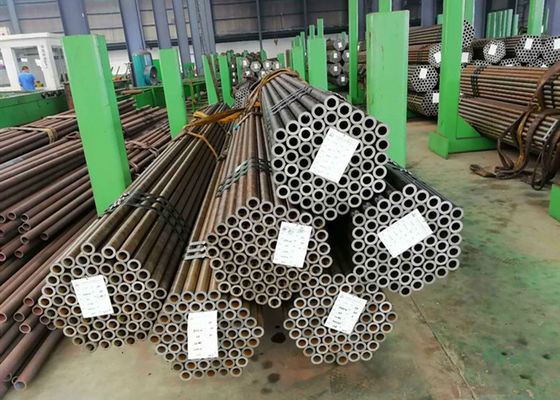

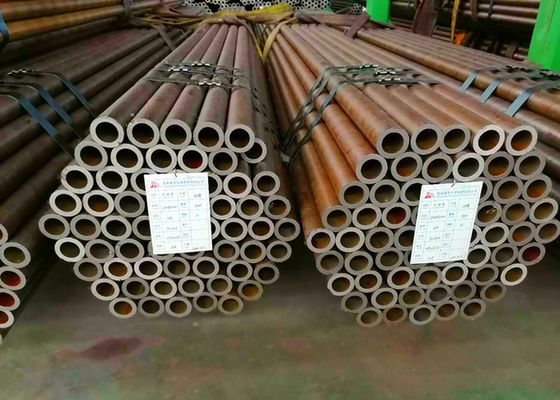

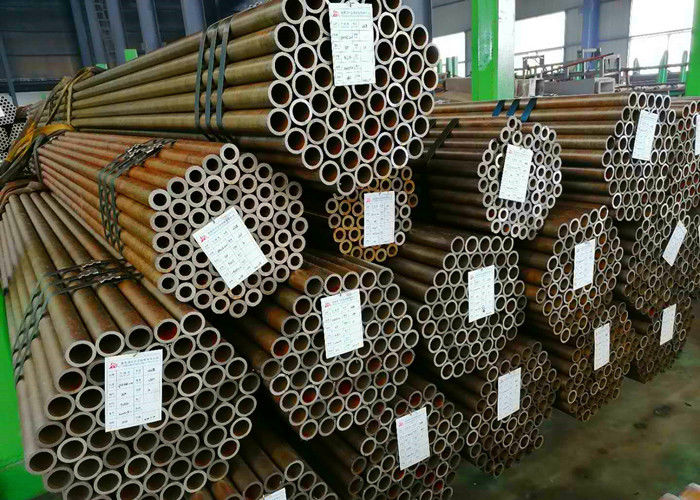

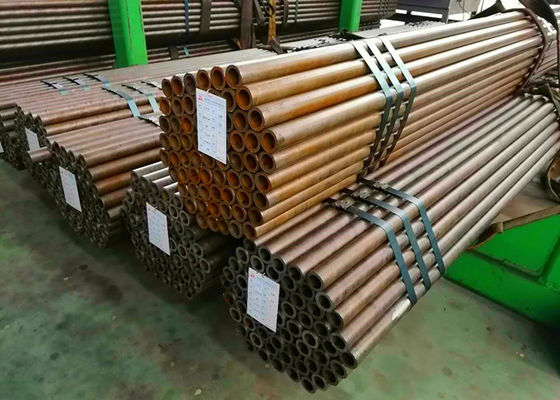

SA179SMLS Carbon Steel Sa 179 Seamless Tube Untuk Tekanan Boiler Tekanan Menengah Rendah Tinggi
Product Details
| Nama Produk: | Tabung Boiler Baja Karbon Seamless | Aplikasi: | Untuk ketel bertekanan tinggi dan menengah, dan tujuan tekanan |
|---|---|---|---|
| Standar: | A179, SA179 | Teknik: | Mulus |
| Bentuk bagian: | Bulat | Bahan: | Baja karbon |
| Menyoroti |
Tabung Tekanan Boiler SA179SMLS,Tabung Seamless SA179SMLS,Tabung Seamless Baja Karbon Sa 179 |
||
Product Description
Tabung Baja Karbon A179 / SA179SMLS Untuk Boiler Tekanan Tinggi, Menengah, Rendah Dan Tujuan Tekanan
Tabung Baja Karbon A179 / SA179SMLS Untuk Boiler Tekanan Tinggi, Menengah, Rendah Dan Tujuan Tekanan
Detailnya:
Standar: ASTM A179 / SA179SMLS
Ukuran: (mm)
Dimensi Luar: 12.7mm - 114.3mm
Ketebalan Dinding: 0.8mm - 15mm
Panjang: Tetap (6m, 9m, 12,24m) atau panjang normal (5-12m)
Deskripsi:
ASTM ASTM A179, A179SMLS
Tabung Boiler Baja Karbon Seamless Untuk Layanan Tekanan Tinggi.
Baja grde:
Kelas A
Pengepakan:
Miring / lukisan hitam / tutup plastik / dalam bundel / strip baja / pelindung kayu
Inspeksi dan Tes:
Pemeriksaan Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Luluh, Pemanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Nodestruktif, Uji Hidrostatis.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Menandai:
Seperti yang diminta.
Kondisi pengiriman:
Anil, Normalisasi, Normalisasi dan Tempered
Komposisi kimia:
| Produk | Ttem | Kelas | Komposisi kimia | |||||||
| C | Si | M N | P.≤ | S.≤ | Kr | Ni | orang lain | |||
| Baja karbon | 1 | 10 | 0,07 / 0,13 | 0,17 / 0,37 | 0,35 / 0,65 | 0,03 | 0,03 | ≤0.15 | ≤0.30 | Cu≤0.25 |
| 2 | 20 | 0,17 / 0,23 | 0,17 / 0,37 | 0,35 / 0,65 | 0,03 | 0,03 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
| 3 | A179 | 0,06 / 0,18 | - | 0,27 / 0,63 | 0,03 | 0,03 | - | - | - | |
| 4 | A192 | 0,06 / 0,18 | ≤0.25 | 0,27 / 0,63 | 0,03 | 0,03 | - | - | - | |
Peralatan mekanis:
| Barang | Menandai | Properti tarik | Kekerasan | ||||
| Kekuatan ekstensi Rm Mpa | Kekuatan luluh lebih rendah Rel atau Rp0,2 MPa | Kekuatan luluh rendah ReL atau Rp0,2 Mpa | |||||
| Ketebalan | Ketebalan | ||||||
| ≤16 | > 16 | <5.1 | ≥5.1 | ||||
| ≥ | ≤ | ||||||
| 1 | 10 | 335 ~ 475 | 205 | 195 | 24 | - | - |
| 2 | 20 | 410 ~ 530 | 245 | 235 | 20 | - | - |
| 3 | A179 | ≥325 | 180 | 35 | - | - | |
| 4 | A192 | ≥325 | 180 | 35 | 77HRB | 137HB | |
Aplikasi:
1, Untuk evaporator, penukar panas, kondensor, peralatan perpindahan panas dan pipa serupa.
2, Banyak digunakan di bidang perawatan mekanik, industri petrokimia, transportasi dan bidang konstruksi
3, Tujuan struktural biasa dan tujuan struktural mekanik, misalnya di bidang konstruksi, bantalan tumpu dll;
4, Pengangkutan cairan dalam proyek dan peralatan besar, misalnya pengangkutan air, minyak, gas dll
5, Dapat digunakan dalam boiler bertekanan rendah dan sedang untuk pengangkutan cairan, misalnya tabung uap, tabung asap besar, tabung asap kecil, tabung pembangkit dll
Inspeksi dan Tes:
Pemeriksaan Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Luluh,
Pemanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Tanpa Perusakan, Uji Hidrostatis.
