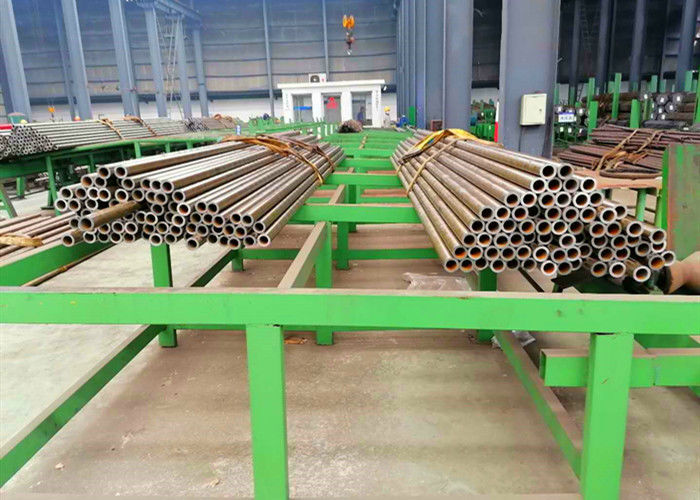

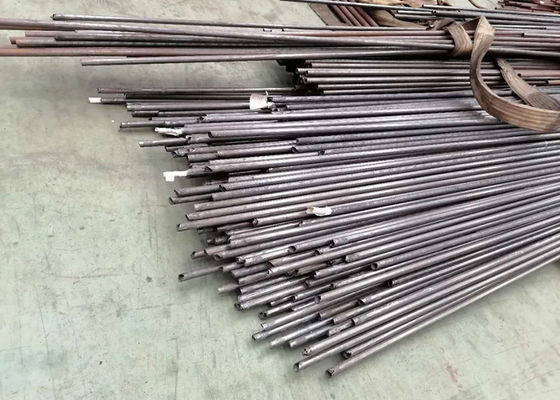

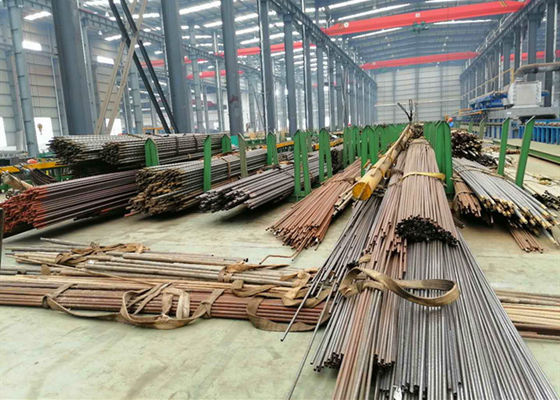

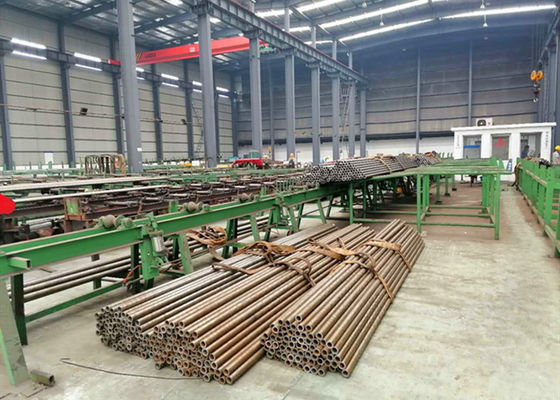

SA213 A213 Alloy Steel Seamless Tube T11 T22 T23 T5 T9 T91 untuk Penukar Panas
Product Details
| Nama Produk: | Tabung baja paduan mulus | Aplikasi: | Boiler, Pemanas Super, Penukar panas |
|---|---|---|---|
| Kelas: | T1, T11, T12, T2, T22, T23, T5, T9, T91, T92 | standar: | ASTM A213 / SMES SA213 |
| Menyoroti |
pipa baja paduan mulus,tabung paduan nikel |
||
Product Description
SA213 / A213 Alloy Steel Tabung Mulus T11 T22 T23 T5 T9 T91 Tabung Penukar Panas
ASTM A213 / ASME SA213 T9 T91 T92 Baja Paduan tabung Mulus untuk Boiler, Superheater, aplikasi penukar panas
HDT memasok sejumlah besar Cr-Mo Alloy pipa dan tabung seamless, dan ekspor lebih dari 35 negara. Tabung seamless alloy kami menjadi lebar yang digunakan dalam boiler dan pemanas.
| Karbon | Chromiun | Suhu rendah | Besi tahan karat | Dupleks | Tembaga & perunggu | Titanium | Ni-Alloy | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | No.200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 MT 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 MT 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 MT 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Ketebalan dinding mm | |||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg / m | |||||||
| 6.35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9.53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12.7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15.88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0,832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
ASTM A213 / ASME SA213 T2, T11, T12, T22, T91, T92 Komposisi Kimia dan Sifat Mekanik
| Kelas | Komposisi kimia% | ||||||||
| C | Si | M N | P, S Max | Cr | Mo | Ni Max | V | Al Max | |
| T2 | 0,10 ~ 0,20 | 0,10 ~ 0,30 | 0,30 ~ 0,61 | 0,025 | 0,50 ~ 0,81 | 0.44 ~ 0.65 | - | - | - |
| T11 | 0,05 ~ 0,15 | 0,50 ~ 1,00 | 0,30 ~ 0,60 | 0,025 | 1,00 ~ 1,50 | 0.44 ~ 0.65 | - | - | - |
| T12 | 0,05 ~ 0,15 | Max 0,5 | 0,30 ~ 0,61 | 0,025 | 0,80 ~ 1,25 | 0.44 ~ 0.65 | - | - | - |
| T22 | 0,05 ~ 0,15 | Max 0,5 | 0,30 ~ 0,60 | 0,025 | 1.90 ~ 2.60 | 0.87 ~ 1.13 | - | - | - |
| T91 | 0,07 ~ 0,14 | 0,20 ~ 0,50 | 0,30 ~ 0,60 | 0,02 | 8.0 ~ 9.5 | 0.85 ~ 1.05 | 0,4 | 0,18 ~ 0,25 | 0,015 |
| T92 | 0,07 ~ 0,13 | Max 0,5 | 0,30 ~ 0,60 | 0,02 | 8.5 ~ 9.5 | 0,30 ~ 0,60 | 0,4 | 0,15 ~ 0,25 | 0,015 |
| Kelas | Komposisi kimia% | Peralatan mekanis | |||||||
| W | B | Nb | N | T. S | Y. P | Pemanjangan | Kekerasan | ||
| T2 | - | - | - | - | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T11 | - | - | - | - | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T12 | - | - | - | - | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW (85HRB) | |
| T22 | - | - | - | - | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T91 | - | - | 0,06 ~ 0,10 | 0,03 ~ 0,07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW (25HRB) | |
| T92 | 1.50 ~ 2.00 | 0,001 ~ 0,006 | 0,04 ~ 0,09 | 0,03 ~ 0,07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW (25HRB) | |
ASTM A213 / ASME SA213 T2, T11, T12, T22, T91, T92 Toleransi
| Diameter luar | Toleransi OD | Toleransi WT | Toleransi Ovalitas | Toleransi Panjang Potong |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15% | - | + 3, 18 mm, - 0 mm |
| 12, 7 mm <OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10% | maks, 1, 65 mm | + 3, 18 mm, - 0 mm |
| 38, 1 mm <OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10% | maks, 2, 41 mm | + 4, 76 mm, - 0 mm |
- T11 Alloy Steel Tube untuk pembangkit listrik, minyak bumi, dan layanan suhu tinggi lainnya
- T22 Alloy Steel Tube untuk pembangkit listrik, minyak bumi, dan layanan suhu tinggi lainnya
- T5 Alloy Steel Tube untuk minyak bumi
- T9 Alloy Steel Tube untuk minyak bumi
- T91 Alloy Steel Tube untuk pembangkit listrik
- T92 Alloy Steel Tube untuk pembangkit listrik
- T1 Alloy Steel Tube untuk penggantian dan perbaikan boiler
- SA209 T1 tube untuk Boiler Pembuatan
- ASTM A213 / ASME SA213 T5 Alloy Steel Tube untuk Superheaters
- ASTM A213 / ASME SA213 T5 Alloy Steel Tube untuk Penukar Panas
