ASME SB677 UNS N08904 Tabung Boiler Mulus TP904L Permukaan Acak Annealed
Product Details
| Bahan: | UNS NO8904 / 904L | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | 6.00mm hingga 101.6mm | WT: | 0,5mm hingga 8mm |
| Menyoroti |
tabung baja dilas,tabung ketel stainless steel |
||
Product Description
ASME SB677 UNS N08904 Tabung Mulus Stainless Steel TP904L Untuk Boiler ke Asia Tenggara.
Teknologi Energi Hua Dong deals with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. berurusan dengan Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy, Monel, Inconel, Incoloy) pipa dan tabung mulus dan dilas sudah lebih dari 35 tahun, setiap tahun menjual lebih dari 50.000 ton pipa baja dan tabung. Our client already cover more than 30 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And o Klien kami sudah mencakup lebih dari 30 negara, Seperti Italia, Inggris, Gernmany, AS, Kanada, Chili, Kolombia, Arab Saudi, Rusia, Korea, Singapura, Austrial, Polandia, Prancis, .... DanPerusahaan cabang dan pabrik cabang kami telah disetujui oleh:ABS, DNV, GL, BV, PED 97/23 / EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Kelas bahan:
| Standar Amerika |
Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316L, TP316L, TP316H, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Paduan nikel: UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400 Lainnya:TP405, TP409, TP410, TP430, TP439, ... |
| Standar Europen | 1.4301.1.4307.1.4948.1.4541.1.4878.1.4550.1.4401.1.4404.1.4571.1.4438, 1.4841.1.4845.1.4539.1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia |
08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т, 08Х17Н15Т, 08Х17Н15М3Т, 12 hingga 088 hari, 22, 22, 22, 19, 19, 19, 19, 08, 08, 08, 08, 08, 10 |
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Ketebalan dinding mm | |||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg / m | |||||||
| 6.35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9.53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12.7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15.88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0,832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
| Bentuk Tube: Lurus & U-bend & Bersirip & Digulung | |||||||||
| Tabung Baja Stainless: A / SA213, A / SA249, A / SA268, A / SA269, A / SA789, EN10216-5, A / SA688, B / SB163, JIS-G3463, GOST9941-81. | |||||||||
| Tabung Baja Karbon & Paduan: A / SA178, A / SA179, A / SA192, A / SA209, A / SA210, A / SA213 | |||||||||
Beberapa tes kualitas yang kami lakukan meliputi:
| Uji Korosi | Dilakukan hanya ketika diminta secara khusus oleh klien |
| Analisis kimia | Tes dilakukan sesuai standar kualitas yang disyaratkan |
| Pengujian Merusak / Mekanis | Tensile | Tarik | Hardness | Kekerasan | Flattening | Meratakan | Flare | Flare | Flange Penghubung jalur pipa |
| Reverse-bend and Re. Reverse-bend dan Re. flat tests tes datar | Dilakukan dengan kepatuhan penuh dengan standar & norma ASTM A-450 dan A-530 yang relevan, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di ujung pelanggan |
| Eddy Current Testing | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatik | Pengujian Hidrostatik 100% dilakukan sesuai dengan ASTM-A 450 norma untuk memeriksa kebocoran tabung, dan tekanan terbesar kami dapat mendukung 20Mpa / 7s. |
| Uji Tekanan Udara Di Bawah | Untuk memeriksa bukti kebocoran udara |

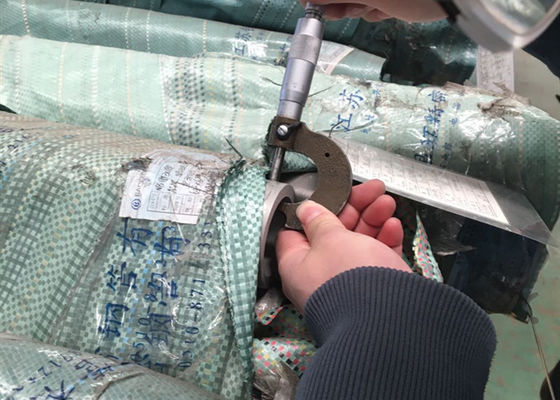

| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa harus melalui inspeksi visual menyeluruh oleh staf terlatih untuk mendeteksi cacat permukaan & ketidaksempurnaan lainnya. |
Pengujian Tambahan: Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. Terlepas dari tes yang disebutkan di atas, kami juga melakukan pengujian tambahan produk yang diproduksi. The tests conducted under this include: Tes yang dilakukan di bawah ini meliputi:
|
|
|
