321 Tabung Stainless Seamless / SS Pipa Seamless Dukungan Industri Cairan Gas
Product Details
| Bahan: | 1.4301, 1.4306, 1.4307, 1.4435, 1.4404 | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | OD: 1/8 "hingga 10" | Ketebalan: | SCH10-SCH160 |
| Menyoroti |
tabung baja dilas,tabung ketel stainless steel |
||
Product Description
321 tabung mulus stainless steel, pipa dan tabung SS mulus
321 tabung mulus stainless steel
kelas: 304 / 304l.316; 316L, 310S, 321.904L
OD: 1/8 "hingga 10"
Ketebalan: SCH10-SCH160
Panjangnya: 6m-11m
Deskripsi:
| Komoditas | Pipa Stainless Steel / Welded Steel Tube / Pipa Baja Seamless | |||
| Bahan | 321 | |||
| Standar | GB | JIS | ASTM / ASME | KERIUHAN |
| 20Cr25Ni20 | SUS310H | 310H | 1.4821 | |
| Komposisi kimia | C | M N | P | S |
| ≤ 0,04 ~ 0,10 | ≤ 2,00 | ≤ 0,040 | ≤ 0,030 | |
| Si | Cr | Rm≥ | Ni | |
| ≤ 0,075 | 24.00 ~ 26.00 | 515MPa | 19.00 ~ 22.00 | |
| Ukuran | (0,2-30) * (4-610) | |||
| Panjangnya | 1000mm-6000mm, atau sebagai permintaan pelanggan | |||
| Permukaan | BA / 2B / NO.1 / TIDAK.3 / TIDAK.4 / 8K / HL | |||
| pembuatan | Hot Rolled / Cold Rolled | |||
| Kualitas | Kualitas tinggi.Inspeksi SGS diterima jika diperlukan | |||
| Aplikasi | Bahan makanan, gas, metalurgi, biologi, elektron, kimia dll | |||
| Catatan | Kami juga bisa mengerjakan materi lainnya | |||
Aplikasi:
321 pipa baja stainless pipa baja seamless (GB3087-1999) digunakan dalam pembuatan berbagai struktural boiler tekanan rendah superheated boiler menengah, pipa air dan boiler lokomotif pipa uap superheated, pipa, pipa kecil dan karya bata lengkung dari karbon berkualitas tinggi struktural steel hot rolling dan cold drawing (rolling) tabung baja seamless.
321 pipa stainless steel: terutama digunakan dalam pembuatan pipa steam boiler tekanan tinggi dan tekanan tinggi, dll. Dengan baja struktural karbon berkualitas tinggi, baja paduan dan baja tahan karat stainless steel tube, tabung boiler oleh pihak di bawah suhu tinggi dan pipa bertekanan tinggi dan bekerja pada gas buang dan uap suhu tinggi akan terjadi di bawah aksi oksidasi dan korosi, sehingga pipa baja dengan kekuatan pecah tinggi, ketahanan oksidasi tinggi, dan memiliki stabilitas organisasi yang baik, penyangga hidrolik.
Spesifikasi:
Komposisi Kimia
| C | Si | M N | P | S | Cr | Ni | Mo | Ti |
| 0,08 | <= 1,00 | <= 2.00 | <= 0,035 | <= 0,03 | 17.00-19.00 | 9.0-12.0 | 2.0-3.0 | ≥5 × C% |
Peralatan mekanis
| Kekuatan tarik sigma b (MPa): p.520 |
| Kondisi untuk menghasilkan kekuatan sigma (0,2 MPa): p.205 |
| Delta pemanjangan (%): 40 atau lebih tinggi |
| Pengurangan bit area (%): 50 atau lebih |
| Kekerasan: 187 hb atau kurang;90 HRB atau kurang;200 hv atau kurang |

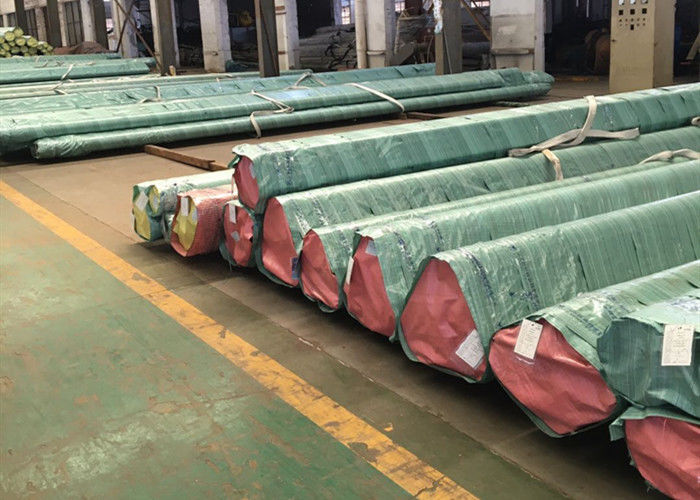

kita bungkus pipa kita dengan kertas tahan air, lalu kita masukkan barang-barang ini ke dalam kotak kayu.panjang pipa kami adalah 6-11m, jadi kami anjurkan memuat pipa kami dengan membeli 40GP kontainer.

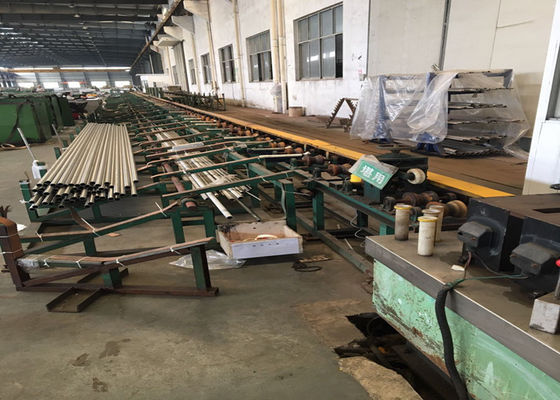

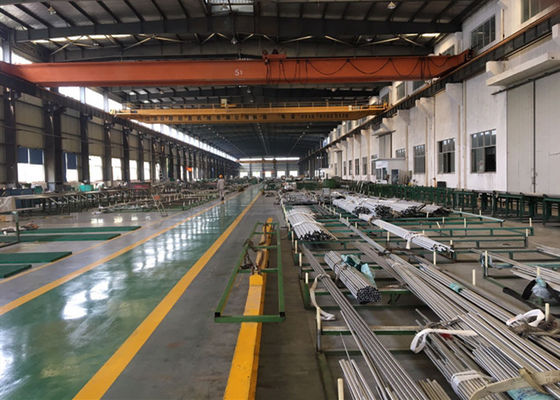

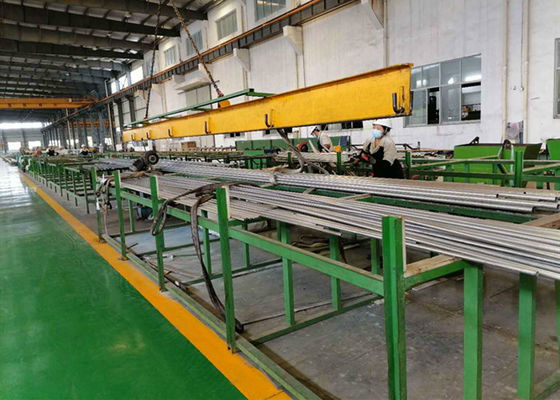

Di sini adalah gambar dari kami
