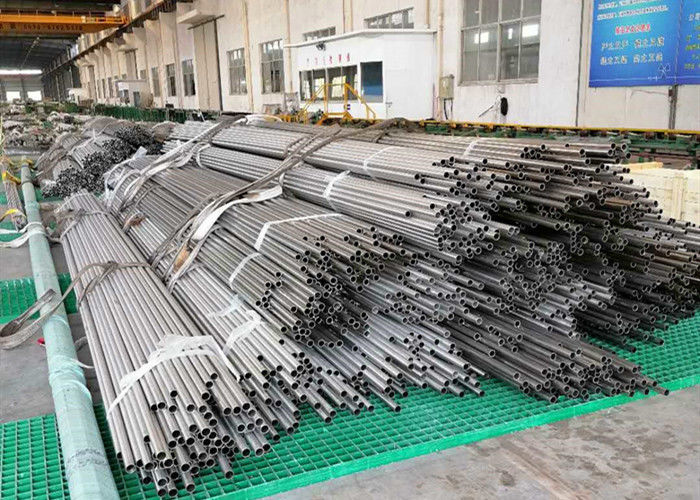

Panas Jadi Pipa Stainless Steel Seamless Astm A312 Tp316ti B16.10 B16.19 Pe Be
Product Details
| Bahan: | TP316, TP316L, TP316Ti, TP316LN, TP316H, TP316 / 316L, 1.4404, 1.4436, 1.4406 | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | 6.00mm hingga 850mm | WT: | 0,5mm hingga 52mm |
| Menyoroti |
ss tabung mulus,astm pipa stainless steel |
||
Product Description
Pipa Stainless Steel Mulus, ASTM A312 TP316Ti, B16.10 & B16.19 ,, 6M, PE / BE, PERMUKAAN SELESAI PANAS
Spesifikasi standar:
ASTM A213 / A213M - 11a: Spesifikasi Standar untuk Boiler Baja Seamless dan Austenitic Alloy-Steel, Superheater, dan Heat-Exchanger
ASTM A269 - 10: Spesifikasi Standar untuk Pipa Stainless Steel Austenitic Seamless dan Welded untuk Layanan Umum
ASTM A312 / A312M - 12: Spesifikasi Standar untuk Pipa Stainless Steel Austenitic Seamless, Welded, dan Heavily Cold Worked
ASTM A511 / A511M - 12: Spesifikasi Standar untuk Tubing Mekanik Stainless Steel Seamless
ASTM A789 / A789M - 10a: Spesifikasi Standar untuk Tubing Stainless Steel Ferritic / Austenitic Stainless Seamless untuk Layanan Umum
ASTM A790 / A790M - 11: Spesifikasi Standar untuk Pipa Stainless Steel Seamless dan Ferritic / Austenitic
DIN 17456-2010: TABUNG BAJA STAINLESS STEEL MURAH TUR MURAH UMUM.
DIN 17458-2010: Edaran Mulus Tabung Baja Stainless Austenitik
EN10216-5 CT 1/2: Pipa & Tabung Mulus Stainless Steel
GOST 9941-81: TABUNG KERJA DINGIN DAN KERJA YANG TIDAK MUDAH YANG DIBUAT DARI BAJA TAHAN KOROSI.
Lainnya seperti BS, standar JIS atau dapat memasok
Kelas bahan:
| Standar Amerika |
Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316L, TP316L, TP316H, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Lainnya:TP405, TP409, TP410, TP430, TP439, ... |
| Standar Europen | 1.4301.1.4307.1.4948.1.4541.1.4878.1.4550.1.4401.1.4404.1.4571.1.4438, 1.4841.1.4845.1.4539.1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia | 08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т, 08Х17Н15Т, 08Х18Н108, 21, 22, 22, 22, 22, 22, 22, 19, 19, 08, 08, 08, 09, 08, 08 |
Rentang ukuran:
| Produksi | Diameter luar | Ketebalan dinding |
| Pipa seamless | 6.00mm hingga 850mm | 0,5mm hingga 52mm |
Final Finishing:
Solusi Anil & Acar
Tingkat ini sangat berguna dalam aplikasi tabung kontrol dan instrumentasi di mana 316 dan 317L tidak cocok.
Bentuk produk tabung yang tersedia
- Lurus
- Melingkar
- Mulus
Aplikasi Khas
- Peralatan pendingin air laut
- Pemrosesan kimia untuk asam sulfat, fosfat dan asetat
- Pencucian gas
- Tabung kondensor
- Kontrol dan instrumentasi
- Penukar panas
Spesifikasi manufaktur yang khas
- ASTM A213
- ASTM A269
- ASTM A312
- BS EN 10216 hal.5
- Juga spesifikasi pelanggan individu.
Industri sebagian besar menggunakan grade ini
- Pengolahan kimia
- Minyak dan gas
- Farmasi
DATA TEKNIS
Peralatan mekanis
| Melunakkan | Anil | |
|---|---|---|
| Tarik Tm | 71 | ksi (min) |
| Tarik Tm | 490 | MPa (min) |
| Hasil Rp2,2% | 32 | ksi (min) |
| Hasil Rp2,2% | 220 | MPa (min) |
| Perpanjangan (2 "atau 4D gl) | 35 | % (min) |
Properti Fisik (Suhu Kamar)
| Panas Spesifik (0-100 ° C) | 450 | J.kg-1. ° K-1 |
| Konduktivitas termal | 11.5 | Wm -1. ° K-1 |
| Ekspansi termal | 15.8 | mm / m / ° C |
| Elastisitas Modulus | 190 | IPK |
| Tahanan listrik | 9.52 | μohm / cm |
| Massa jenis | 7.95 | g / cm3 |
Komposisi Kimia (% berat)
| Elemen | Min | Maks |
|---|---|---|
| C | - | 0,2 |
| M N | - | 2 |
| Ni | 23 | 28 |
| Cr | 19 | 23 |
| S | - | 0,3 |
| Mo | 4 | 5 |
| N | - | 0,1 |
| Cu | 1 | 2 |
| P | - | 0,03 |
| Si | - | 0,7 |
