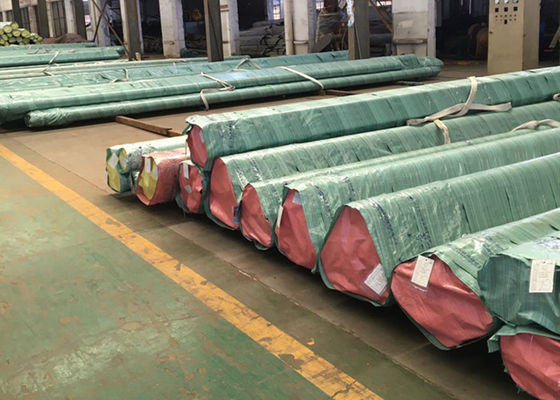

Tabung Boiler Baja Karbon dilas ASTM A214 ASME SA214 A178 GR A GR C A179 A192 A209 A210
Product Details
| Bahan: | A53 (A, B), A106 (B, C), 16Mn, St37, St52, St37-2, Q235, Q345 | Selesai: | Anil, Normalisasi, Normalisasi dan Marah |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Sertifikat: | ASME, TUV, SGS, CE, ISO9001, GRADE A |
| Bentuk: | pipa dilas | ||
| Menyoroti |
cs erw pipa,tabung baja ditarik dingin |
||
Product Description
ASTM A214 ASME SA214 dilas Tube Carbon Steel Boiler, ASTM A214 ASME SA214 dilas Tube Carbon Steel Boiler, A178, GR.A, GR.C, A179, A192, A209, A210, A213
Aplikasi: Untuk ketel bertekanan dan tekanan tinggi, sedang, rendah
Standar produksi, kelas, baja no:
ASTM A178 Grade A, C, D
ASTM A179 Grade A, C, D
ASTM A192
ASTM A210 GradeA-1, C
BS3059-Ⅰ 320 CFS
BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2
EN10216-1 P195TR1 / TR2, P235TR1 / TR2, P265TR1 / TR2
EN10216-2 P195GH, P235GH, P265GH, TC1, TC2
DIN17175 ST35.8, ST45.8
DIN1629 ST37.0, ST44.0, ST50.0
JIS G3454 STPG370, STPG410
JIS G3461 STB340, STB410, STB440
GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB
GB9948 10, 20, 12CrMo, 15CMo
GB3087 10, 20
Kondisi pengiriman:Anil, Normalisasi, Normalisasi dan Marah
Inspeksi dan Tes:
Inspeksi Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Yield,
Pemanjangan, Pembakaran, Perataan, Bending, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Tidak-destruktif, Uji Hidrostatik.
Pengobatan permukaan:
Celupkan minyak, Pernis, Pasifasiasi, Fosfat, Peledakan Tembakan
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||||
| Diameter luar | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Ketebalan dinding mm | |||||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | inci | Berat kg / m | |||||||||
| 6.35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||||
| 9.53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||||
| 12.7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||||
| 15.88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0,667 | 0,832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Bentuk tabung: Lurus & U-membungkuk & Bersirip & Digulung | |||||||||||
