Resistan listrik Dilas Pipa / Cs Erw Pipa SA178 Grade Untuk Penukar Panas Boiler
Product Details
| Bahan: | Tabung Las Baja Karbon | Selesai: | Anil, Normalisasi, Normalisasi dan Marah |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Sertifikat: | ASME, TUV, SGS, CE, ISO9001, |
| Bentuk: | pipa dilas | ||
| Menyoroti |
pipa baja spiral,tabung baja dingin |
||
Product Description

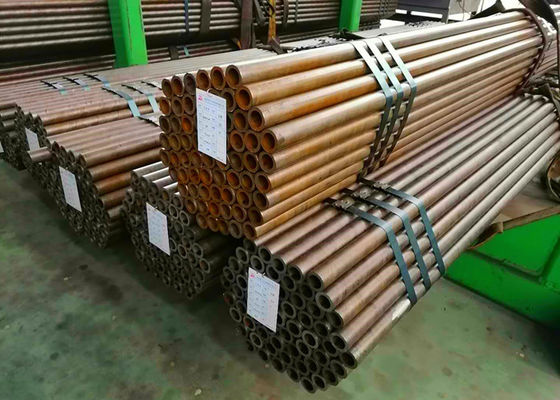

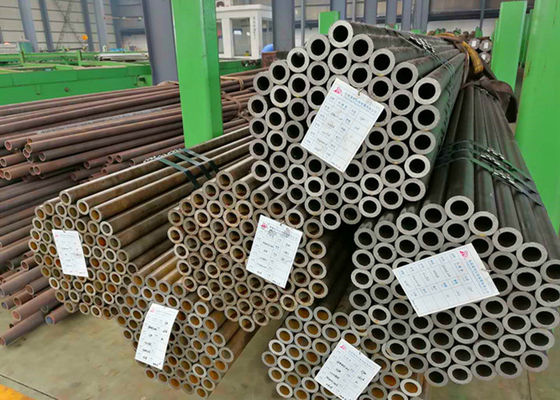

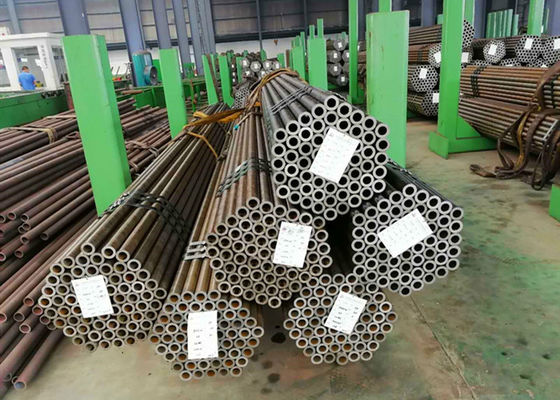

Pipa Baja Las Tahan Listrik, SA178 Grade Carbon Steel Welded Pipe
Nama produk: SA178 Kelas ACD Listrik Resistance Welded Carbon Steel Pipe Boiler dan Superheater Tabung
Kisaran Ukuran: OD: 12.7-127mm, WT: 0.9-9.1mm, Panjang: 5.8m / 6m, maksimal 11.8m
Aplikasi: Untuk Boiler, Superheaters, Heat-Exchanger, Condensers, Flare Boiler, Flare Superheater, dan Ujung Aman
Perawatan panas:
Setelah pengelasan, semua tabung diperlakukan panas pada suhu 1650 ℉ (900 ℃) atau lebih tinggi dan diikuti oleh pendinginan di udara atau di ruang pendingin tungku atmosfer yang terkontrol.
Cold-Drawn tubes diberi perlakuan panas setelah cold-draw pass akhir pada suhu 1200 ℉ (650 ℃) atau lebih tinggi.
Kontrol kualitas:
1. Pemeriksaan Bahan Baku Yang Masuk
2. Segregasi Bahan Baku untuk menghindari campur aduk baja
3. Pemanasan dan Ujung Palu untuk Menggambar Dingin
4. Cold Drawing atau Cold Rolling, On line inspection
5. Perawatan Panas
6. Penegakan / Pemotongan dengan panjang tertentu / Inspeksi Pengukuran Jadi
7. Pengujian Kualitas di laboratorium sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Pemanjangan, Kekerasan, Kelurusan, dll.
8. Pengepakan dan Stocking.
100% Eddy Current Testing.
Memeriksa Toleransi Ukuran 100%.
Pemeriksaan permukaan tabung 100% untuk menghindari cacat permukaan.
| nama Produk | SA178 Perlawanan Listrik Dilas Tabung Baja Karbon Boiler |
| Bahan | Kelas A, Kelas C, Kelas D |
| Kondisi pengiriman | Perawatan panas |
| Standar | SA178 |
| Aplikasi | Penukar panas, Kondensor dan peralatan transfer panas serupa |
| Sertifikat | ISO 9001 |
| Kode HS | 7304319000 |
| Waktu pengiriman | 40 hari |
| Pengepakan | Bundel atau Kotak Kayu |
Sifat kimia
| Elemen | Grade A, Baja Cabon Rendah | Grade C, Baja Karbon-Menengah |
Kelas D, Baja Karbon-Mangan |
|
| Karbon | 0,06-0,18 | 0,35 Maks | 0.27Max | |
| Mangan | 0,27-0,63 | 0.80Max | 1,00-1,50 | |
| Fosfor, Maks | 0,035 | 0,035 | 0,030 | |
| Belerang, Max | 0,035 | 0,035 | 0,015 | |
| Silikon | - | - | 0,10 mnt | |
| Peralatan mekanis | Kelas A | Kelas C | Kelas D | |
| Kekuatan Tarik: min ksi (Mpa) | 47 (325) | 60 (415) | 70 (485) | |
| Titik Hasil: min ksi (Mpa) | 26 (180) | 37 (255) | 40 (275) | |
| Pemanjangan | ≥35% | ≥30% | ≥30% | |
