Ss Thin Wall Stainless Steel Pipe Daya Tahan Tinggi Untuk Penukar Panas
Product Details
| Bahan: | 1.4301 1.4307 1.4401 1.4404 1.4571 1.4438, TP304, TP304L, TP304H, TP304N, TP309S, TP310S, TP310H, TP | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | Penukar panas, Boiler, Kondensor, energi, industri petrokimia, pertambangan, gas dan fluida | Bentuk: | Coil, U menekuk, lurus |
| OD: | 6.00mm hingga 630mm | WT: | 0,5mm hingga 52mm |
| Menyoroti |
tabung baja stainless mulus,astm pipa baja stainless |
||
Product Description
Pipa Mulus Stainless Steel, Acar, Padat, Anil ASTM A269 TP304, ASME SA269 TP304L
TIDAK ADA APOYARLES ENCANTARíA EN LENGUA ESPAÑOLA SI TIENEN CUALQUIER REQUERIMIENTO RELATIVO!
Teknologi Energi Hua Dongmemiliki lebih dari 35 tahun pengalaman untuk pipa penukar panas / pipa boiler / pipa pendingin,
Produk utama kami: Pipa Paduan Stainless / Dupleks / Nikel:
1> .A:Tahan karat Kelas Baja: TP304 / 304L / 304H, TP310S / 310H, TP316 / 316L / 316Ti / 316H, TP317L / 317LN, TP321 / 321H, TP347 / 347H, NO8904 (904L),
B:PH Stainless Baja: 17-4PH (1.4542), 17-7PH (1.4568), 15-7PH (1.4532)
C:Dupleks Tingkat Baja: S31803 (2205), S32750 (2507), S32760, S32304, S32101, S31254 (254Mo), 235Ma, UNS NO8926, NO8367.
D:Paduan nikel Kualitas baja:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400.401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Nikel murni:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103, NS3105.
2>. 2>. Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,... Standar: ASTM A213, A249, A269, A312, A789, A790, B163, B167, B444, B677, ... dan ASME, DIN, EN, JIS, BS, GOST, ...
3>. 3>. Out diameter sizes range: 0.5mm~650mm. Kisaran ukuran diameter out: 0.5mm ~ 650mm. Wall thickness:0.05mm~60mm. Ketebalan dinding: 0.05mm ~ 60mm. Max. Maks. length under 26 meters/PC. panjangnya di bawah 26 meter / PC.
4>. 4>. Seamless & welded, Solution Pickling/Bright Annealed / Polished. Seamless & welded, Solution Pickling / Bright Annealed / Dipoles.
Produk keuntungan: (Boiler & Penukar Panas & Pipa Kondensor):
ASTM A213 (TP304, TP304L, TP304H, TP310S, TP316L, TP316Ti, TP317 / L, TP321 / H, TP347 / H)
ASTM A249 (TP304, TP304L, TP316L, TP321 / H)
ASTM A789 (S31803 (2205), 32750 (2507), S31254 (254MO), S32304)
ASTM B163 / B167 / B444 untuk Pipa Baja Nikel
ASTM B677 UNS NO8904 (904L)
ASTM B111 (70400, C70600, C71500, C71640, C68700, C44300)
Standar Lainnya: EN10216-5, DIN 17456, DIN17458, GOST9941-81, JIS-G3459, JIS-G3463
| Kelas | Bahan jumlah |
C | Si | M N | P | S | N | Cr | Mo | Ni | Ti | lainnya |
| Baja feritik atau martensit | ||||||||||||
| X2CrTi12 | 1.4512 | 0,030 |
1,00 | 1,00 | 0,040 | 0,015 | 10.50 hingga 12.50 | 6 × (C + N) hingga 0,65 | ||||
| X6CrAl13 | 1.4002 | 0,08 |
1,00 | 1,00 | 0,040 | 0,015 | 12.00 hingga 14.00 | 0.10 hingga 0.30Al | ||||
| X6Cr17 | 1.4016 | 0,08 |
1,00 | 1,00 | 0,040 | 0,015 | 16.00 hingga 18.00 | |||||
| X3CrTi17 | 1.4510 | 0,05 |
1,00 | 1,00 | 0,040 | 0,015 | 16.00 hingga 18.00 | 4 × (C + N) +0,15 hingga 0,80 | ||||
| X12Cr13 | 1.4006 | 0,08 hingga 0,15 | 1,00 | 1,50 | 0,040 | 0,015 | 11.50 hingga 13.50 | 0,75 |
||||
| Baja Austenitik | ||||||||||||
| X5CrNi18-10 | 1.4301 | 0,07 |
1,00 | 2,00 | 0,045 | 0,015 | 0,11 |
17.00 hingga 19.50 | 8.00to10.50 | |||
| X2CrNi19-11 | 1.4306 | 0,030 |
1,00 | 2,00 | 0,045 | 0,015 | 0,11 |
18.00 hingga 20.00 | 10.00 hingga 12.00 | |||
| X2CrNiN18-10 | 1.4311 | 0,030 |
1,00 | 2,00 | 0,045 | 0,015 | 0.12to0.22 | 17.00 hingga 19.50 | 8.50 hingga 11.50 | |||
| X6CrNiTi18-10 | 1.4541 | 0,08 |
1,00 | 2,00 | 0,045 | 0,015 | 17.00 hingga 19.00 | 9.00 hingga 12.00 | 5 × C hingga 0,70 | |||
| X6CrNiNb18-10 | 1.4550 | 0,08 |
1,00 | 2,00 | 0,045 | 0,015 | 17.00 hingga 19.00 | 9.00 hingga 12.00 | 10 × Cto1.00Nb | |||
| X5CrNiMo17-12-2 | 1.4401 | 0,07 |
1,00 | 2,00 | 0,045 | 0,015 | 0,11 |
16.50to18.50 | 2.00to2.50 | 10.00 hingga 13.00 | ||
| X2CrNiMo17-12-2 | 1.4404 | 0,030 |
1,00 | 2,00 | 0,045 | 0,015 | 0,11 |
16.50to18.50 | 2.00to2.50 | 10.00 hingga 13.00 | ||
| X6CrNiMoTi17-12-2 | 1.4571 | 0,08 |
1,00 | 2,00 | 0,045 | 0,015 | 16.50to18.50 | 2.00to2.50 | 10.50 hingga 13.50 | 5 × C hingga 0,70 | ||
| X2CrNiMoN17-13-3 | 1.4429 | 0,030 |
1,00 | 2,00 | 0,045 | 0,015 | 0.12to0.22 | 16.50to18.50 | 2.50 hingga 3.00 | 11.00 hingga 14.00 | ||
| X2CrNiMo18-14-3 | 1.4435 | 0,030 |
1,00 | 2,00 | 0,045 | 0,015 | 0,11 |
17.00 hingga 19.00 | 2.50 hingga 3.00 | 12.50 hingga 15.00 | ||
| X3CrNiMo17-13-3 | 1.4436 | 0,05 |
1,00 | 2,00 | 0,045 | 0,015 | 0,11 |
16.50to18.50 | 2.50 hingga 3.00 | 10.50 hingga 13.00 | ||
| X2CrNiMoN17-13-5 | 1.4439 | 0,030 |
1,00 | 2,00 | 0,045 | 0,015 | 0.12to0.22 | 16.50to18.50 | 4.00 hingga 5.00 | 12.50 hingga 14.50 | ||
Specifikasi:
ASME SA213/ A213: Spesifikasi Standar untuk Seamless Feritik dan Austenitik Paduan-
Boiler Baja, Superheater, dan Pipa Penukar Panas Stainless Steel.
ASTM A249 / A249M: Spesifikasi Standar untuk Welded Austenitic Steel Boiler, SuperheaterHeat-Exchanger, dan Pipa Kondensor.
Standar lainnya:DIN 17456, DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463, ...
Kelas bahan:
| Standar Amerika |
Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316L, TP316L, TP316H, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Lainnya:TP405, TP409, TP410, TP430, TP439, ... |
| Standar Europen | 1.4301.1.4307.1.4948.1.4541.1.4878.1.4550.1.4401.1.4404.1.4571.1.4438, 1.4841.1.4845.1.4539.1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia | 08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т, 08Х17Н15Т, 08Х17Н15М3Т, 12 hingga 088 hari, 22, 22, 22, 19, 19, 19, 19, 08, 08, 08, 08, 08, 10 |
Ukuran Jarak:
| Produksi | Diameter luar | Ketebalan dinding |
| Tabung Penukar Panas | 6.00mm hingga 630mm | 0,5mm hingga 52mm |
Finishing Akhir
Solusi Anil & Acar/ Bright Annealed.

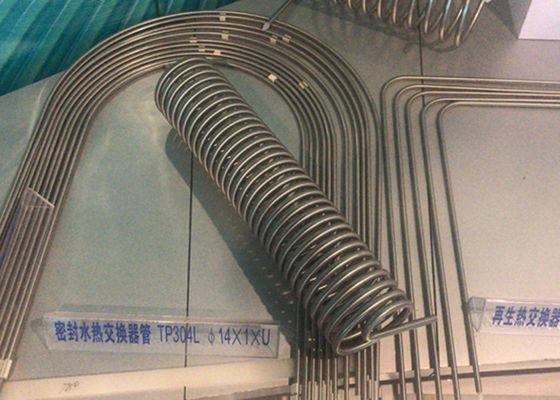

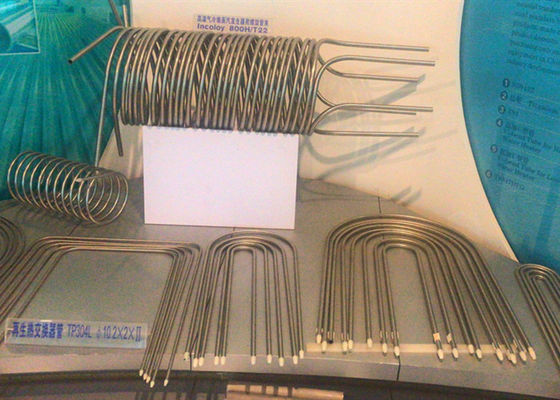

Jenis tabung:
Coil, U-bend & Lurus.
