A213 18 Seamless Tp316l Pipa Stainless Steel Bright Annealed U Bend Lurus
Product Details
| Bahan: | TP304 / 304L, TP316L, TP310S, TP316Ti, TP321 / 321H, TP347 | Selesai: | Anil & Acar |
|---|---|---|---|
| Aplikasi: | Boiler, Economizer, Superheater, Air preheater | Warna: | Disesuaikan |
| OD: | 6.00mm hingga 830mm | WT: | 0,5mm hingga 52mm |
| Menyoroti |
ss tabung mulus,tabung baja stainless mulus |
||
Product Description

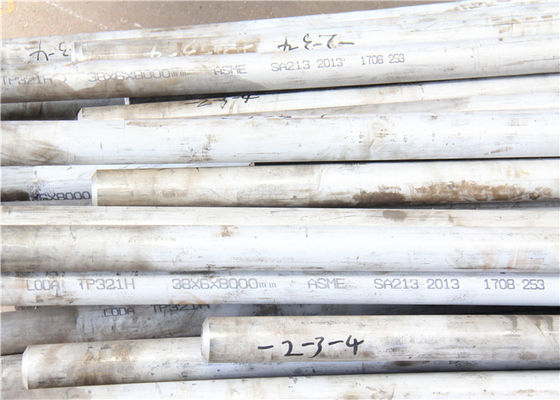

A213-18 TP316L Stainless Steel Seamless Pipe Bright Annealed U-Bend / Lurus
Specifikasi:
ASME SA213/ A213: Spesifikasi Standar untuk Paduan Feritik dan Austenitik Seamless-
Pipa Boiler, Superheater, dan Heat Exchanger Stainless Steel.
ASTM A249 / A249M: Spesifikasi Standar untuk Boiler, Economizer, Air Preheater, Superheater & Reheater,
Heat-Exchanger, dan Pipa Kondensor.
Standar Lainnya:DIN 17456, DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463, ...
Kelas Bahan:
| Standar Amerika |
Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP347
|
| Standar Europen | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia | 08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18,08Х18Н10.08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т1218НН10Т, 12Х18НН10Т, 12Х18НН |
Ukuran Jarak:
| Produksi | Diameter luar | Ketebalan dinding |
| Pipa mulus SS | 6.00mm hingga 830mm | 0,5 mm hingga 52 mm |
Penyelesaian Akhir
Acar / Terang Anil.
Jenis pipa:

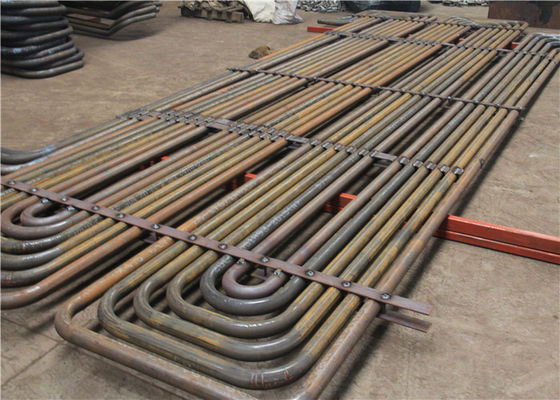

U-bend & Lurus.
Beberapa tes kualitas yang kami lakukan meliputi:
| Uji Korosi | Dilakukan hanya ketika diminta secara khusus oleh klien |
| Analisis kimia | Tes dilakukan sesuai standar kualitas yang disyaratkan |
| Pengujian Merusak / Mekanis | Tarik |Kekerasan |Meratakan |Flare |Penghubung jalur pipa |
| Reverse-bend dan Re.tes datar | Dilakukan dengan kepatuhan penuh dengan standar & norma ASTM A-450 dan A-530 yang relevan, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di ujung pelanggan |
| Pengujian Arus Eddy | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatik | Pengujian Hidrostatis 100% dilakukan sesuai dengan norma ASTM-A 450 untuk memeriksa kebocoran tabung, dan tekanan terbesar kami dapat mendukung 20Mpa / 7s. |
| Uji Udara Di Bawah Tekanan | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa harus melalui pemeriksaan visual menyeluruh oleh staf terlatih untuk mendeteksi kekurangan permukaan & ketidaksempurnaan lainnya |
Pengujian Tambahan: Selain pengujian yang disebutkan di atas, kami juga melakukan pengujian tambahan pada produk manufaktur.Tes yang dilakukan di bawah ini meliputi:
|
|
|
