ASTM A270 Ss Stainless Steel Welded Tubing / Pendidihan Air Round Tube Stainless Steel
Product Details
| Bahan: | TP304 TP304L TP316 TP316L | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 9.5mm hingga 114.3mm | WT: | 0.8mm hingga 3.05mm |
| Menyoroti |
pipa las stainless steel,pipa stainless steel 316L |
||
Product Description

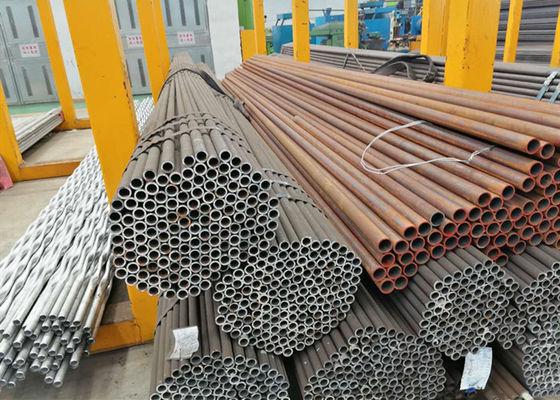

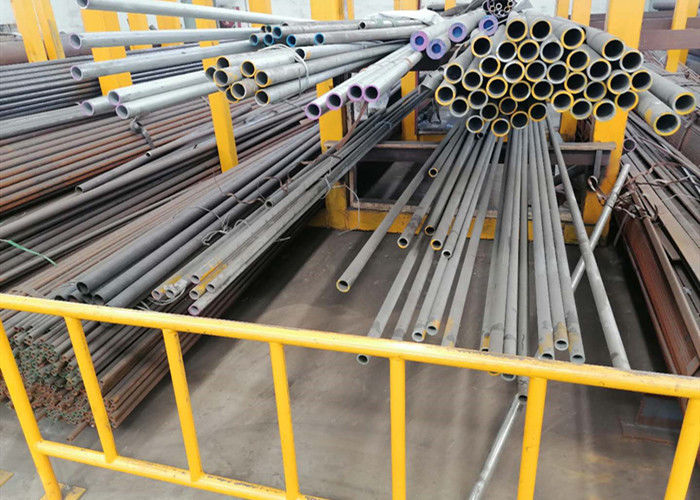

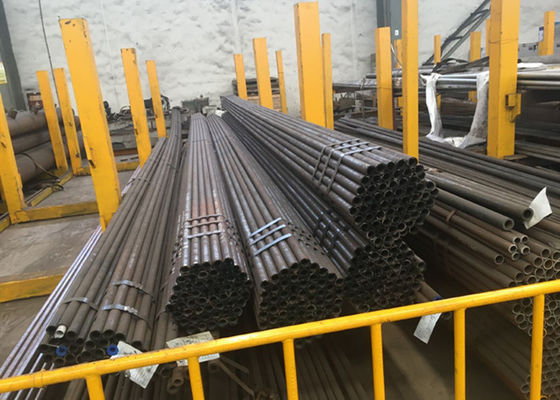

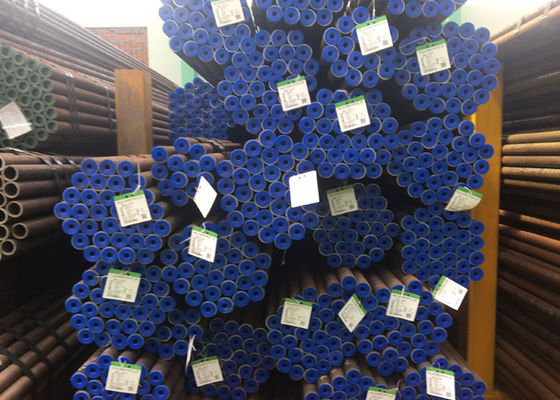

ASTM A270 Ss Stainless Steel Welded Tubing / Stainless Steel Round Tube Water Boiling
Teknologi Energi Hua Dong berurusan dengan pipa dan tabung las stainless steel sudah lebih dari 10 tahun, setiap tahun menjual lebih dari 5000 ton pipa dan tabung stainless steel.Klien kami sudah mencakup lebih dari 45 negara.Pipa dan tabung stainless steel seamless kami banyak digunakan di Pertambangan, Energi, Petrokimia, Industri Kimia, Pabrik Makanan, Pabrik Kertas, Industri Gas dan Cairan dll.
Kelas Bahan:
| Standar Amerika | TP304, TP304L, TP310S, TP316, TP316L, TP316Ti, TP321, TP347, 904L, S31803 dll |
| Standar Eropa | 1.4301, 1.4306, 1.4845, 1.4401, 1.4404, 1.4571, 1.4541, 1.4550, 1.4539, 1.4462 dll |
| Standar Jerman | X5CrNi18-10, X2CrNi19-11, X12CrNi25-21, X5CrNi17-12-2, X5CrNi17-12-3, X2CrNiMo18-14-3, X6CrNiTi18-10, X6CrNiTb18-10 Dll |
1.OD (Diameter Luar): 9,5 mm hingga 114,3 mm
2.WT (Ketebalan Dinding): 0.8mm hingga 3.05mm
3.Panjangnya : Sesuai dengan kebutuhan pelanggan
4.Standar:ASTM A312;ASTM A269;ASTM A789;ASTM A790 dll
5.Metode Proses:ERW, EFW dll
| Aplikasi: | a) Untuk transportasi fluida dan gas |
| b) Struktur dan pemesinan | |
| c) Pipa penukar panas dll | |
| Keuntungan : | a) Permukaan akhir yang superior |
| b) Sifat mekanik yang lebih baik | |
| c) Dimensi yang lebih tepat | |
| d) Metode inspeksi dan peralatan inspeksi yang sempurna | |
| Item harga: | FOB, CFR, CIF atau sebagai negosiasi |
| Pembayaran: | T / T, LC atau sebagai negosiasi |
