ASME SA249 TP316 316L Ss Stainless Steel Dilas Tubing Untuk Minum Proyek
Product Details
| Bahan: | TP304 TP304L TP316 TP316L, 300 Series | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 9.5mm hingga 323.85mm | WT: | 0.8mm hingga 5mm |
| Menyoroti |
Pipa stainless steel 316L,tabung stainless steel duplex |
||
Product Description

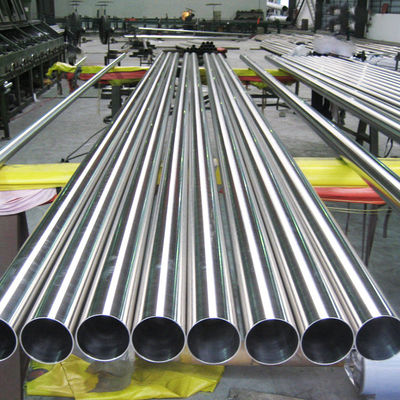

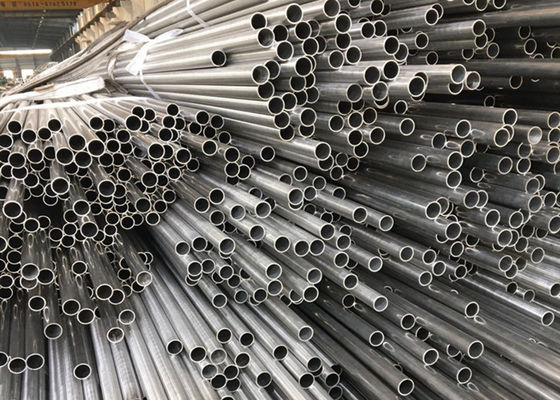

ASME SA249 TP316/316L Tabung Las Stainless Steel Untuk Proyek Minum
Teknologi Energi Hua Dong berurusan dengan pipa dan tabung baja tahan karat yang sudah lebih dari 10 tahun, setiap
tahun menjual lebih dari 5000 ton pipa dan tabung stainless steel.Klien kami sudah mencakup lebih dari 45
negara.Pipa dan tabung mulus stainless steel kami lebar digunakan di Pertambangan, Energi, Petrokimia,
Industri Kimia, Pabrik Makanan, Pabrik Kertas, Industri Gas dan Cairan dll.
1 .OD (Diameter Luar): 9.5mm hingga 323,85 mm
2 .WT ( Tebal Dinding ) : 0.8mm sampai 5mm
3 .Panjangnya : Sesuai dengan kebutuhan pelanggan
4 .Standar:ASTM A312;ASTM A269;ASTM A789;ASTM A790 dll
5 .Metode Proses:ERW, EFW dll
MTSCO adalah produsen terkemuka yang mengkhususkan diri dalam pipa seamless stainless steel, tabung anil cerah, tabung melingkar mulus dll.Untuk memudahkan pelanggan, kami juga memiliki pipa dan tabung yang dilas.MTSCO memiliki peralatan produksi dan pengujian yang paling canggih.Produk kami selalu puas dengan pelanggan.Pelanggan membeli produk kami menciptakan lebih banyak keuntungan.
Standar ASTM A249:
| Ukuran OD | Dinding Nominal | Diameter luar | Panjangnya | Dinding |
| 1/2" (12.7) | 0,065" (1,65)/0,049" (1,25) | +/-0,005 (0,13) | +1/8" (3.18) - 0 | +/-10.0% |
| 3/4" (19.1) | 0,065" (1,65)/0,049" (1,25) | +/-0,005 (0,13) | +1/8" (3.18) - 0 | +/-10.0% |
| 1" (25,4) | 0,065" (1,65)/0,049" (1,25) | +/-0,005 (0,13) | +1/8" (3.18) - 0 | +/-10.0% |
| 1-1/2" (38.1) | 0,065" (1,65)/0,049" (1,25) | +/-0,008" (0,20) | +1/8" (3.18) - 0 | +/-10.0% |
| 2" (50.8) | 0,065" (1,65)/0,049" (1,25) | +/-0,008" (0,20) | +1/8" (3.18) - 0 | +/-10.0% |
| 2-1/2" (63.5) | 0,065" (1,65) | +/-0,010" (0,25) | +1/8" (3.18) - 0 | +/-10.0% |
| 3" (76.2) | 0,065" (1,65) | +/-0,010" (0,25) | +1/8" (3.18) - 0 | +/-10.0% |
| 4" (101.6) | 0,083" (2.11) | +/-0,015" (0,38) | +1/8" (3.18) - 0 | +/-10.0% |
| 6" (152.4) | 0,083" (2.11) | +/-0,030" (0,76) | +1" (25,4) - 0 | +/-10.0% |
| 6" (152.4) | 0,109" (2,77) | +/-0,030" (0,76) | +1" (25,4) - 0 | +/-10.0% |
| 8" (203.2) | 0,109" (2,77) | +0,061" (1,55)/-0,031" (0,79) | +1" (25,4) - 0 | +/-10.0% |
Aplikasi:
a) Untuk transportasi fluida dan gas
b) Struktur dan permesinan
c) Pipa penukar panas dll
| Pengukur Kawat Standar (Sebelumnya Pengukur Kawat Imperial) SWG | |||||
| SWG | Ketebalan dinding | SWG | Ketebalan dinding | ||
| 0 | 0,324 | 8.23 | 21 | 0,032 | 0,81 |
| 1 | 0,3 | 7.62 | 22 | 0,028 | 0,71 |
| 2 | 0.276 | 7.01 | 23 | 0,024 | 0,61 |
| 3 | 0,252 | 6.4 | 24 | 0,022 | 0,56 |
| 4 | 0,232 | 5.89 | 25 | 0,02 | 0,51 |
| 5 | 0.212 | 5.38 | 26 | 0,018 | 0,46 |
| 6 | 0.192 | 4.88 | 27 | 0,0164 | 0,42 |
| 7 | 0,176 | 4.47 | 28 | 0,0148 | 0.38 |
| 8 | 0.16 | 4.06 | 29 | 0,0136 | 0.35 |
| 9 | 0.144 | 3.66 | 30 | 0,0124 | 0.31 |
| 10 | 0,128 | 3.25 | 31 | 0,0116 | 0,29 |
| 11 | 0,116 | 2.95 | 32 | 0,0108 | 0.27 |
| 12 | 0.104 | 2.64 | 33 | 0,01 | 0,25 |
| 13 | 0,092 | 2.34 | 34 | 0,0092 | 0,23 |
| 14 | 0,08 | 2.03 | 35 | 0,0084 | 0.21 |
| 15 | 0,072 | 1.83 | 36 | 0,0076 | 0.19 |
| 16 | 0,064 | 1.63 | 37 | 0,0068 | 0.17 |
| 17 | 0,056 | 1.42 | 38 | 0,006 | 0.15 |
| 18 | 0,048 | 1.22 | 39 | 0,0052 | 0.13 |
| 19 | 0,04 | 1.02 | 40 | 0,0048 | 0.12 |
| 20 | 0,036 | 0,91 | |
||
