TP321 TP347 ASTM A249 Ss Pipa Stainless Steel Dilas / Stainless Steel Sanitary Pipe
Product Details
| Bahan: | TP304 TP304L TP316 TP316L, 300 Series | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 15.9mm hingga 406.4mm | WT: | 0,89mm hingga 5mm |
| Menyoroti |
pipa las stainless steel,pipa stainless steel 316L |
||
Product Description
TP321 / TP347 ASTM A249 Tabung Stainless Steel Dilas, Sanitary Tube Digunakan Dalam Air
Hua Dong Energy Technology berurusan dengan pipa dan tabung baja anti karat yang sudah lebih dari 10 tahun, setiap
year sell more than 5000 tons of stainless steel pipe and tube. tahun menjual lebih dari 5000 ton pipa dan tabung stainless steel. Our client already cover more than 45 Klien kami sudah mencakup lebih dari 45
countries. negara. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Pipa dan tabung mulus stainless steel kami lebar digunakan dalam Pertambangan, Energi, Petrokimia,
Industri Kimia, Pabrik Makanan, Pabrik Kertas, Industri Gas dan Fluida dll.
1 . 1. OD ( Outer Diameter ) : OD (Diameter Luar): 15.9mm hingga 406.4mm
2 . 2. WT ( Wall Thickness ) : WT (Ketebalan Dinding): 0,89mm hingga 5mm
3 . 3. Length : Panjangnya : Sesuai dengan kebutuhan pelanggan
4 . 4. Standards : Standar: ASTM A312; ASTM A312; ASTM A269; ASTM A269; ASTM A789; ASTM A789; ASTM A790 etc ASTM A790 dll
5 . 5. Process Method : Metode proses: ERW, EFW dll
ASTM A249 Standard:
| Ukuran OD | Dinding Nominal | Diameter luar | Panjangnya | Dinding |
| 1/2 "(12.7) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 3/4 "(19.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 1 "(25,4) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 1-1 / 2 "(38.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 2 "(50.8) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 2-1 / 2 "(63.5) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 3 "(76.2) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 4 "(101.6) | 0,083 "(2,11) | +/- 0,015 "(0,38) | +1/8 "(3.18) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,083 "(2,11) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,109 "(2,77) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 8 "(203.2) | 0,109 "(2,77) | +0.061 "(1,55) / - 0,031" (0,79) | +1 "(25,4) - 0 | +/- 10,0% |
Aplikasi:
a) Untuk transportasi fluida dan gas
b) Struktur dan permesinan
c) pipa penukar panas dll
Keuntungan :
a) Permukaan akhir yang unggul
b) Sifat mekanik yang lebih baik
c) Dimensi yang lebih tepat
d) Metode inspeksi sempurna dan peralatan inspeksi
| Syarat & Ketentuan | Barang Harga | FOB, CFR, CIF atau sebagai negosiasi |
| Pembayaran | T / T, LC atau sebagai negosiasi | |
| Waktu pengiriman | 30 hari kerja setelah menerima deposit Anda (Biasanya sesuai dengan jumlah pesanan) | |

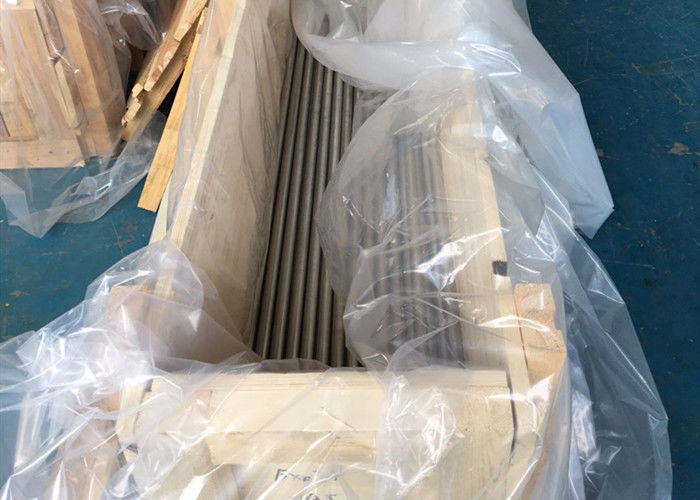

| Paket | Iron case; Kasing besi; woven bag or as per customer's requirement tas anyaman atau sesuai kebutuhan pelanggan | |
| Persyaratan Kualitas | Sertifikat Uji Pabrik akan disertakan dengan pengiriman, Inspeksi Bagian Ketiga dapat diterima | |
| Kualitas | Uji | Sinar-X, Uji ukuran, Uji panjang |
| Analisis Kimia (Photoelectric Emission Spectroscopic) dll | ||
| Pasar | Pasar utama | Europe, Middle East, Southeast Asia, South America. Eropa, Timur Tengah, Asia Tenggara, Amerika Selatan. Etc Dll |
