Tekanan Boiler Kustom Cs Pelat Baja Karbon Lembar Kapal ASTM A516GR 70
Product Details
| Kualitas baja: | A516GR 70 | Selesai: | Plat Baja Canai Panas |
|---|---|---|---|
| Aplikasi: | Boiler Kapal Tekanan | Ketebalan: | 6-500mm |
| Lebar: | 100-3500mm | Bentuk: | Pelat Baja Datar |
| Menyoroti |
plat astm a36,plat baja ringan |
||
Product Description
ASME SA516 kelas pengantar:
SA516 kelas 55, SA516 kelas 60, SA516 kelas 65, SA516 kelas 70. . These 4 grades are mainly defined by their different tensile and yield strength range, which is influenced by content of Carbon. Ke-4 kelas ini terutama ditentukan oleh rentang tarik dan kekuatan luluh yang berbeda, yang dipengaruhi oleh kandungan Karbon. For example sa 516 grade 70 has the highest tensile and yield strength range due to the highest Carbon content(up to0.28%). Misalnya sa 516 grade 70 memiliki rentang kekuatan tarik dan kekuatan luluh tertinggi karena kandungan Karbon tertinggi (hingga 0,28%). For higher grade like sa516 gr-70 steel plate, preheating might be needed for metal arc welding process, especialy with thick steel plate. Untuk grade yang lebih tinggi seperti pelat baja sa516 gr-70, pemanasan awal mungkin diperlukan untuk proses pengelasan busur logam, terutama dengan pelat baja tebal.
Negara pengiriman:

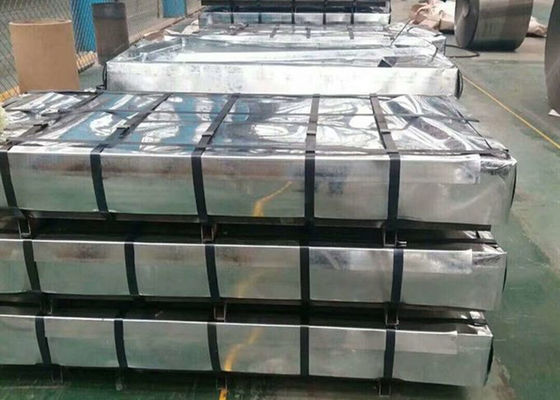

SA516-70n reffers to normalized steel plate product, for steel plate and sheet thinner than 40mm we normally supply them as rolled-steel coil. Mengacu pada produk pelat baja yang dinormalisasi, untuk pelat baja dan lembaran yang lebih tipis dari 40mm biasanya kami menyediakannya sebagai gulungan baja gulungan. Plates with thickness above 40mm are supplied normalized. Pelat dengan ketebalan di atas 40mm disediakan dinormalisasi. SA516 grade 70 kepadatan pelat baja adalah 0,284 cu / in3 (7861 kg / m3).
Tes ringan:

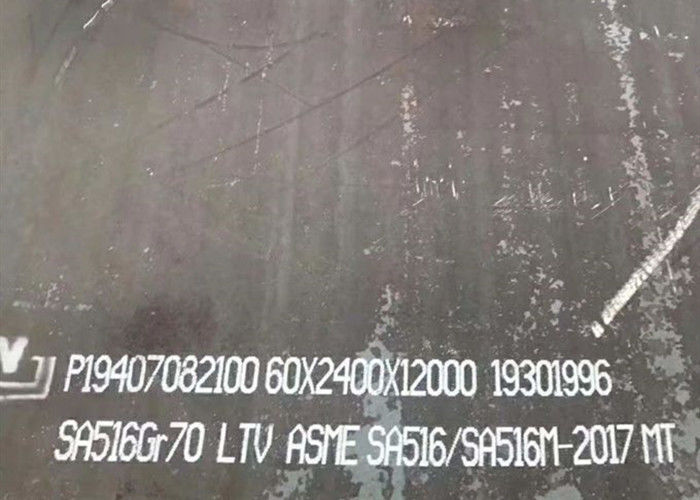

ASME SA 516-pelat baja karbon diproduksi dengan sertifikasi pabrik mengikuti versi standar EN10204 3.1 atau EN10204 3.2.
Inspeksi: MOODY SGS BV GL DNV ABS LIOYD'S Test: X-ray, UT, partikel magnetik, inspeksi.
ASME SA 516 GR.70-55 Komposisi Kimia:
| Komposisi kimia | Maksimum C% untuk ketebalan t (mm) | Mn% untuk ketebalan t (mm) |
Si% | Maks.% |
S% maks |
||||
|---|---|---|---|---|---|---|---|---|---|
| 6-12.5mm | 12.5-25mm | 25-50mm | > 50mm | ≤12.5mm | > 12.5mm | ||||
| ASME A516 Gr 55 |
0,18 | 0,20 | 0,22 | 0,25 | 0,55-0,98 | 0,60-1,30 | 0,13-0,45 | 0,035 | 0,035 |
| ASME A516 Gr 60 | 0,21 | 0,23 | 0,23 | 0,25 | 0,6-0,9 | 0.80-1.20 | 0,13-0,45 | 0,035 | 0,035 |
| ASME A516 Gr 65 |
0,24 | 0,26 | 0,26 | 0,28 | 0.85-1.20 | 0.85-1.20 | 0,13-0,45 | 0,035 | 0,035 |
| ASME A516 Gr 70 |
0,27 | 0,28 | 0,28 | 0,30 | 0.85-1.20 | 0.85-1.20 | 0,13-0,45 | 0,035 | 0,035 |
ASME SA 516 GR.70-55 Properti Mekanik:
| Properti mekanik | Tarik kekuatan (MPa) |
Minimum menghasilkan kekuatan (MPa) |
Panjang pengukur minimum (%) | |
|---|---|---|---|---|
| 50mm | 200mm | |||
| ASME A516 Gr 55 |
380-515 | 205 | 27 | 23 |
| ASME A516 Gr 60 | 415 - 550 | 220 | 25 | 21 |
| ASME A516 Gr 65 |
450 - 585 | 240 | 23 | 19 |
| ASME A516 Gr 70 |
485 - 620 | 260 | 21 | 17 |
