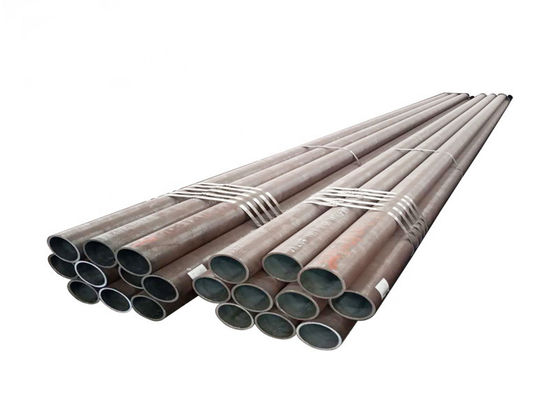

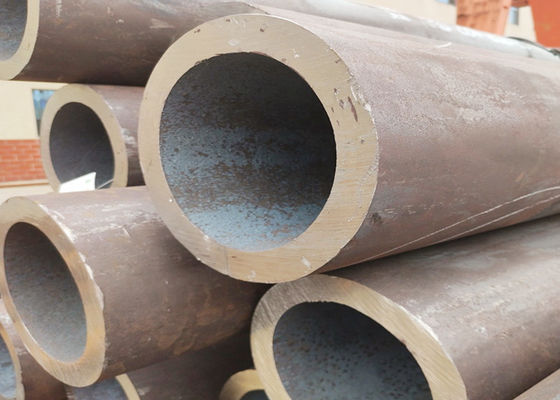

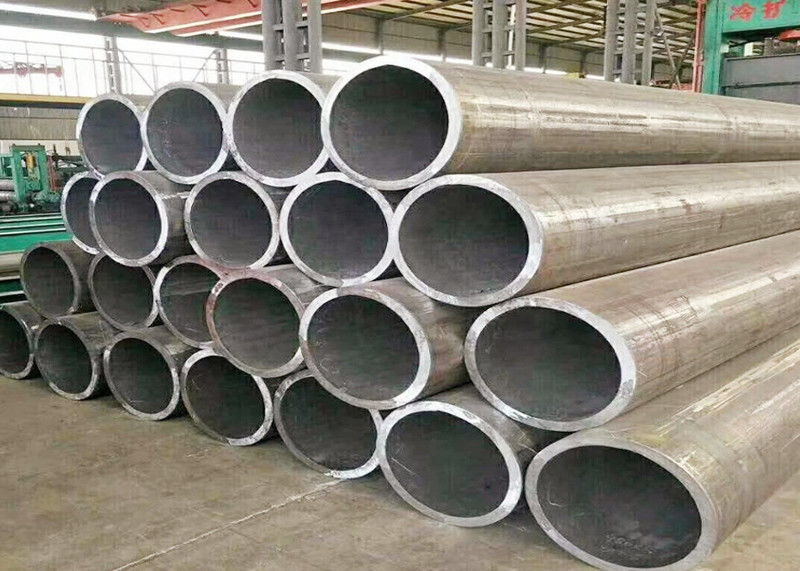

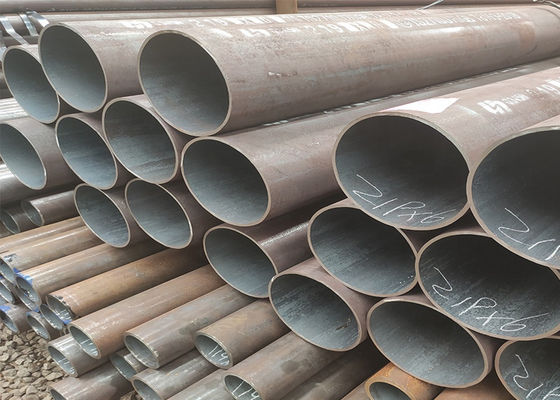

A335 P22 Alloy Steel Seamless Pipe Untuk Boiler Di Pembangkit Listrik ASTM Standard
Product Details
| Nama Produk: | Pipa Baja Paduan A335 p22 | Aplikasi: | Ketel |
|---|---|---|---|
| standar: | ASTM | Teknik: | Dingin Diambil |
| Menyoroti |
tabung paduan nikel,tabung baja canai panas |
||
Product Description
Pipa Baja Paduan A335 p22 untuk Aplikasi Boiler di Pembangkit Listrik
ASTM A335 Steel Ferritic Alloy Tubes Pipe untuk Suhu Tinggi dan Boiler
ASTM A335 Pipa baja feritik dan baja paduan untuk layanan suhu tinggi
Aplikasi: untuk Boiler, Superheaters, Heat-Exchanger
Kisaran ukuran: OD: 6-420mm WT: 1-50mm L: sesuai dengan kebutuhan pelanggan
A335 p22 Alloy Steel Pipe untuk boiler
| Kelas Baja dan Komposisi Kimia: | |||||||
| Kualitas baja | C | M N | P | S | Si | Cr | Mo |
| maks | maks | maks | maks | maks | min | ||
| P5 | 0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50 | 4,00-6,00 | 0,45-0,65 |
| P9 | 0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,25-1,00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0,05-0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50-1,00 | 1,00-1,50 | 0,44-0,65 |
| P12 | 0,05-0,15 | 0,30-0,61 | 0,025 | 0,025 | 0,50 | 0,80-1,25 | 0,44-0,65 |
| P21 | 0,05-0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50 | 2.65-3.35 | 0,80-1,06 |
| P22 | 0,05-0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0,08-0,12 | 0,30-0,60 | 0,020 | 0,010 | 0,20-0,50 | 8.00-9.50 | 0,85-1,05 |
| P92 | 0,07-0,13 | 0,30-0,60 | 0,020 | 0,010 | 0,50 | 8.50-9.50 | 0,30-0,60 |
| Kualitas baja | Kekuatan tarik | Kekuatan luluh | Pemanjangan | Kekerasan. Max | ||
| min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell / Vickers | Rockwell | ||
| P1, P2 | 55 [380] | 30 [205] | 20 | |||
| P12 | 60 [415] | 32 [220] | 20 | |||
| P23 | 74 [510] | 58 [400] | 20 | |||
| P91 | 85 [585] | 60 [415] | 30 | 250 HB / 265 HV | 25 HRC | |
| P92, P911 | 90 [620] | 64 [440] | 30 | 250 HB / 265 HV | 25 HRC | |
| P122 | 90 [620] | 58 [400] | 30 | 250 HB / 265 HV | 25 HRC | |
Dokumen Referensi:
ASTM A450 / A 450M Spesifikasi untuk Persyaratan Umum untuk Karbon, Paduan Feritik, dan Austentik
Tabung Baja Paduan
Spesifikasi ASTM A999 / A 999M untuk Persyaratan Umum untuk Paduan dan Pipa Stainless Steel
ASTM E213 Praktik untuk Pemeriksaan Ultrasonik Pipa dan Tubing Logam
ASTM E309 Praktik untuk Pemeriksaan Eddy-Currend Menggunakan Produk Tabung Baja
Saturasi Magnetik
ASTM E381 Metode Maroetch Testing, Steel Bars, Billet, Blooms, dan Forings
ASTM E527 Praktek untuk Penomoran Logam dan Paduan
ASTM E570 Praktik untuk Pemeriksaan Kebocoran Fluks Produk Tubular Baja Feromagnetik
SNT-TC-1A Rekomendasi Praktik untuk Kualifikasi dan Sertifikasi Personil Nondestruktif
SEA J 1086 Praktek untuk Penomoran Logam dan Paduan
