ASTM A192 SA 192 Tabung Penukar Panas / Tabung Boiler Baja Karbon Tekanan Tinggi
Product Details
| Nama Produk: | Tabung Baja Karbon Seamless | Aplikasi: | Boiler dan Penukar Panas |
|---|---|---|---|
| Teknik: | Dingin Diambil | Berakhir: | Berakhir Biasa Bevel Berakhir |
| Menyoroti |
pipa galvanis cs,pipa seamless baja hitam |
||
Product Description

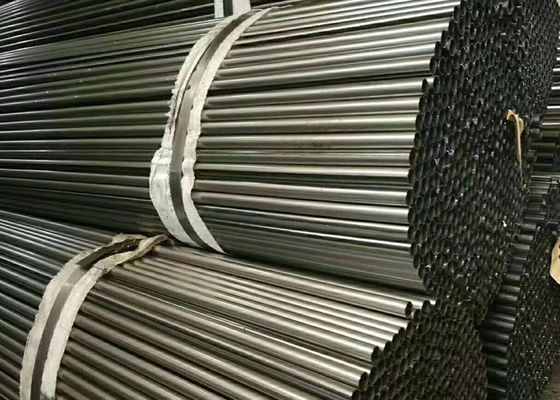

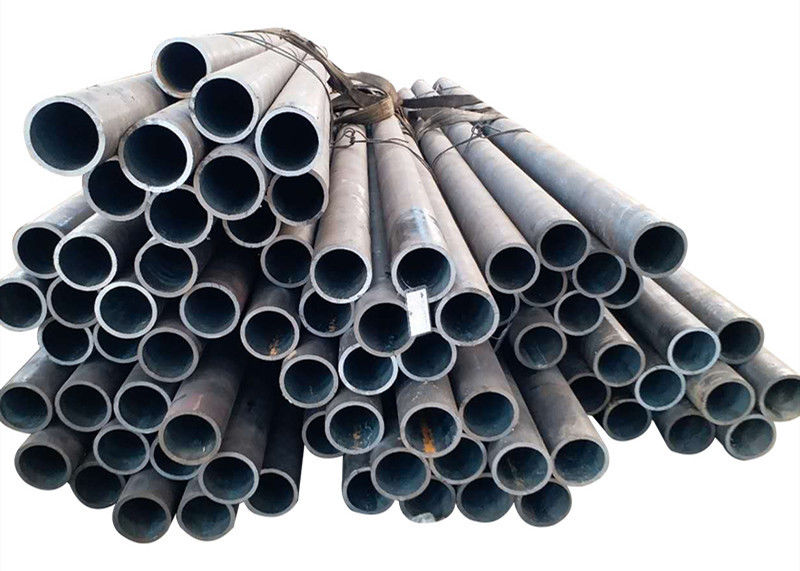

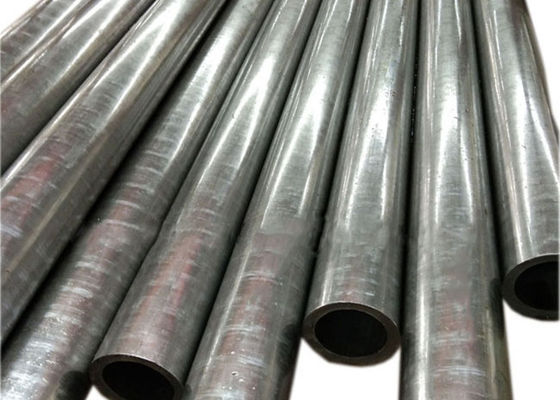

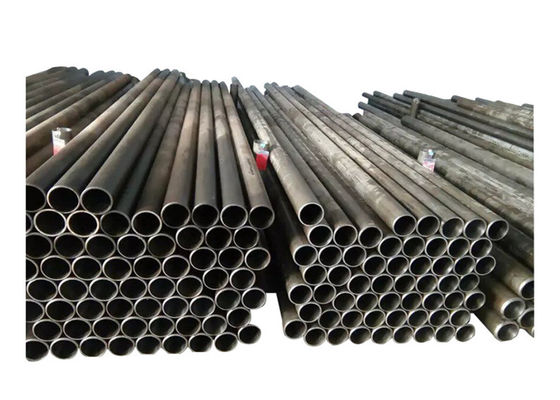

ASTM A192 / SA 192, Tabung Penukar Panas, Tabung boiler Karbon Seamless untuk Tekanan Tinggi
pipa baja karbon mulus
Informasi untuk pipa baja karbon mulus
Ukuran (mm): OD: 6.0∼180;WT: 1∼30;L: maks 12000
Deskripsi:
1. Standar: ASTM A106 (ASME SA106).
2. Aplikasi: proses pembengkokan, pengeritingan dan sejenisnya.
3. Nilai baja yang tersedia: A, B dan C.
4. Spesifikasi: diameter 10,3 hingga 1219 mm;ketebalan 0,8 hingga 19 mm;panjangnya: 6 m ke atas;dan, sesuai dengan permintaan pelanggan, pasokan pipa baja ke spesifikasi lain.
| komoditas | Pipa baja karbon mulus |
| Standar | ANSI, ASTM A192 / A179 / A106 / A53 / A500,ASME SA192 / SA179 / SA106 / SA53 / SA500 , API.DIN, GB.JIS |
| bahan | A106 Gr A / B |
| OD | 1/8 "-48", 10mm-1219mm |
| WT | SCH5, SCH10, SCH20, SCH40, SCH60, SCH80, SCH100, SCH120, SCH160, XXS |
| Pemakaian | Penggunaan Struktur, transportasi air, Bangunan, Mesin, Lalu Lintas, Penerbangan, pengembangan Minyak dan sebagainya |
| Tes lainnya | HY, ET sesuai permintaan |
| Panjangnya | 2-12m Acak, 5,8M TETAP, 6M TETAP, 9M TETAP |
| Permukaan | Cat hitam sebagai berkarat melindungi, ujung tertutup |
| Tanda | Sesuai kebutuhan pelanggan (tanda keras atau tanda semprotan) |
| Pengepakan | Dalam bundel masing-masing maks 3 ton, diikat dalam 6 poin dengan kawat baja, masing-masing dengan dua sling di ujungnya untuk diangkat selama operasi pemuatan dan pemakaian. |
| Pengiriman | Dalam bundel, dikirim dalam wadah berukuran 20 atau 40 kaki, hancurkan kapal curah menurut QTY dan pelabuhan pembuangan |
| Berakhir | 2 "di bawah ujung polos, 2" di atas ujung miring, ujung berulir tersedia |
| metode | 140mm di bawah cold draw, 140mm di atas hot rolled, 273mm di atas hot expand |
Komposisi kelas dan kimia
| Kelas | c≤ | M N | P≤ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ | S≤ | Si≤ |
| SEBUAH | 0,25 | 0,27-0,93 | 0,035 | 0,40 | 0,40 | 0,15 | 0,40 | 0,08 | 0,035 | 0,10 |
| B | 0,30 | 0,29-1,06 | 0,035 | 0,40 | 0,40 | 0,15 | 0,40 | 0,08 | 0,035 | 0,10 |
| C | 0,35 | 0,29-1,06 | 0,035 | 0,40 | 0,40 | 0,15 | 0,40 | 0,08 | 0,035 | 0,10 |
Sifat mekanik dari A106 pipa baja karbon mulus:
| Kelas | Rm Mpa Kekuatan Tarik | Titik hasil Mpa | Pemanjangan | Kondisi pengiriman |
| SEBUAH | ≥ 330 | ≥ 205 | 20 | Anil |
| B | ≥ 415 | ≥ 240 | 20 | Anil |
| C | ≥ 485 | ≥ 275 | 20 | Anil |
Toleransi dimensi:
| Jenis Pipa | Ukuran pipa | Toleransi | |
| Dingin Diambil | OD | ≤48.3mm | ± 0,40mm |
| OD | ≤60.3 | ± 1% mm | |
| WT | ± 12,5% |
||
