34CrMo4 SS Tabung Boiler Mulus / Mekanik DIN 2391 Tabung Baja Gulungan Panas Tekanan Tinggi
Product Details
| Kualitas baja: | 34CrMo4 | Permukaan: | Hitam & Cerah |
|---|---|---|---|
| Aplikasi: | Transportasi minyak, gas atau fluida, Konstruksi, Listrik, Industy bangunan mesin, Industri kimia, M | OD: | 8-630mm |
| WT: | 1-60mm | Panjangnya: | 6000mm |
| Menyoroti |
34CrMo4 SS Seamless Boiler Tubes,DIN 2391 Hot Rolled Steel Tube,34CrMo4 DIN 2391 Boiler Tubes |
||
Product Description
34CrMo4 Cold Drawn SS Boiler Tube Mechanical DIN 2391 Seamless / Tekanan Tinggi
(1) Nama Produk: Hot Rolled / Hot expansion Seamless Stainless Steel Boiler Tubes
(2) Merek: Jiangsu HDT
(3) Spesifikasi: OD: 60.3mm-914.4mm WT: 3.91mm-59.54mm
(4) Standar:
ASTM A106-B ASTM A53-B API 5L-B
API 5L, X42, X52, dan 5CT, J55, K55
SAE1020, SAE1045
JIS G4051, S20C, S45C, JIS G3454, JIS 3454, STPG42
DIN 17175 ST 45-8, ST 52
(5) Toleransi: OD: + 1% / -1% WT: + 12,5% / -10%
(6) Teknik: canai panas atau canai dingin
(7) Paket: bundel, kotak kayu yang layak laut, wadah
(8) Berakhir: miring atau polos
(9) Pelapisan: Telanjang bagian dalam, dipernis secara eksternal
Spesifikasi:

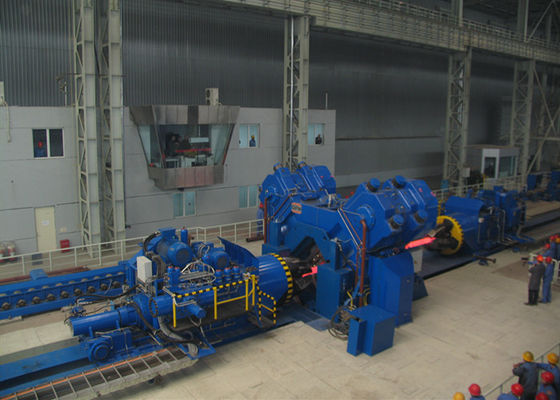

Proses produksi tabung canai panas:
Hot rolling → pemanasan → piercing → tiga roller helical rolling, tandem rolling atau ekstrusi → tube knockout → ukuran atau pengurangan diameter tabung → pendinginan → pipa seamless canai panas setengah jadi → pelurusan → uji tekanan air → pelabelan → pergudangan.
Klasifikasi:
Tabung baja mulus canai panas dapat diklasifikasikan ke dalam pipa baja umum, tabung baja seamless boiler bertekanan rendah dan sedang, pipa seamless boiler bertekanan tinggi, pipa canai panas stainless steel, dan banyak lagi.
Keuntungan :
Karena adopsi proses penggulungan panas kami, struktur pengecoran asli pelat baja untuk membuat pipa canai panas dihancurkan.Ini berarti butiran kristal dari material baja dihaluskan, dan kerusakan mikrostruktur pelat baja dihilangkan, yang menghasilkan peningkatan kinerja mekanik dan struktur mikro material baja yang lebih padat di sepanjang arah gelinding.
Oleh karena itu, pipa baja mulus canai panas kami memiliki sifat mekanik yang baik dan intensitas yang unggul.
Ukuran Tabung Hot Rolled Biasa:
(Atau sesuai kebutuhan pelanggan)
| OD × WT (mm) | OD × WT (mm) | OD × WT (mm) | OD × WT (mm) | OD × WT (mm) |
| 12 × 1.5 | 133 × 4 ～ 12 | 406,4 × 6 ～ 25 | 73 × 4-4.5-5-6-7-8-9-10-12-15 | 219 × 30-40 |
| 14 × 1,5-2,5-3 | 141,3 × 4 ～ 12 | 426 × 6 ～ 25 | 76 × 4-4.5-5-6-7-8-9-10-12-14 | 245 × 8-10-14-17-20-22 |
| 16 × 1,5-2,5-4 | 159 × 4 ～ 12 | 457 × 6 ～ 38 | 83 × 4.5-5-10 / 12 14 16 18 20 | 245 × 25-28-30-34-40 |
| 18 × 2,3-4-5 | 165 × 4 ～ 20 | 508 × 6 ～ 38 | 89 × 4,5-8-10 / 12-14 16 -18 20 | 273 × 7-9-12-15-18-20-25 |
| 20 × 2.5-3-5 | 168,3 × 4 ～ 20 | 530 × 6 ～ 40 | 95 × 4,5-6-8 / 10-12-14-16-20 | 273 × 30-35-38-40 |
| 24 × 2.5-3-4-5-6 | 177,8 × 4 ～ 22 | 559 × 6 ～ 40 | 102 × 4.5-5-6-7-8-10-12-14-16-20 | 299 × 8-12-16-20-24-28 |
| 25 × 2.5-3-4-5-6 | 323,8 × 6 ～ 25 | 610 × 6 ～ 40 | 108 × 4.5-5-6-7-8-10 / 12-14-18-20-22 | 299 × 30-32-36-38-40 |
| 28 × 3-3.5-4-5-6 | 340 × 6 ～ 25 | 630 × 6 ～ 40 | 114 × 4.5-5-6-7-8-10-12-14-18-20 | 325 × 8-12-14-18-38 |
| 32 × 3.5-4-5-6-8 | 355,6 × 6 ～ 25 | > 630 × 6 ～ 44 | 121 × 4.5-5-6-7-8-10-12-14-16-20 | 325 × 28-32-34-38 |
| 34 × 4-5-6-8 | 377 × 6 ～ 25 | <914 × 6 ～ 60 | 127 × 4.5-5-6-7-8-10-12-14-16-20 | 351 × 10-16-20-25-40 |
Aplikasi:
Transportasi minyak, gas atau fluida, Konstruksi, Listrik, Industri pembuatan mesin, Industri kimia, Perminyakan, Lalu Lintas, dll
