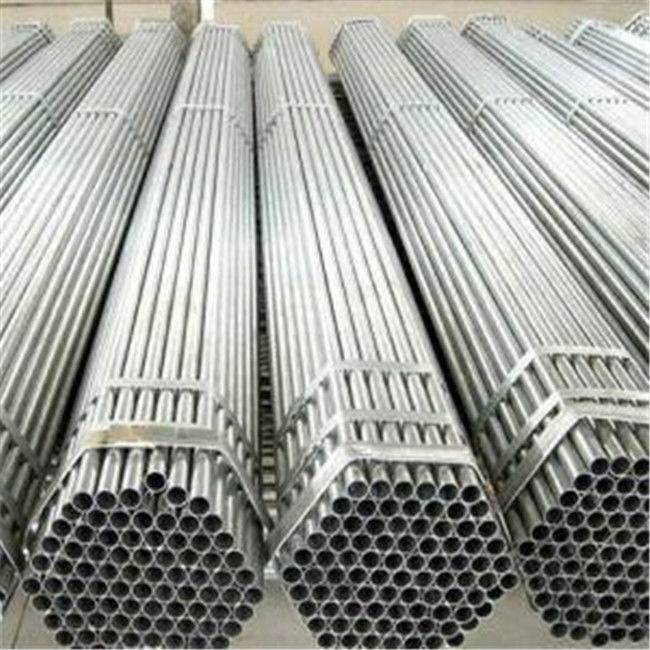

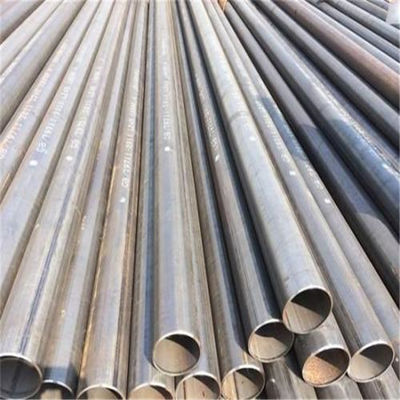

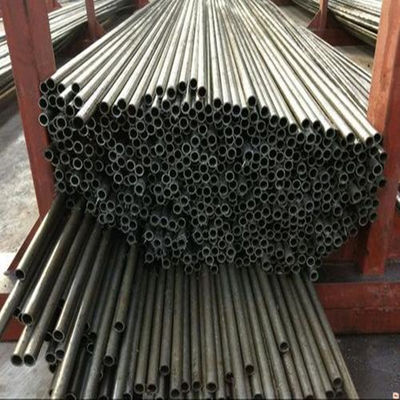

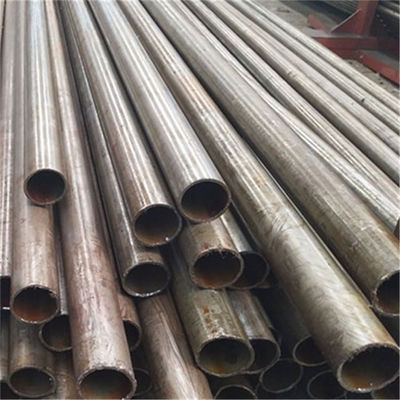

022Cr19Ni10 0Cr18Ni9 / ASTM Seamless Stainless Steel Tube 304L 304
Product Details
| Bahan: | TP304 TP304L TP316 TP316L | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 15.9mm hingga 406.4mm | WT: | 0,89mm hingga 5mm |
| Menyoroti |
ASTM Seamless Stainless Steel Tube,022Cr19Ni10 Seamless Stainless Steel Tube,0Cr18Ni9 Seamless Stainless Steel Tube |
||
Product Description
Tabung Baja Tahan Karat Seamless 022Cr19Ni10 0Cr18Ni9 / ASTM 304L 304 Pipa Baja
Produksi terkait:
(1) Kumparan baja canai dingin dipotong menjadi pelat
Tebal: Lebar 0,5mm-3,0mm: 800mm / 1250mm
(2)Pelat baja galvanis
Kumparan baja galvanis dipotong menjadi pelat
Tebal: Lebar 0.1mm-2.5mm: 600mm / 800mm / 1250mm
(3) Gulungan dan pelat Al-seng
(4) Pipa baja mulus, tabung baja seamless, pipa seamless, ukuran batang berongga: diameter luar: 8mm-800mm, ketebalan dinding: 1mm-80mm
(5) Bilah bundar
Bahan: S235JR, 1045, 1018, 1518, 1020, 41040, 4340, 8620 dan bahan lainnya
Diameter: 3mm- 800mm
(6)profil baja
bilah sudut;bilah saluran;balok h;tabung persegi panjang
Standar ASTM A249:
| Ukuran OD | Dinding Nominal | Diameter luar | Panjangnya | Dinding |
| 1/2 "(12,7) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3/4 "(19.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1 "(25,4) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1-1 / 2 "(38.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2 "(50,8) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2-1 / 2 "(63,5) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3 "(76,2) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 4 "(101,6) | 0,083 "(2,11) | +/- 0,015 "(0,38) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,083 "(2,11) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,109 "(2,77) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 8 "(203,2) | 0,109 "(2,77) | +0,061 "(1,55) / - 0,031" (0,79) | +1 "(25,4) - 0 | +/- 10,0% |
Kelas Bahan:
| Standar Amerika | TP304, TP304L, TP310S, TP316, TP316L, TP316Ti, TP321, TP347, 904L, S31803 dll |
| Standar Eropa | 1.4301, 1.4306, 1.4845, 1.4401, 1.4404, 1.4571, 1.4541, 1.4550, 1.4539, 1.4462 dll |
| Standar Jerman | X5CrNi18-10, X2CrNi19-11, X12CrNi25-21, X5CrNi17-12-2, X5CrNi17-12-3, X2CrNiMo18-14-3, X6CrNiTi18-10, X6CrNiTb18-10 Dll |
1.OD (Diameter Luar): 15.9mm hingga 406.4mm
2.WT (Ketebalan Dinding): 0.89mm sampai 5mm
3.Panjangnya : Sesuai dengan kebutuhan pelanggan
4.Standar:ASTM A312;ASTM A269;ASTM A789;ASTM A790 dll
5.Metode Proses:ERW, EFW dll
| Aplikasi: | a) Untuk transportasi fluida dan gas |
| b) Struktur dan pemesinan | |
| c) Pipa penukar panas dll | |
| Keuntungan : | a) Permukaan akhir yang superior |
| b) Sifat mekanik yang lebih baik | |
| c) Dimensi yang lebih tepat | |
| d) Metode inspeksi dan peralatan inspeksi yang sempurna | |
| Item harga: | FOB, CFR, CIF atau sebagai negosiasi |
| Pembayaran: | T / T, LC atau sebagai negosiasi |
