20m ASTM A210 Pembangkit Listrik 28mm Heat Exchanger Tube, kualitas kelas atas
Product Details
| Standar: | ASTM, BS, DIN, GB, JIS | Nama Produk: | Tabung Boiler Baja Karbon untuk Penukar Panas |
|---|---|---|---|
| Aplikasi: | Boiler Pembangkit Listrik, Penukar Panas | Pengobatan permukaan: | Pernis Kering Dilapisi |
| Menyoroti |
ASTM A210 heat exchanger tube,28mm Heat Exchanger Tube,20m Heat Exchanger Tube |
||
Product Description
Tabung Boiler Baja Karbon (Tabung boiler, pipa boiler, tabung boiler bertekanan tinggi, pipa boiler bertekanan rendah, tabung boiler bertekanan)
Rincian Produk:
1. Ukuran:OD 1/2 "-28", WT 1.5-28mm
2. Panjang: 2-20m acak atau tetap. Seperti 5,8m tetap, 6m tetap, 5-7m randometc

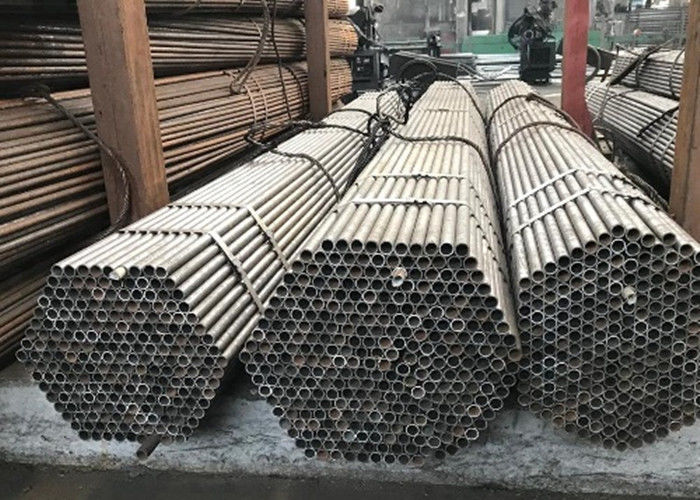

3. pengepakan: ujung polos dengan tutup, dalam bundel maks 2.0mts, diikat dengan strip logam di minimal 4 tempat atau permintaan pelanggan
4. Perawatan permukaan: diminyaki atau dicat hitam
5. Menandai: ukuran, kelas material, standar, panas no.
6. Sertifikat uji pabrik: menurut EN 10204 3.1B
7. Kondisi pengiriman: Anil, Normalisasi, Normalisasi dan Tempered
8. Inspeksi dan pengujian yang dilakukan: Pemeriksaan Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Luluh, Pemanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Non-destruktif, Uji Hidrostatis.
9. Penggunaan: a) berbagai pipa dan tabung industri untuk berbagai keperluan.
b) tabung untuk ketel, pertukaran panas.
c) pipa tanpa sambungan untuk peralatan tekanan.
10. Standar dan Grade, Baja No.
| Standar | Kelas / Nomor Baja |
| ASTM A106 | GR.A, B, C |
| ASTM A53 | GR, A, B |
| ASTM A178 | GR, A, C, D |
| ASTM A192 | A192 |
| ASTM A210 | GR, A-1.GR.C |
| ASTM A179 | A179 |
| BS3059-I | 320 CFS |
| BS3059-II | 360.440.243.620-460.622-490, S1, S2, TC1, TC2 |
| DIN17175 | ST35.8, ST52, ST45.8 |
| JISG 3454 | STBG370, STBG410 |
| JISG 3461 | STB340, STB410, STB440 |
| GB5310 | 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG |
| GB9948 | 10 #, 20 #, 12CrMo |
| GB3087 | 10 #, 20 #, |
