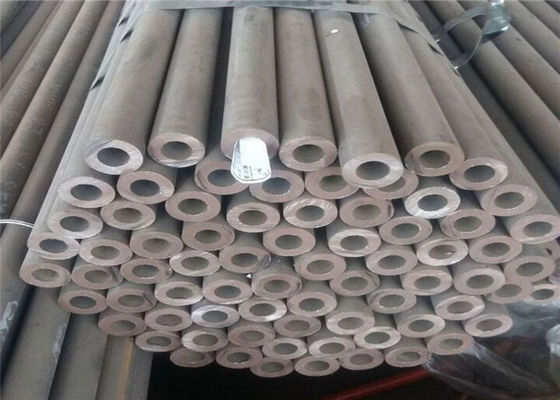

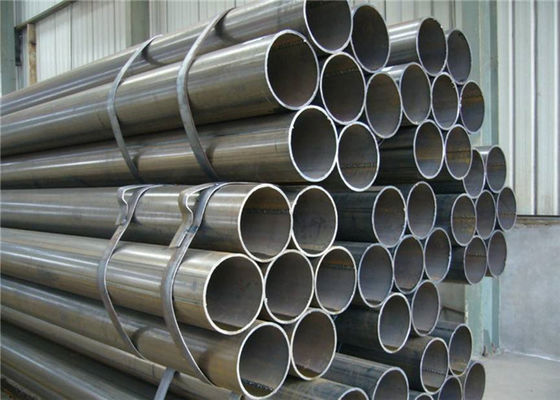

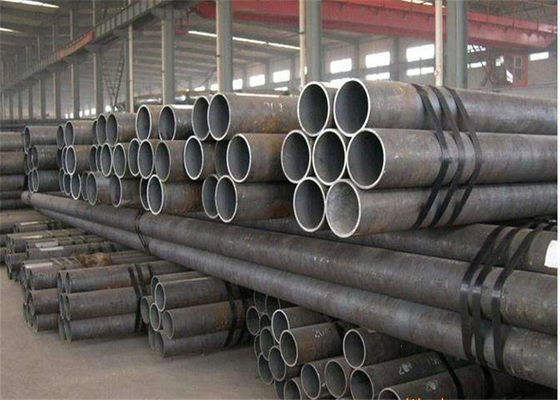

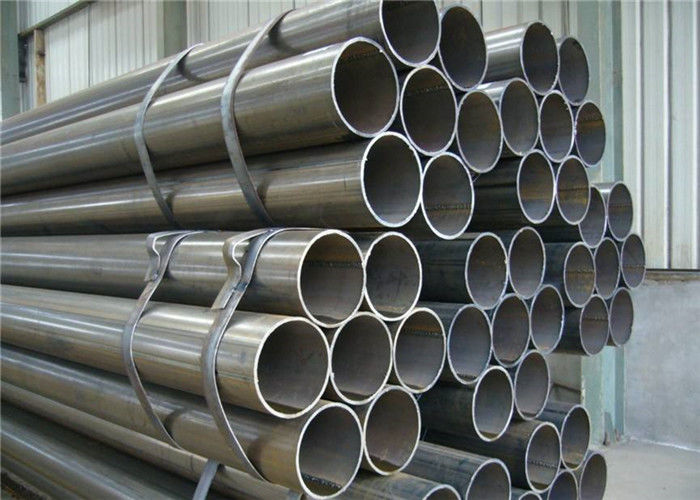

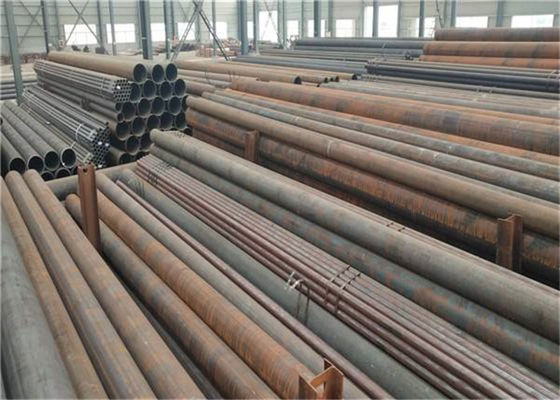

201 304316430 ASME Standard Seamless Boiler Tubes
Product Details
| Kualitas baja: | ASME SA213 T1, T11, T12, T2, T22, T23, T5, T9, T91, T92 | Permukaan: | Anneal & Pickling |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Inspeksi pihak ketiga: | BV, SGS |
| Menyoroti |
ASME Standard Seamless Boiler Tubes,430 Seamless Boiler Tubes,0.15mm Seamless Boiler Tubes |
||
Product Description
Memproduksi 201304316430 Tabung Boiler Stainless Steel SeamlessStandar ASME
Informasi Produksi
Tabung Boiler Stainless Steel Seamless adalah sejenis tabung baja paduan dengan elemen lain dalam jumlah antara 1 dan 50% menurut beratnya untuk meningkatkan sifat mekaniknya. Elemen pengikat ditambahkan untuk mencapai sifat tertentu dalam material.Sebagai pedoman, elemen paduan ditambahkan dalam persentase yang lebih rendah (kurang dari 5%) untuk meningkatkan kekuatan atau kemampuan mengeras atau dalam persentase yang lebih besar (lebih dari 5%) untuk mencapai sifat khusus, seperti ketahanan terhadap korosi atau stabilitas suhu ekstrim.
Bahan Utama:
ASTM A335 (Tabung Baja Paduan Feritik Seamless untuk Layanan Suhu Tinggi)
ASTM A335 P1, P2, P5, P9, P12, P11, P22, P91
ASTM 213 (Boiler Baja Paduan Feritik dan Austenitik Seamless, Superheater, dan Heat-Exchanger Tubes)
ASTM A213 T1, T2, T11, T5, T9, T22, T23, T91, T92
ASTM A335 Pipa Baja Paduan Feritik Seamless Untuk Suhu Tinggi
| Peralatan mekanis | ||||||
| Grade | Kekuatan tarik (MPa) | Kekuatan luluh (MPa) | Pemanjangan(%) | Energi tumbukan (J) | Kekerasan | |
| P11 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P12 | ≥ 415 | ≥ 220 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P22 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB | |
| P5 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 187HB | |
| P91 | 585 ~ 760 | ≥ 415 | ≥ 20 | ≥ 35 | ≤ 250HB | |
| P92 | ≥ 620 | ≥ 440 | ≥ 20 | ≥ 35 | 250HB | |
Bahan LAINNYA:
ASTM A199 T9, T11, T22
ASTM A209 T1, T1A, T1B
ASTM A210 C
ASTM A250 T1
ASTM A369 FP1, FP2, FP12, FP22, FP9
ASTM A389 FP5
JIS G3455 STS49
JIS 3456 STPT49
JIS G3458 STPA12, STPA 22, STPA23, STPA24, STPA25, STPA26
JIS G3462 STBA12, 13, STBA20, STBA22, STBA23, STBA24, STBA25, STBA26
JIS G3464 STBL39
SEW610 10CrMo910
DIN 1629 St52.4, St52
DIN 17175 15Mo3, 13CrMo44, 12CrMo195
GB9948 16Mn, 15MnV, 16Mo, 12CrMo, 15CrMo, 12Cr1MOV, Cr2Mo, 10MoWVNB, Cr5Mo, Cr9Mo,
GB / T8162 / 8163 Q345, 20Cr, 40Cr, 20CrMo, 25CrMo, 30CrMo, 35CrMo, 34Mn2V, 42CrMo, WB36
(15NICUMOB5) dan 12Cr2MoWVTiB (R102)
GB5310 12CrMoG, 15CrMoG, 12Cr1MoVG
GB / T 17396 27SiMn
GB18248 37Mn, 34Mn2V, 35CrMn, 34CrMo4
Jenis: Mulus dan dilas
Ukuran:
Diameter luar: 6mm ~ 1420mm
Ketebalan dinding: 1mm ~ 60mm
Panjangnya: 12m, 11.8m, 6m, 5.8m atau sebagai persyaratan.Maks .: 25m.pc
