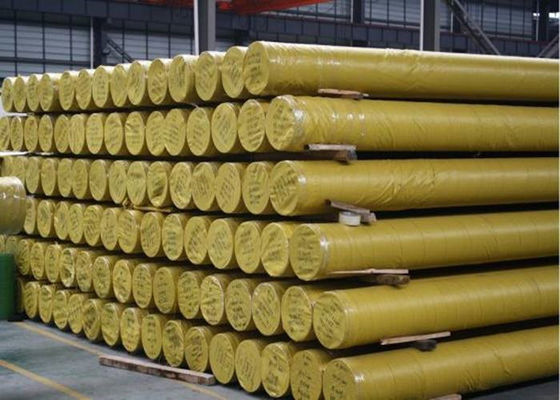

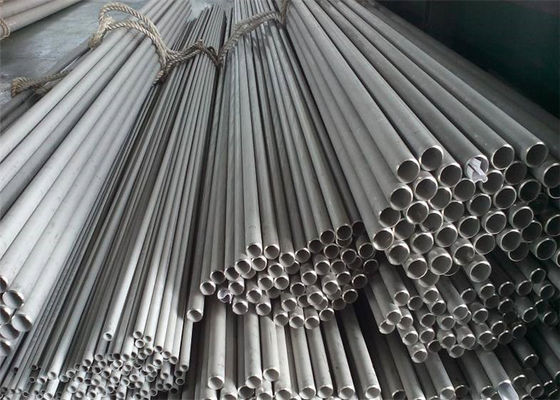

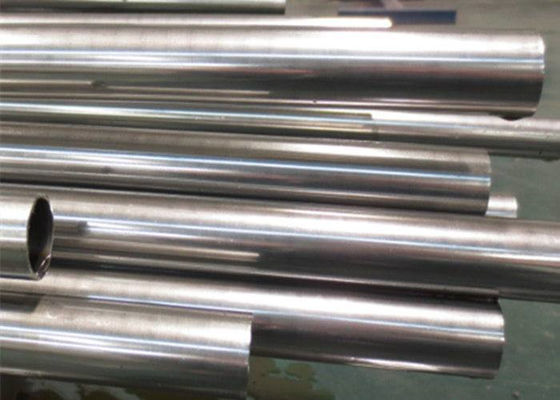

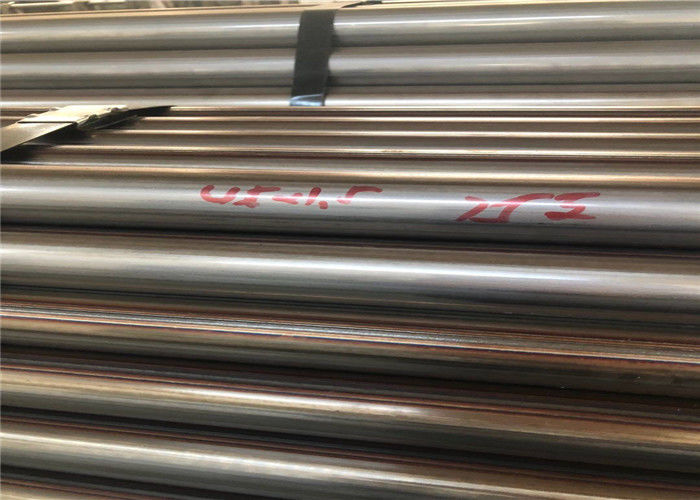

ASTM Industry Acar 5mm Electric Resistance Welded Pipe
Product Details
| Bahan: | TP304 TP304L TP316 TP316L | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 15.9mm hingga 406.4mm | WT: | 0,89mm hingga 5mm |
| Menyoroti |
Acar pipa las resistansi listrik,5mm Electric Resistance Welded Pipe,pipa las ASTM erw |
||
Product Description
Produksi
| Sifat Mekanik Baja Tahan Karat | ||||||
| Kelas | Daya tarik | Kekuatan Yide | Elogasi | Kekerasan |
Larutan Anil |
|
| kgf / mm² (N / mm²) | kgf / mm² (N / mm²) | % | HRB (HV) | ℃ | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) |
1040 ℃ -1150 ℃ Pendinginan Air |
| TP 304L | ≥50 (485) | ≥17 (170) | ||||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) |
1010 ℃ -1150 ℃ Pendinginan Air |
||
| SUS 304L | ≥49 (480) | ≥18 (175) | ||||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) |
1010 ℃ -1150 ℃ Pendinginan Air |
||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | ||||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 |
1000 ℃ -1100 ℃ Pendinginan Air |
|
| 1.4307 | (470-670) | ≥18 (180) | ||||
| 1.4401 | (510-710) | ≥21 (205) |
1020 ℃ -1120 ℃ Pendinginan Air |
|||
| 1.4404 | (490-690) | ≥19 (195) | ||||
| Ukuran OD | Dinding Nominal | Diameter luar | Panjangnya | Dinding |
| 1/2 "(12,7) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3/4 "(19.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1 "(25,4) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1-1 / 2 "(38.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2 "(50,8) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2-1 / 2 "(63,5) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3 "(76,2) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 4 "(101,6) | 0,083 "(2,11) | +/- 0,015 "(0,38) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,083 "(2,11) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,109 "(2,77) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 8 "(203,2) | 0,109 "(2,77) | +0,061 "(1,55) / - 0,031" (0,79) | +1 "(25,4) - 0 | +/- 10,0% |
Kelas Bahan:
| Standar Amerika | TP304, TP304L, TP310S, TP316, TP316L, TP316Ti, TP321, TP347, 904L, S31803 dll |
| Standar Eropa | 1.4301, 1.4306, 1.4845, 1.4401, 1.4404, 1.4571, 1.4541, 1.4550, 1.4539, 1.4462 dll |
| Standar Jerman | X5CrNi18-10, X2CrNi19-11, X12CrNi25-21, X5CrNi17-12-2, X5CrNi17-12-3, X2CrNiMo18-14-3, X6CrNiTi18-10, X6CrNiTb18-10 Dll |
1.OD (Diameter Luar): 15.9mm hingga 406.4mm
2.WT (Ketebalan Dinding): 0.89mm sampai 5mm
3.Panjangnya : Sesuai dengan kebutuhan pelanggan
4.Standar:ASTM A312;ASTM A269;ASTM A789;ASTM A790 dll
5.Metode Proses:ERW, EFW dll
| Aplikasi: | a) Untuk transportasi fluida dan gas |
| b) Struktur dan pemesinan | |
| c) Pipa penukar panas dll | |
| Keuntungan : | a) Permukaan akhir yang superior |
| b) Sifat mekanik yang lebih baik | |
| c) Dimensi yang lebih tepat | |
| d) Metode inspeksi dan peralatan inspeksi yang sempurna | |
| Item harga: | FOB, CFR, CIF atau sebagai negosiasi |
| Pembayaran: | T / T, LC atau sebagai negosiasi |
