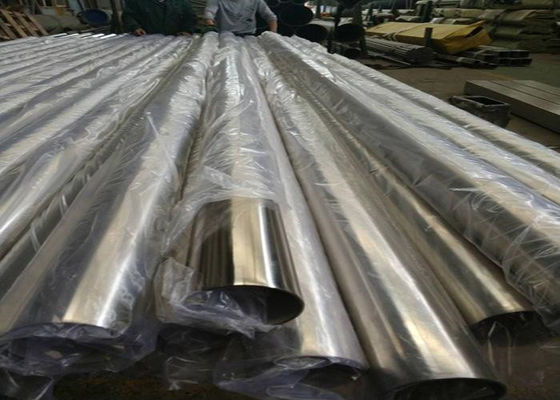

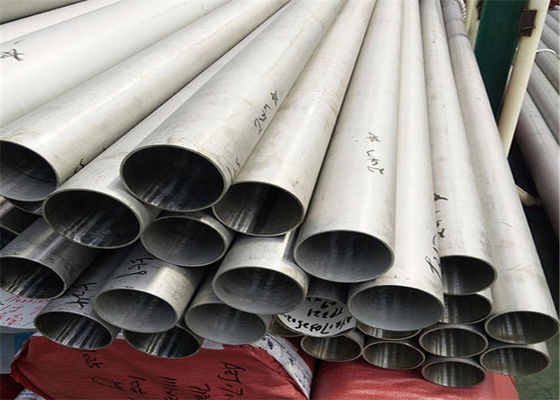

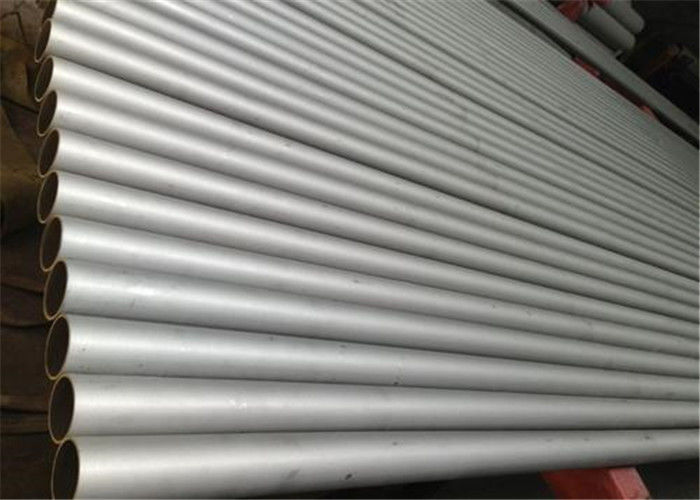

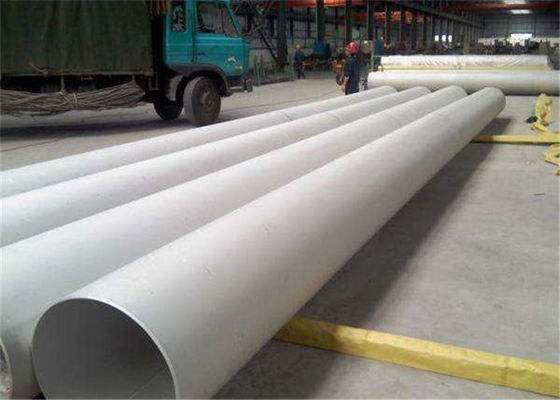

Pipa Dilas Stainless Steel TP316L 406.4mm Dilapisi Titanium
Product Details
| Bahan: | TP304 TP304L TP316 TP316L, 300 Series | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 15.9mm hingga 406.4mm | WT: | 0,89mm hingga 5mm |
| Menyoroti |
Pipa las baja tahan karat TP316L,pipa las sus berlapis titanium,Pipa Las Stainless Steel 406 |
||
Product Description
SS Tubing Titanium Dilapisi Dekoratif Pipa Stainless Steel Sus304 Dilas
informasi produk
| Pipa Stainless Steel | |
| Standar | ASTM A554, A249, A269 dan A270, A312 |
| Kelas Material | 201.202.301.304.316.316L, 430 |
| Diameter luar | 12,7 mm - 219 mm |
| Ketebalan | 0,25-2 MM |
| Panjangnya | 6m atau sebagai permintaan pelanggan |
| Toleransi | a) Diameter Luar: +/- 0.2mm b) Tebal: +/- 0,02mm c) Panjang: +/- 5mm |
| Permukaan |
180G, 320G, 400G Satin / Garis Rambut 400G, 500G, 600G atau 800G Cermin selesai |
| Aplikasi | Konstruksi dekorasi, pelapis, instrumen industri |
| Uji | Uji squash, uji diperpanjang, uji tekanan air, uji busuk kristal, perlakuan panas, NDT |
Standar ASTM A249:
| Ukuran OD | Dinding Nominal | Diameter luar | Panjangnya | Dinding |
| 1/2 "(12,7) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3/4 "(19.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1 "(25,4) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1-1 / 2 "(38.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2 "(50,8) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2-1 / 2 "(63,5) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3 "(76,2) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 4 "(101,6) | 0,083 "(2,11) | +/- 0,015 "(0,38) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,083 "(2,11) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,109 "(2,77) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 8 "(203,2) | 0,109 "(2,77) | +0,061 "(1,55) / - 0,031" (0,79) | +1 "(25,4) - 0 | +/- 10,0% |
Aplikasi:
a) Untuk transportasi fluida dan gas
b) Struktur dan pemesinan
c) Pipa penukar panas dll
Keuntungan :
a) Permukaan akhir yang superior
b) Sifat mekanik yang lebih baik
c) Dimensi yang lebih tepat
d) Metode inspeksi dan peralatan inspeksi yang sempurna
| Syarat & Ketentuan | Item Harga | FOB, CFR, CIF atau sebagai negosiasi |
| Pembayaran | T / T, LC atau sebagai negosiasi | |
| Waktu Pengiriman | 30 hari kerja setelah menerima deposit Anda (Biasanya sesuai dengan jumlah pesanan) | |
| Paket | Kasus besi;tas anyaman atau sesuai kebutuhan pelanggan | |
| Persyaratan Kualitas | Sertifikat Uji Pabrik akan disertakan dengan pengiriman, Inspeksi Bagian Ketiga dapat diterima | |
| Kualitas | Uji | X-ray, Tes ukuran, Tes panjang |
| Analisis Kimia (Spektroskopi Emisi Fotolistrik) dll | ||
| Pasar | Pasar utama | Eropa, Timur Tengah, Asia Tenggara, Amerika Selatan.Dll |
