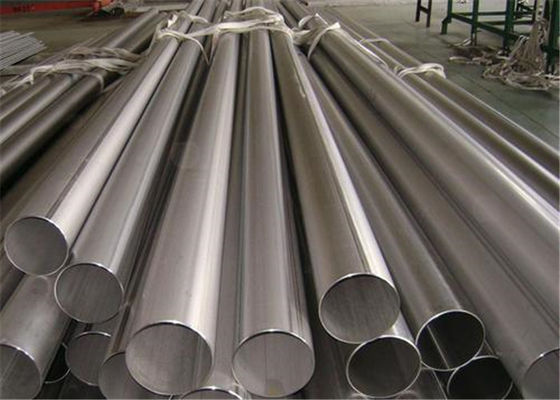

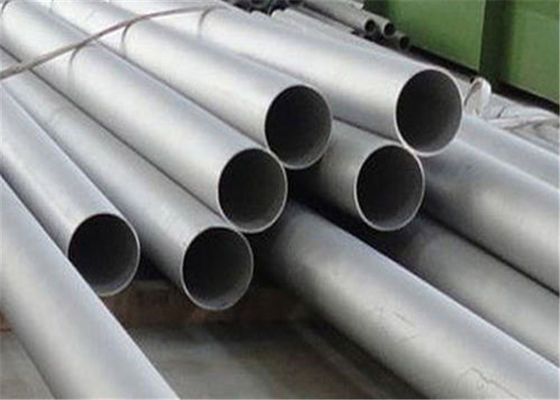

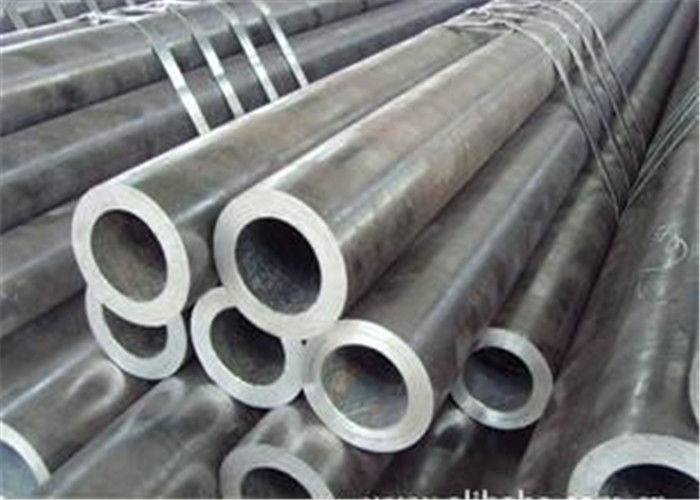

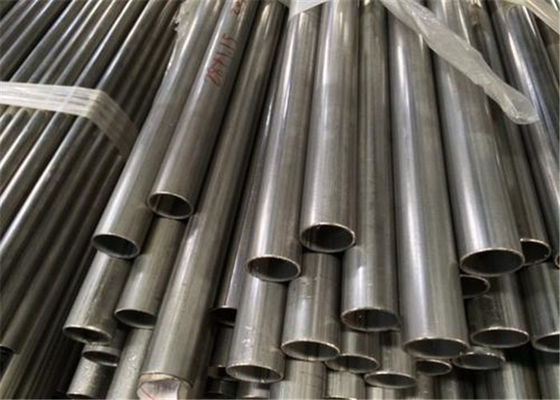

SSAW Spiral TP304 15.9mm Pipa Baja Dilas
Product Details
| Bahan: | TP304 TP304L TP316 TP316L, 300 Series | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 15.9mm hingga 406.4mm | WT: | 0,89mm hingga 5mm |
| Menyoroti |
Pipa baja dilas TP304,Solusi pipa baja dilas Annealed,Pipa Baja Dilas 15.9mm |
||
Product Description
Tabung Baja Dilas Produsen Pipa Dilas SSAW Spiral Welded Steel Pipes And Tube
informasi produk
| nama Produk | Pipa baja spiral SSAW SAWH |
| Panjang Pipa | 6-12m |
| OD | 219mm-2030mm |
| WT | 5mm-20mm |
| Teknologi | GERGAJI |
| Kelas | API 5L PSL1 PSL2 x42, x46, x52, x56, x60 |
| Bahan | Q235, Q345, St37, St37-2, A53, Mn16, dll |
| Aplikasi | pipa air, tiang pancang baja, pipa minyak dan gas, pipa baja |
| Pengobatan permukaan | telanjang, diminyaki, lukisan hitam, galvanis, lapisan 3pe anti korosif, dll |
| Sertifikat | API 5L, ISO9001: 2015, ISO14001, OHSAS18001 |
| Syarat pembayaran | T / T, L / C, Western Union, Uang Tunai, dll |
Teknologi Energi Hua Dong berurusan dengan pipa dan tabung baja tahan karat yang sudah lebih dari 10 tahun, setiap tahun menjual lebih dari 5000 ton pipa dan tabung baja tahan karat.Klien kami sudah mencakup lebih dari 45 negara.Pipa dan tabung seamless stainless steel kami banyak digunakan di Pertambangan, Energi, Petrokimia, Industri Kimia, Pabrik Makanan, Pabrik Kertas, Industri Gas dan Cairan dll.
1.OD (Diameter Luar): 15.9mm hingga 406.4mm
2.WT (Ketebalan Dinding): 0.89mm sampai 5mm
3.Panjangnya : Sesuai dengan kebutuhan pelanggan
4.Standar:ASTM A312;ASTM A269;ASTM A789;ASTM A790 dll
5.Metode Proses:ERW, EFW dll
Standar ASTM A249:
| Ukuran OD | Dinding Nominal | Diameter luar | Panjangnya | Dinding |
| 1/2 "(12,7) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3/4 "(19.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1 "(25,4) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,005 (0,13) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 1-1 / 2 "(38.1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2 "(50,8) | 0,065 "(1,65) /0,049" (1,25) | +/- 0,008 "(0,20) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 2-1 / 2 "(63,5) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 3 "(76,2) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 4 "(101,6) | 0,083 "(2,11) | +/- 0,015 "(0,38) | +1/8 "(3,18) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,083 "(2,11) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 6 "(152,4) | 0,109 "(2,77) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/- 10,0% |
| 8 "(203,2) | 0,109 "(2,77) | +0,061 "(1,55) / - 0,031" (0,79) | +1 "(25,4) - 0 | +/- 10,0% |
Aplikasi:
a) Untuk transportasi fluida dan gas
b) Struktur dan pemesinan
c) Pipa penukar panas dll
Keuntungan :
a) Permukaan akhir yang superior
b) Sifat mekanik yang lebih baik
c) Dimensi yang lebih tepat
d) Metode inspeksi dan peralatan inspeksi yang sempurna
| Syarat & Ketentuan | Item Harga | FOB, CFR, CIF atau sebagai negosiasi |
| Pembayaran | T / T, LC atau sebagai negosiasi | |
| Waktu Pengiriman | 30 hari kerja setelah menerima deposit Anda (Biasanya sesuai dengan jumlah pesanan) | |
| Paket | Kasus besi;tas anyaman atau sesuai kebutuhan pelanggan | |
| Persyaratan Kualitas | Sertifikat Uji Pabrik akan disertakan dengan pengiriman, Inspeksi Bagian Ketiga dapat diterima | |
| Kualitas | Uji | X-ray, Tes ukuran, Tes panjang |
| Analisis Kimia (Spektroskopi Emisi Fotolistrik) dll | ||
| Pasar | Pasar utama | Eropa, Timur Tengah, Asia Tenggara, Amerika Selatan.Dll |
