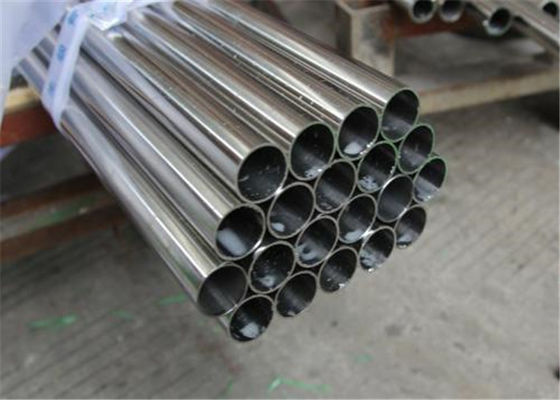

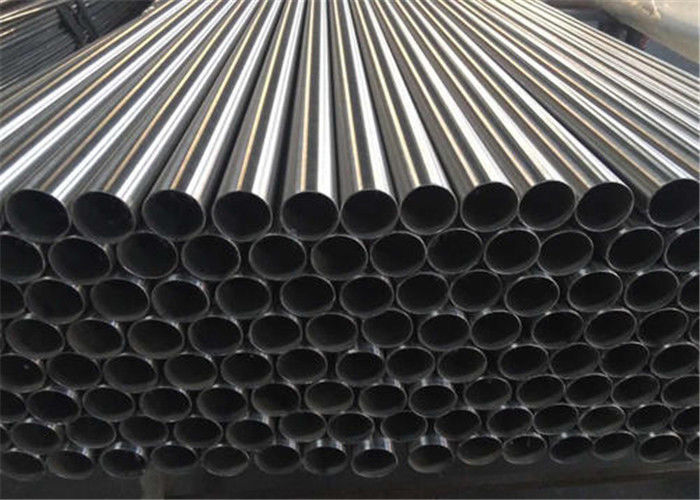

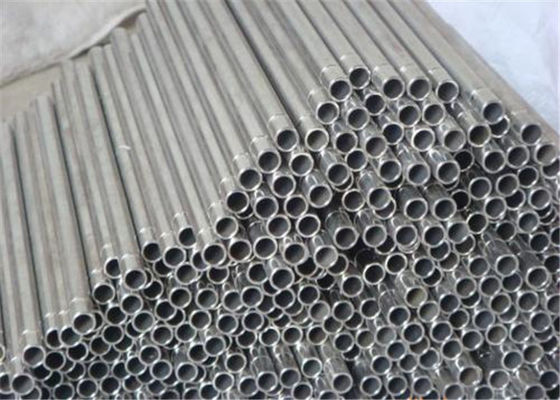

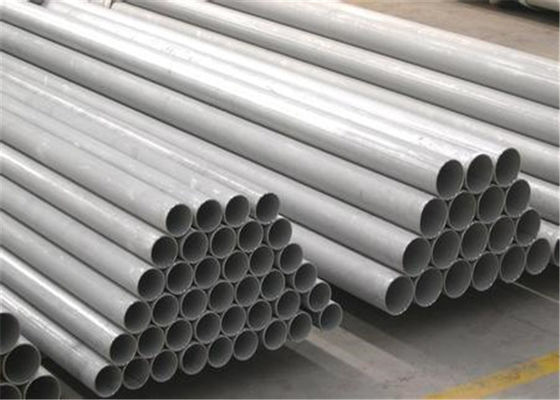

ASTM 304L 304 OD 6.00mm Tabung Stainless Seamless
Product Details
| Bahan: | UNS NO8904 / 904L | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | 6.00mm hingga 101.6mm | WT: | 0,5mm hingga 8mm |
| Menyoroti |
OD 6.00mm Seamless Stainless Tube,304L Seamless Stainless Tube,pipa baja tahan karat ASTM 304 |
||
Product Description
ASTM 304L 304 Steel Pipe Seamless Stainless Steel Pipe / Tube Stainless Steel
Aplikasi
a) Untuk transportasi fluida & gas
b) Struktur & permesinan dll
Keuntungan
a) Teknologi canggih mesin draw dingin
b) Mesin anil canggih
c) Sifat mekanik yang lebih baik
d) Dimensi yang lebih tepat
e) Metode inspeksi yang sempurna dan peralatan inspeksi dll
Teknologi Energi Hua Dongberurusan dengan Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy, Monel, Inconel, Incoloy) pipa dan tabung mulus dan dilas sudah lebih dari 35 tahun, setiap tahun menjual lebih dari 50000 ton pipa baja dan tabung.Klien kami sudah mencakup lebih dari 30 negara, Seperti Italia, Inggris, Gernmany, AS, Kanada, Chili, Kolombia, Arab Saudi, Rusia, Korea, Singapura, Austria, Polandia, Prancis, .... Dan perusahaan cabang dan pabrik grup kami telah disetujui oleh:ABS, DNV, GL, BV, PED 97/23 / EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Kelas Bahan:
| Standar Amerika |
Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Paduan Nikel: UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400 Lainnya:TP405, TP409, TP410, TP430, TP439, ... |
| Standar Europen | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia |
08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18.08Х18Н10.08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т1218НН10Т, 12Х18НН10Т, 12Х18НН |
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Ketebalan Dinding mm | |||||||||
| 0,508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg / m | |||||||
| 6.35 | 1/4 | 0,081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0,356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0,356 | 0.457 | 0,612 | 0,754 | ||
| 15.88 | 5/8 | 0.271 | 0,334 | 0.455 | 0,588 | 0.796 | 0,995 | ||
| 19.05 | 3/4 | 0,327 | 0.405 | 0,553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
| Bentuk Tube: Straight & U-bend & Finned & Coiled | |||||||||
| Tabung Baja Tahan Karat: A / SA213, A / SA249, A / SA268, A / SA269, A / SA789, EN10216-5, A / SA688, B / SB163, JIS-G3463, GOST9941-81. | |||||||||
| Tabung Karbon & Baja Paduan: A / SA178, A / SA179, A / SA192, A / SA209, A / SA210, A / SA213 | |||||||||
Beberapa uji kualitas yang kami lakukan meliputi:
| Uji Korosi | Dilakukan hanya jika diminta secara khusus oleh klien |
| Analisis kimia | Pengujian dilakukan sesuai standar kualitas yang dipersyaratkan |
| Pengujian Merusak / Mekanis | Tarik |Kekerasan |Meratakan |Suar |Penghubung jalur pipa |
| Reverse-bend dan Re.tes datar | Dilakukan dengan kepatuhan penuh dengan standar yang relevan & norma ASTM A-450 dan A-530, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di akhir pelanggan |
| Pengujian Arus Eddy | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatis | Pengujian Hidrostatis 100% dilakukan sesuai dengan norma ASTM-A 450 untuk memeriksa kebocoran tabung, dan tekanan terbesar kami dapat mendukung 20Mpa / 7s. |
| Uji Udara Di Bawah Tekanan | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa harus melalui inspeksi visual menyeluruh oleh staf terlatih untuk mendeteksi kekurangan permukaan & ketidaksempurnaan lainnya |
