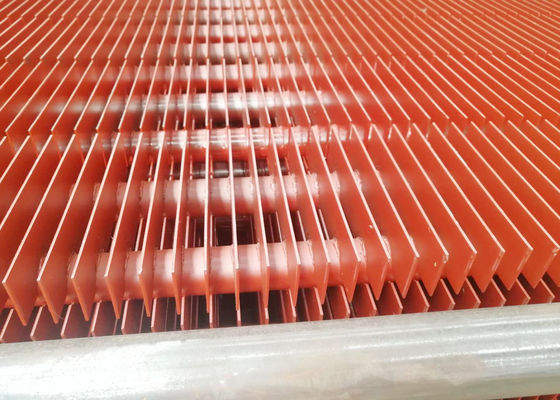

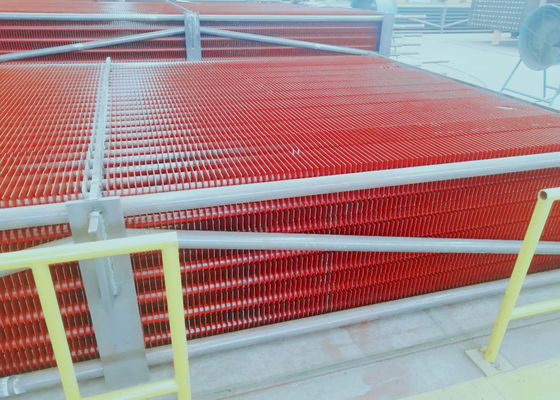

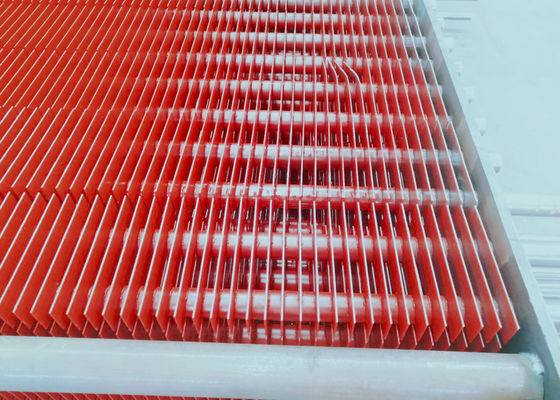

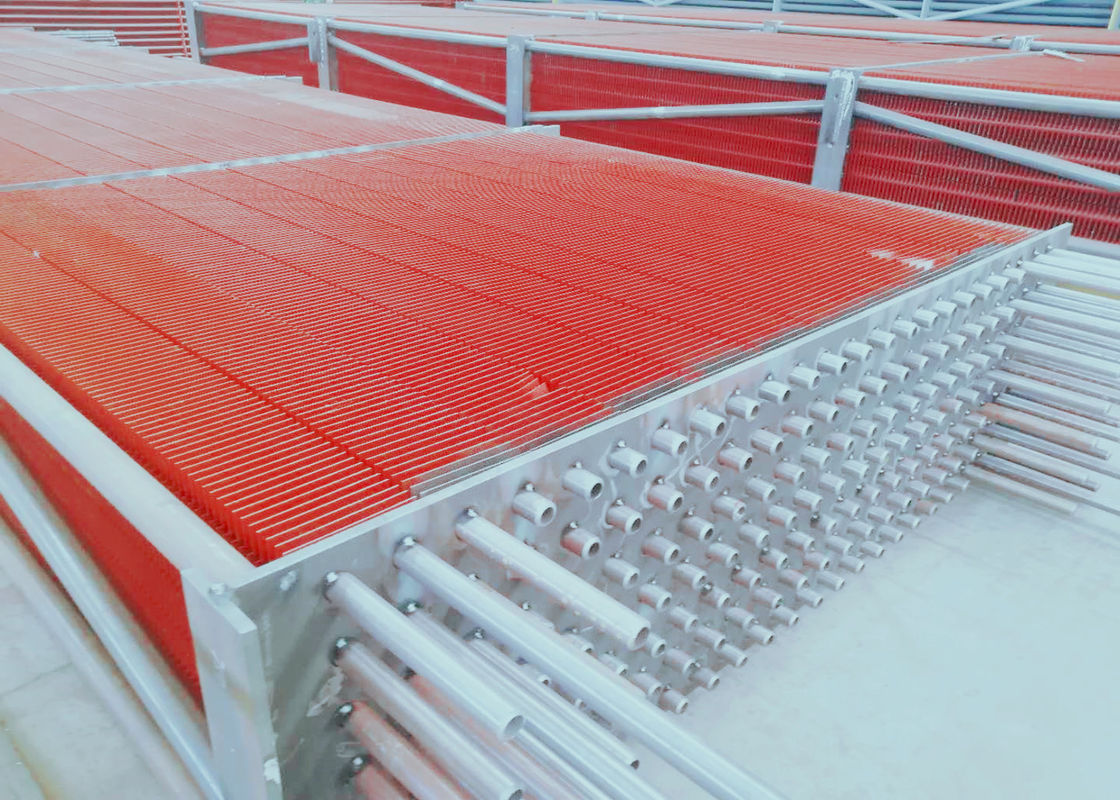

Spiral Square Longitudinal Erw 12mm Finned Tubes
Product Details
| Nama Produk: | H Type Finned Tube | Bahan tabung dasar: | Baja karbon |
|---|---|---|---|
| Aplikasi: | Tabung Boiler, Penukar Panas | Paket Transportasi: | Bundel dan Kemasan Kotak Kayu |
| Menyoroti |
Erw Finned Tubes,Longitudinal Finned Tubes,12mm Finned Tubes |
||
Product Description
Spiral Persegi Longitudinal ERW Fin Tubings fintubes Fin Pipes Finned Tubes Fin Tubes
Deskripsi Produk
Tube OD: Atas permintaan 12 ~ 219mm.
Ketebalan tabung: berdasarkan permintaan <16
FPI: Atas permintaan 2.3 ~ 30
Ketebalan sirip: 0.8 ~ 4.0
Tinggi sirip: 5,5 ~ 30mm
Tabung bersirip terutama digunakan untuk economizer boiler, pemanas awal udara, pemulihan panas, petrokimia
industri retak tungku dan lain-lain itu sebagian besar dapat menghemat energi dan melindungi lingkungan. perusahaan kami
dapat menghasilkan tabung bersirip dari Φ22mm hingga Φ250mm sesuai dengan GB atau kebutuhan pelanggan.
Menurut bentuk dan struktur sayap, tabung bersirip dapat dibagi menjadi beberapa kategori berikut:
Tabung bersirip persegi, tabung bersirip spiral, tabung bersirip longitudinal, tabung bersirip heliks, tabung bersirip bagian dalam.
1. Tabung OD: Atas permintaan dari 12mm hingga 219mm.
Ketebalan tabung: berdasarkan permintaan (kurang dari 16mm)
FPI: Berdasarkan permintaan (2.3mm hingga 30mm)
Ketebalan sirip: Berdasarkan permintaan (0.8mm hingga 4.0mm)
Tinggi sirip: dari 5,5 mm hingga 30 mm
2. Bahan tabung dasar: Aluminium, tembaga, kuningan, cupronickel, baja karbon, baja tahan karat, titanium,
paduan nikel, baja tahan korosi dll.
3. Bahan akhir: Aluminium, baja karbon, baja paduan, baja tahan karat, tembaga dan
baja tahan korosi. jika Anda membutuhkan bahan lain, hubungi kami.
Aplikasi:
Aftercooler, pendingin udara, pemanas udara, pendingin udara charge, kondensor, pemanas konveksi, pemanas listrik, evaporator, pendingin fluida, pendingin gas, pipa panas, pendingin hidrogen, pengering pakaian industri, intercooler, pemanas imersi, pendingin oli, radiator, pendingin, pemulihan pelarut dan penukar panas uap ke udara
Spesifikasi tabung bersirip
| Tabung Dasar OD (mm) |
Ketebalan Tabung Dasar (mm) | Tinggi Fin (mm) | Ketebalan sirip(mm) | Fin NO.(Buah) |
| 25,4 mm ~ 152,4 mm | 1,0 mm ~ 4,0 mm | 5,0 mm ~ 16,0 mm | 0,89 mm ~ 1,5 mm | 2 ~ 36 |
| Bahan Tabung Dasar | Bahan Fin | Panjang Tabung (Mtr) | ||
| Baja Karbon, Baja Paduan, Baja Tahan Karat | Baja Karbon, Baja Paduan, Baja Tahan Karat | ≤ 15Mtrs | ||
Product Highlights
Spiral Persegi Longitudinal ERW Fin Tubings fintubes Fin Pipes Finned Tubes Fin Tubes Deskripsi Produk Kami profesional Spiral Square Longitudinal ERW Finned Tubes Fin Tubes Fin Pipes Finished Pipes Fin Tubings fintubes untuk Heat Exchanger Boiler Air Cooler Radiator Evaporator dari Cina Tube OD: ...
Pengelasan Frekuensi Tinggi Bagian Ketel Uap Berbahan Bakar Batubara Disesuaikan Stack Economizer Coil
High Frequency Welding Customized Coal Fired Steam Boiler Parts Stack Economizer Coil Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there
Tabung Sirip Spiral Boiler Pengelasan Frekuensi Tinggi Untuk Perpindahan Panas Economizer
High Frequency Welding Boiler Spiral Fin Tube For Economizer Heat Transfer Boiler economizer Boiler Economizer is the energy improving device that helps to reduce the cost of operation by saving the fuel. The economizer in Boiler tends to make the system more energy efficient. In boilers, economizers are generally designed to exchange heat with the fluid, generally water. The exhaust from the boilers is generally in the temperature range of 200°C – 250°C, so there are a huge
Heat Exchanger H Type Boiler Parts Tube Untuk Pembangkit Pembangkit Listrik
High Efficient Heat Exchang H Type High Temperature Resistance Boiler Parts For Utility/Power Station Plant Product Introduce H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H
Extension Heating Surface Boiler Fin Tube Untuk Boiler Pembangkit Listrik Industri
Energy Saving Extension Heating Surface Boiler Fin Tube For Industrial Power Plant Boiler Product Description H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface. H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer,
