ASTM A210 Power Station 0.8mm Cs Seamless Pipe dengan Ketebalan Dinding 0.8-15mm
Product Details
| Nama Produk: | Pipa Besi Seamless | Aplikasi: | Boiler / Exchanger Pembangkit Listrik |
|---|---|---|---|
| Standar: | ANSI, ASTM, GB, DIN, API, JIS, ASME, EN | Kemasan rincian: | Ply-wooden Case / Iron Case / Bundle dengan Cap plastik |
| Menyoroti |
Pipa Seamless 0.8mm Cs,Pipa Seamless ASTM A210 Cs,Pipa Cs Seamless ASTM A210 |
||
Product Description
ASTM A210 Boiler Carbon Steel Seamless Tube Wall Tebal 0.8mm - 15mm
ASTM A210 Seamless Carbon Steel Tube, Ketebalan Dinding Pipa Baja Boiler 0.8mm - 15mm
Detail Cepat:
Standar: ASTM A210 / A210M (ASME SA210 / SA210M)
Boiler Baja Karbon Menengah dan Tabung Superheater
Ukuran: (mm)
Dimensi Keluar: 12.7mm-114.3mm
Ketebalan Dinding: 0.8mm-15mm
Panjang: 5-25mm
Persyaratan Kimia:
| STANDAR | KELAS | KOMPOSISI KIMIA | |||||||||
| C | Si | M N | P. | S | Kr | Mo | Cu | Ni | V. | ||
| ASTM A210 | A-1 | ≤0.27 | ≥0.10 | ≤0.93 | ≤0.035 | ≤0.035 | |||||
| C | ≤0.35 | ≥0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ||||||
Peralatan mekanis:
| Kelas | Kekuatan Hasil (Mpa) | Kekuatan Tarik (Mpa) | Perpanjangan (%) |
| A-1 | ≥255 | ≥415 | 30 |
| C | ≥275 | ≥485 | 30 |
Toleransi Ketebalan Dinding
ASME SA-210 |
OD | WT | Toleransi WT |
| <= 38.1 | / | +20%, - 0% | |
| > 38.1 | / | +20%, - 0% |
Deskripsi:
ASTM A210 adalah penutup standar boiler baja karbon menengah mulus dan tabung superheater. ASTM A210 juga mencakup ketebalan dinding minimum, ukuran tubing, cerobong boiler termasuk ujung yang aman, lengkungan dan tabung penahan.ASTM A210 memberikan sifat tarik dan kekerasan tetapi hanya berlaku untuk batasan ukuran tertentu.Pembuatan material harus dimatikan.Tabung harus dibuat dengan proses yang mulus, ditandai sebagai selesai panas atau selesai dingin.Kondisi permukaan harus disebutkan secara spesifik dalam pesanan.Komposisi kimiawi harus sesuai dengan persyaratan.Komposisi unsur selain yang tercantum di sini tidak diizinkan.Uji tegangan, uji perataan, uji pembakaran, uji kekerasan, uji hidrostatis atau uji listrik nondestruktif harus dilakukan pada spesimen.Tabung superheater harus dibentuk tanpa cacat dan harus tahan terhadap ekspansi, manik-manik, penempaan, pengelasan, dan pembengkokan.
ASTM A210 / A210M Seamless Medium-Carbon Steel Boiler Tubes
Boiler Baja Karbon Menengah dan Tabung Superheater
Baja grde:
Kelas A1;Kelas C
Pengepakan:

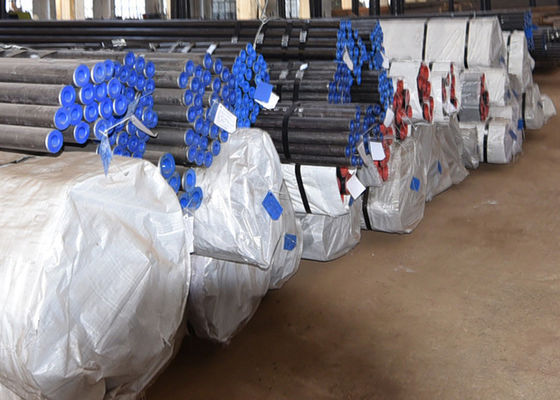

Miring / lukisan hitam / tutup plastik / dalam bundel / strip baja / pelindung kayu
Inspeksi dan Tes:
Pemeriksaan Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Luluh, Perpanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Nodestruktif, Uji Hidrostatis.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Menandai:
Seperti yang diminta.
Kondisi pengiriman:
Anil, Normalisasi, Normalisasi dan Tempered
Uji pabrik dan istilah lainnya:
1. Uji Listrik Hidrostatis atau Tidak Merusak
2. Perlakuan Panas: menurut Standar
3. Kondisi Permukaan: Sesuai Standar.
4. Ukuran Butir: Sesuai standar
5. Sampling: perataan, pembakaran, ukuran butir, Penandaan
6. Kami menyediakan bevel end, plastic cap, varnish coating, oiled atau black painted untuk mencegah karat dan packing lainnya
layanan.
Aplikasi:
1, Untuk evaporator, penukar panas, kondensor, peralatan perpindahan panas dan pipa serupa.
2, Banyak digunakan di bidang perawatan mekanik, industri petrokimia, transportasi dan bidang konstruksi
3, Tujuan struktural biasa dan tujuan struktural mekanik, misalnya di bidang konstruksi, bantalan tumpu dll;
4, Pengangkutan cairan dalam proyek dan peralatan besar, misalnya transportasi air, minyak, gas dll
5, Dapat digunakan dalam boiler bertekanan rendah dan sedang untuk pengangkutan cairan, misalnya tabung uap, tabung asap besar, tabung asap kecil, tabung pembangkit dll
