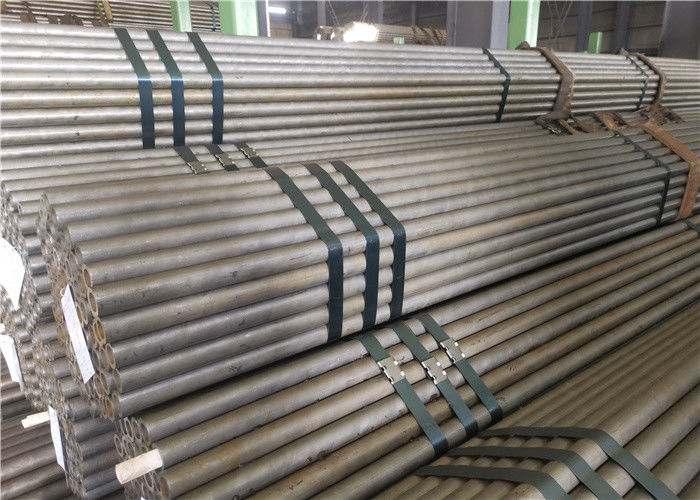

Kualitas Tinggi ASME Cold Drawn Sa210 A1 OD630mm Seamless Boiler Tubes
Product Details
| Kualitas baja: | ASTM, SA192 | Aplikasi: | Boiler & penukar panas, Superheater, Reheater, Air preheater, Economizer, drum uap, manifold hea |
|---|---|---|---|
| OD: | 6-630mm | WT: | 1-60mm |
| Panjangnya: | 6000mm | Bahan: | Baja Karbon (20 #, 20G, SA192, A-1) |
| Menyoroti |
Sa210 A1 Seamless Boiler Tubes,Cold Drawn Seamless Boiler Tubes,Seamless Boiler Tubes OD630mm |
||
Product Description
Tabung Boiler Seamless Baja Karbon Dengan Gambar Dingin Dan Cold Rolling Sa210 A1
Aplikasi:
Untuk Boiler, Superheater,
Penukar panas,
Boiler bertekanan tinggi,
Ketel Uap
Kondensor Dingin dan Layanan Tekanan Tinggi,
Layanan Suhu Tinggi untuk Konstruksi Boiler
Memproduksi Mothod:
Tabung diproduksi dengan proses yang mulus dan dapat digunakan dengan finishing panas dan dingin.boiler pipa dan pipa baja seamless adalah kekuatan kami di pasar dunia untuk USA, Middile East Market.
Perawatan panas:
Tabung jadi panas tidak perlu diberi perlakuan panas. Tabung jadi dingin diberi perlakuan panas setelah pelepasan akhir dingin akhir pada suhu 1200 ℉ (650 ℃) atau lebih tinggi
Kelas baja SA192 Komposisi Kimia & Sifat Mekanik
|
C
|
M N
|
P.
|
S
|
Si
|
Kekuatan tarik
|
Poin Yeild
|
Pemanjangan
|
|
0,06-0,18
|
0,27-0,63
|
0,035Maks
|
0,035Maks
|
0,25Maks
|
min ksi [Mpa] 47 [325]
|
min ksi [Mpa] 26 [180]
|
≥35%
|
Grade dan Komposisi Kimia (%):
| STANDAR | KELAS | KOMPOSISI KIMIA | |||||||||
| C | Si | M N | P. | S | Kr | Mo | Cu | Ni | V. | ||
| ASTM A179 | A179 | ≤0.06-0.18 | / | 0,27-0,63 | ≤0.035 | ≤0.035 | |||||
| ASME SA106 | SA106B | 0.170.25 | ≥0.1 | 0.701.00 | ≤0.030 | ≤0.030 | ≤0.035 | ||||
| ASTM A106 | SEBUAH | ≤0.25 | ≤0.10 | 0.270.93 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 |
| B | ≤0.30 | ≤0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 | |
| C | ≤0.35 | ≤0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.15 | ≤0.40 | ≤0.40 | ≤0.08 | |
| ASTM A53 | SEBUAH | 0.25 | / | 0.95 | 0,05 | 0,045 | 0.40 | 0.15 | 0.40 | 0.40 | 0,08 |
| B | 0.3 | / | 1.2 | 0,05 | 0,045 | 0.40 | 0.15 | 0.40 | 0.40 | 0,08 | |
Peralatan mekanis:
| Peralatan mekanis | |||
| Bahan |
Kekuatan Tarik Min N / mm2 |
Min.Menghasilkan kekuatan N / mm2 |
Perpanjangan Min % |
| A179 | 325 | 180 | 35 |
Kontrol Toleransi:
| OD Dalam (mm) | + | - | WT Dalam (mm) | + | - |
| <1 (25,4) | 0.10 | 0.10 | ≤1.1 / 2 (38.1) | 20% | 0 |
| 1∼1.1 / 2 (25.4∼38.1) | 0.15 | 0.15 | > 1.1 / 2 (38.1) | 22% | 0 |
| > 1.1 / 2∼ <2 (38.1∼50.8) | 0.20 | 0.20 | / | / | / |
| 2∼ <2.1 / 2 (50.8∼63.5) | 0.25 | 0.25 | / | / | / |
| 2.1 / 2∼ <3 (63.5∼76.2) | 0.30 | 0.30 | / | / | / |
| 3∼4 (76,2∼101,6) | 0.38 | 0.38 | / | / | / |
Kekerasan
|
Kekerasan Brinell
|
Nomor Kekerasan Rockwell
|
|
WT≥0.200in (5.1mm)
|
WT <0,200 inci (5,1 mm)
|
|
137HRB
|
77HRB
|
KONTROL KUALITAS
1 ~ Inspeksi Bahan Baku Masuk
2 ~ Pemisahan Bahan Baku untuk menghindari campuran kelas baja
3 ~ Pemanasan dan Hammering End untuk Cold Drawing
4 ~ Gambar Dingin dan Penggulungan Dingin, inspeksi on line
5 ~ Perlakuan Panas, + A, + SRA, + LC, + N, Q + T
6 ~ Penegakan-Pemotongan ke Panjang yang ditentukan-Pemeriksaan Pengukuran Selesai
7 ~ Pengujian Machanical di laboratorium sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Kekerasan, Dampak, Mictrostruture dll

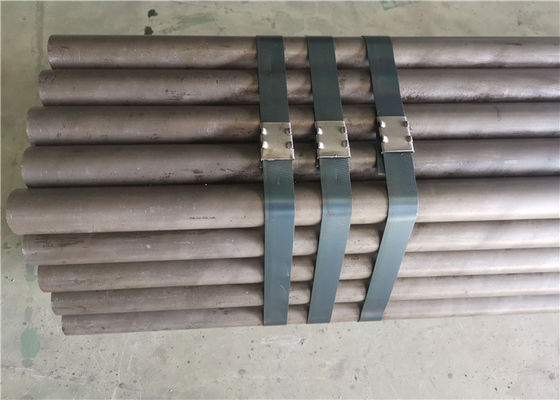

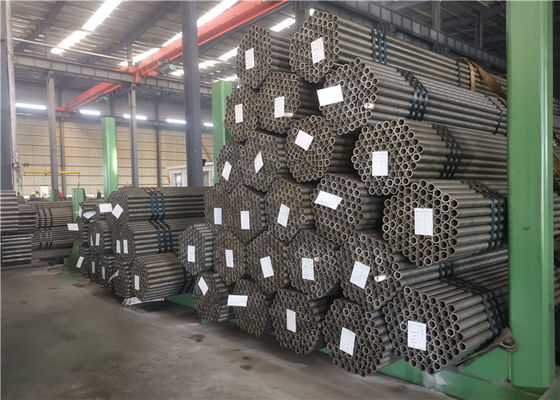

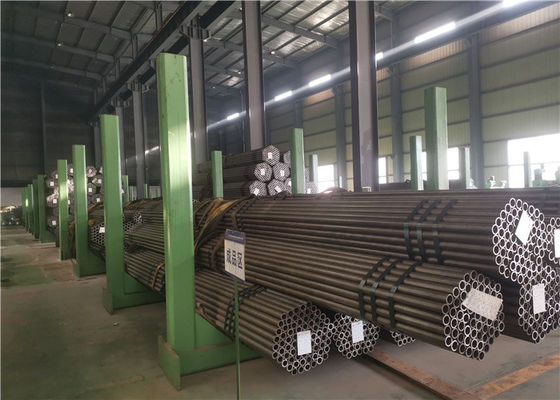

8 ~ Packing dan Stocking.
Teknologi Energi Hua Dong adalah salah satu pemasok terpercaya dan paling terkemuka ASTM A192 bahan baja untuk berbagai aplikasi Anda.Hubungi kami untuk penawaran atau pertanyaan teknis apa pun.Kami ingin mendengar pendapat Anda.
