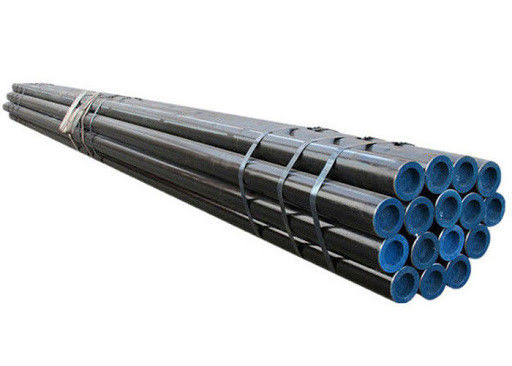

ASTM A269 / A269M-15A 38.1X1.59MM Tabung Baja Boiler
Product Details
| Standar: | JIS, AISI, ASTM, GB, DIN, EN | Bahan: | TP304L |
|---|---|---|---|
| Spesifikasi: | ASTM A269 / A269M-15A 38.1X1.59MM Steel Boiler Tube / tabung boiler mulus / pipa baja seamless | Paket: | Paket Standar Layak Laut |
| Pengolahan: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Bentuk: | Bulat |
| Menyoroti |
Tabung Baja Boiler 38.1X1.59MM,Tabung Baja Boiler ASTM A269,Tabung Baja Boiler A269M-15A |
||
Product Description
Deskripsi
HDT berurusan dengan pipa dan tabung mulus stainless steel sudah lebih dari 10 tahun, setiap tahun menjual lebih dari 80000 ton pipa dan tabung mulus stainless steel.Klien kami sudah mencakup lebih dari 45 negara.Pipa dan tabung mulus stainless steel kami lebar digunakan di Pertambangan, Energi, Petrokimia, Industri Kimia, Pabrik makanan, Pabrik kertas, Industri Gas dan Cairan dll.ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS
Komposisi Kimia:
C,% | M N, % | P, % | S, % |
0,06-0,18 | 0,27-0,63 | 0,035 maks | 0,035 maks |
Peralatan mekanis:
Kekuatan Tarik, MPa | Kekuatan Hasil, MPa | Perpanjangan, % | Kekerasan, HRB |
325 menit | 180 menit | 35 menit | 72 maks |
Diameter & Toleransi Luar
Diameter Luar, mm | Toleransi, mm |
3.2≤OD＜25.4 | ±0,10 |
25.4≤OD≤38.1 | ± 0,15 |
38.1＜OD＜50.8 | ±0,20 |
50.8≤OD＜63.5 | ±0,25 |
63.5≤OD＜76.2 | ±0,30 |
76.2 | ±0,38 |
Ketebalan & Toleransi dinding
Diameter Luar, mm | Toleransi, % |
| 3.2≤OD＜38.1 | +20/-0 |
38.1≤OD≤76.2 | +22/-0 |
Industri Aplikasi
- Perusahaan Pengeboran Minyak Lepas Pantai
- Pembangkit listrik
- Petrokimia
- Pemrosesan Gas
- Bahan Kimia Khusus
- Farmasi
- Peralatan Farmasi
- Peralatan Kimia
- Peralatan Air Laut
- Penukar panas
- Kondensor
