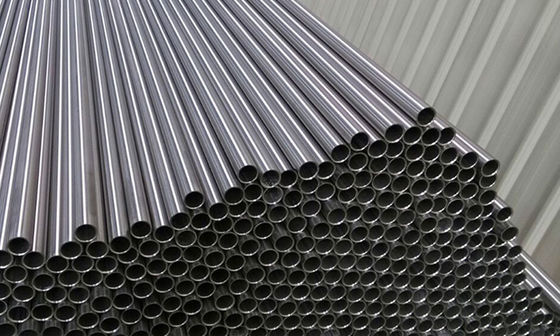

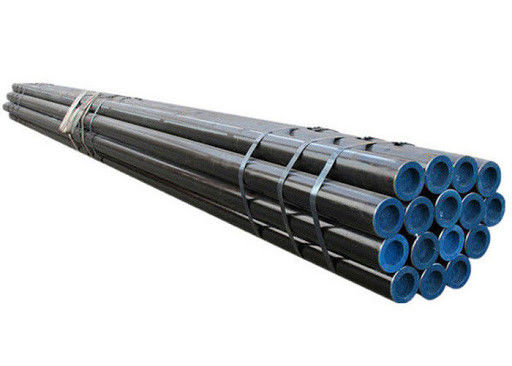

DIN 2391 ST52.4 EN 10305-1 Tabung Baja Dingin
Product Details
| Standar: | JIS, AISI, ASTM, GB, DIN, EN | Bahan: | TP304L |
|---|---|---|---|
| Spesifikasi: | ASTM A269 / A269M-15A 38.1X1.59MM Steel Boiler Tube / tabung boiler mulus / pipa baja seamless | Paket: | Paket Standar Layak Laut |
| Pengolahan: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Bentuk: | Bulat |
| Menyoroti |
EN 10305-1 Tabung Baja Ditarik Dingin,DIN 2391 Tabung Baja Ditarik Dingin,ST52.4 Tabung Baja Ditarik Dingin |
||
Product Description
Deskripsi
HDT berurusan dengan pipa dan tabung mulus stainless steel sudah lebih dari 10 tahun, setiap tahun menjual lebih dari 80000 ton pipa dan tabung mulus stainless steel.Klien kami sudah mencakup lebih dari 45 negara.Pipa dan tabung mulus stainless steel kami lebar digunakan di Pertambangan, Energi, Petrokimia, Industri Kimia, Pabrik makanan, Pabrik kertas, Industri Gas dan Cairan dll.ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS
DIN 2391 Tabung Baja Presisi Mulus Sifat Mekanik
| Jenis pipa | Nilai baja | Sifat resistansi minimum | |||||||||||
| +C | +LC | +SR | +A | +N | |||||||||
| RM [MPa] | SEBUAH% | RM [MPa] | SEBUAH% | RM [MPa] | Kembali [MPa] | SEBUAH% | RM [MPa] | SEBUAH% | RM [MPa] | Kembali [MPa] | SEBUAH% | ||
| Pipa baja mulus yang presisi St35, St45, St52 Menurut DIN 2391 | St 35 | 480 | 6 | 420 | 10 | 420 | 350 | 14 | 315 | 25 | 340- 470 | 235 | 25 |
| St 45 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440- 570 | 255 | 21 | |
| St 52 | 640 | 4 | 580 | 7 | 580 | 420 | 10 | 490 | 22 | 490- 630 | 355 | 22 |
|
DIN 2391 Komposisi Kimia Tabung Baja Presisi Mulus
| Kelas | Proses Mfg | Komposisi kimia(%) | ||||||||
| C | Si | M N | P | S | Ni | Cr | Mo | Lainnya | ||
| St30Si | S | 0,10 Maks | 0,30 Maks | 0,55 Maks | 0,040 Maks | 0,040 Maks | - | - | - | - |
| St30A1 | S | 0,10 Maks | 0,05 Maks | 0,55 Maks | 0,040 Maks | 0,040 Maks | - | - | - | Al terdeoksidasi |
| St35 | S | 0.17Maks | 0,35 Maks | 0,40 Maks | 0,050 Maks | 0,050 Maks | - | - | - | - |
| St45 | S | 0,21 Maks | 0,35 Maks | 0,40 Maks | 0,050 Maks | 0,050 Maks | - | - | - | - |
| St52 | S | 0,22 Maks | 0,55 Maks | 1.60Maks | 0,050 Maks | 0,050 Maks | - | - | - | - |
Spesifikasi
| Standar | DIN 2391-1 Tabung Ditarik Dingin |
| DIN 2391-1 Ukuran Pipa Seamless Cold Drawn | 4 hingga 219mm WT: 0,5 hingga 20mm |
| DIN 2391-1 Ukuran Pipa Dilas Dingin Ditarik | 5,0 mm – 1219,2 mm |
| DIN 2391-1 Ukuran Pipa EFW Cold Drawn | 5,0 mm – 1219,2 mm |
| DIN 2391-1 Cold Drawn Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DIN 2391-1 Jadwal Pipa Cold Drawn | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| DIN 2391-1 Ukuran Tabung Mulus Dingin Ditarik | 3,35 mm OD Sampai 101,6 mm OD |
| DIN 2391-1 Ukuran Tabung Dilas Dingin Ditarik | 6,35 mm OD Sampai 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DIN 2391-1 Ketebalan dinding Cold Drawn Tube | 0,020" –0,220", (ketebalan dinding khusus tersedia) |
| Panjangnya | Pipa & Tabung Acak Tunggal, Acak Ganda, Standar & Panjang |
| Selesai | Dipoles, AP (Anil & Acar), BA (Terang & Anil), MF |
| Untuk m | Bulat, Hidrolik, 'U' bengkok atau Berongga, LSAW, Boiler, Pipa Lurus, Pipa Berpakaian, Persegi Panjang, Pipa Persegi Dll |
| Tipe | Dilas, Seamless, ERW, EFW, Pipa Fabrikasi, 'U' bengkok atau Hollow, Hidrolik, LSAW, Boiler, Tabung Lurus, Tube Coil, Bulat, Persegi Panjang, Tabung Persegi dll |
| Akhir | Ujung Polos, Ujung Miring, Pipa & Tabung Berinjak |
| Aplikasi | Pipa & Tabung Minyak, Pipa & Tabung Gas, Pipa & Tabung Fluida, Pipa & Tabung Boiler, Tabung Penukar Panas |
| Layanan Nilai Tambah | Gambar & Ekspansi sesuai kebutuhan Ukuran & Panjang, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Dll. |
Industri Aplikasi
- Perusahaan Pengeboran Minyak Lepas Pantai
- Pembangkit listrik
- Petrokimia
- Pemrosesan Gas
- Bahan Kimia Khusus
- Farmasi
- Peralatan Farmasi
- Peralatan Kimia
- Peralatan Air Laut
- Penukar panas
- Kondensor
