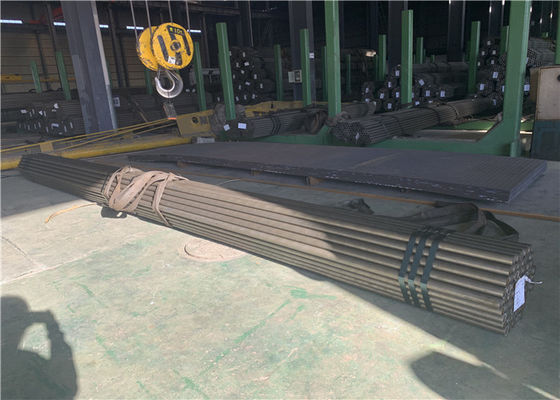

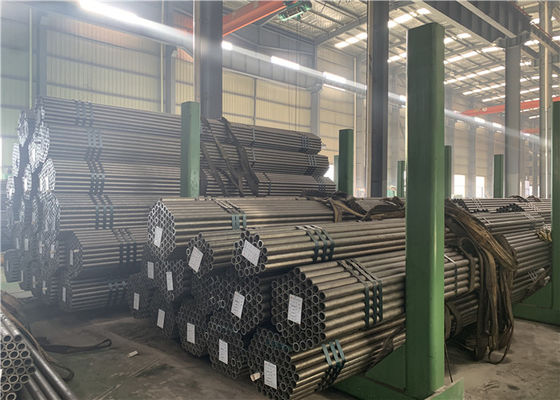

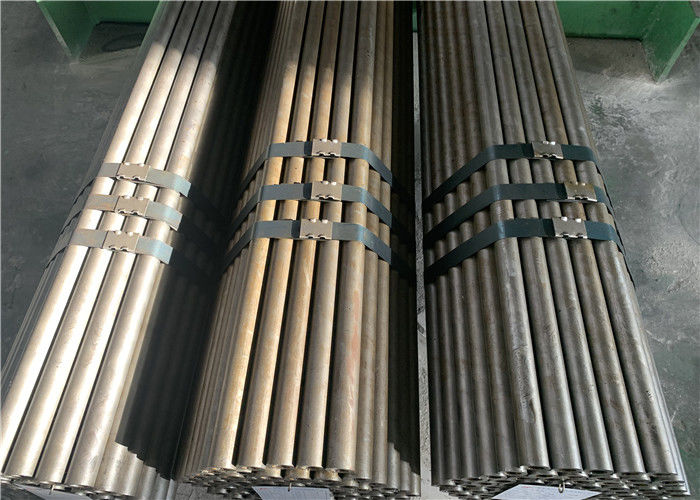

Tekanan Tinggi SA192 Seamless Boiler Tube Untuk Evaporator
Product Details
| Nama Produk: | Tabung Penukar Panas Baja Karbon Tabung Seamless | Aplikasi: | Penukar Panas Boiler |
|---|---|---|---|
| Standar: | ASME / ASTM | Bahan: | SA210A1 |
| Menyoroti |
Tabung Boiler Seamless SA192,Tabung Boiler Seamless Tekanan Tinggi,Tabung Evaporator Seamless SA192 |
||
Product Description
Tabung Baja Boiler SA192 Mulus Untuk Evaporator Boiler, Tekanan Tinggi Superheater
Carbon Steel Boiler Tube Heat Exchanger Seamless Tube DIN2391 ST37.4 NBK 12 * 1MM
DIN2391 Presisi Cold Drawn Seamless Pipes and Tubes, Gr St35 St45 St52 St37.4, Cold Finished Seamless Pipe digunakan untuk Hidrolik dan Pneumatik.
Status Pengiriman: NBK (+ N) BKW (+ LC) GBK (+ A) BKS (+ SR) BK (+ C) OD x WT = 4 ~ 120 x 0,5 ~ 15mm
DIN2391 St52.4 + N Tabung Hidrolik Fosfat
Komposisi kimia:
| Produk | Ttem | Kelas | Komposisi kimia | |||||||
| C | Si | M N | P.≤ | S.≤ | Kr | Ni | orang lain | |||
| Baja karbon | 1 | 10 | 0,07 / 0,13 | 0,17 / 0,37 | 0,35 / 0,65 | 0,03 | 0,03 | ≤0.15 | ≤0.30 | Cu≤0.25 |
| 2 | 20 | 0,17 / 0,23 | 0,17 / 0,37 | 0,35 / 0,65 | 0,03 | 0,03 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
| 3 | A179 | 0,06 / 0,18 | - | 0,27 / 0,63 | 0,03 | 0,03 | - | - | - | |
| 4 | A192 | 0,06 / 0,18 | ≤0.25 | 0,27 / 0,63 | 0,03 | 0,03 | - | - | - | |
Peralatan mekanis:
| Barang | Menandai | Properti tarik | Kekerasan | ||||
| Kekuatan ekstensi Rm Mpa | Kekuatan luluh lebih rendah Rel atau Rp0,2 MPa | Kekuatan luluh rendah ReL atau Rp0.2 Mpa | |||||
| Ketebalan | Ketebalan | ||||||
| ≤16 | > 16 | <5.1 | ≥5.1 | ||||
| ≥ | ≤ | ||||||
| 1 | 10 | 335 ~ 475 | 205 | 195 | 24 | - | - |
| 2 | 20 | 410 ~ 530 | 245 | 235 | 20 | - | - |
| 3 | A179 | ≥325 | 180 | 35 | - | - | |
| 4 | A192 | ≥325 | 180 | 35 | 77HRB | 137HB | |
Aplikasi:
1, Untuk evaporator, penukar panas, kondensor, peralatan perpindahan panas dan pipa serupa.
2, Banyak digunakan di bidang perawatan mekanik, industri petrokimia, transportasi dan bidang konstruksi
3, Tujuan struktural biasa dan tujuan struktural mekanik, misalnya di bidang konstruksi, bantalan tumpu dll;
4, Pengangkutan cairan dalam proyek dan peralatan besar, misalnya transportasi air, minyak, gas dll
5, Dapat digunakan dalam boiler bertekanan rendah dan sedang untuk pengangkutan cairan, misalnya tabung uap, tabung asap besar, tabung asap kecil, tabung pembangkit dll
