304L 316L 304 Stainless Steel ASTM A213 Tabung Penukar Panas
Product Details
| Standar: | <i>ASTM A213 ;</i> <b>ASTM A213;</b> <i>ASTM A269 ;</i> <b>ASTM A269;</b> <i>ASTM A312 ;</i> <b>ASTM | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | Diameter luar 4mm -101.6mm | Ketebalan: | 0.4mm-3.0mm |
| Menyoroti |
ASTM A213 Heat Exchanger Tubes,304L Heat Exchanger Tubes,316L Heat Exchanger Tubes |
||
Product Description

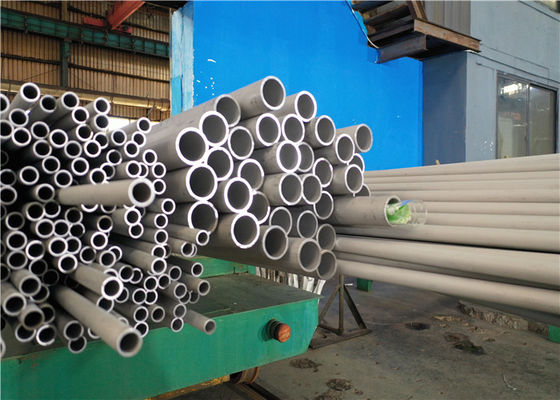

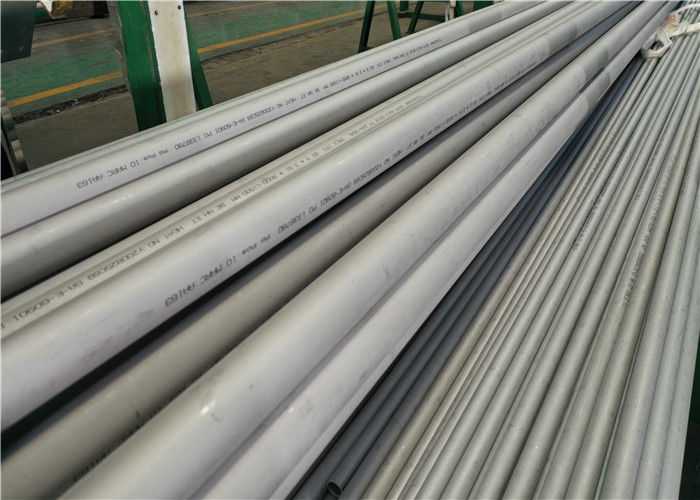

Tabung Stainless Steel untuk Pipa Heat Exchanger Tubes 304L 316L 304
Tabung stainless steel untuk penukar panas, evaporater, boiler, kondensor, knalpot, pendingin
Spesifikasi:
1) Diameter: 4 - 76.2mm
2) WT: 0,4 - 2,5 mm
3) Nilai: 316L / 304 / 304L / 310S, dll.
4) standar: GB / ISO / EN / ASTM / JIS, dll.
5) rentang aplikasi: banyak digunakan dalam bahan makanan, peralatan medis, listrik, ketel, pendingin, mobil, kondensor dll.
6) kemasan: kemasan dalam: 1 pc / kantong plastik; kemasan luar: bundel dalam tas tenun atau dalam kotak kayu lapis.
| Jalur luar pada deviasi kelas mm tabel 3 | Lintasan luar dalam deviasi kelas mm tabel 4 | |||||||||||||||||||||||||||||
|
|
Tebal deviasi masuk (tidak termasuk jahitan las) di dinding tabung las adalah untuk mengatur tebal dinding 10% dari ±, tetapi deviasi masuk minimum adalah 0,02 mms dari ±.
Pengelasan menangani panjang kaki Cina stabil sebagai 3 ms ~ 9 ms, umumnya menyelesaikan kaki Cina dengan 6 ms.
Lasan menangani penyelesaian panjang kaki Cina biasanya panjang, deviasi masuknya adalah 5 mms dari ±.
Mengadopsi sebagian derajat sentakan dalam tabung lasuntuk menjaga ukuran kaki Cina tidak boleh terlalu dalam 2,0 mms.
Fungsi mesin melihat tabel 5
tabel 5
| Nomor baja | Nomor kartu | Pegangan panas Buat gelar |
Yang anti menarik kekuatan MPa |
Terimalah kekalahan kekuatan MPa |
Tingkat ekstensi% | Tingkat kekerasanHRB |
| 0Cr19N19 | 304 | ≥1010 ° C Jahat dan dingin |
≥520 | ≥205 | 40 | ≤90 |
| 00Cr19Ni11 | 304L | "" | ≥480 | ≥175 | 40 | ≤90 |
| 0Cr17Ni12M02 | 316 | "" | ≥520 | ≥205 | 40 | ≤90 |
| 0Cr17Ni14M02 | 316L | "" | ≥480 | ≥175 | 40 | ≤90 |
| 0Cr18Ni11Ti | 321 | ≥920 ° C Jahat dan dingin |
≥520 | ≥205 | 40 | ≤90 |
