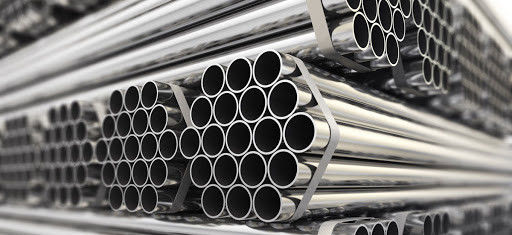

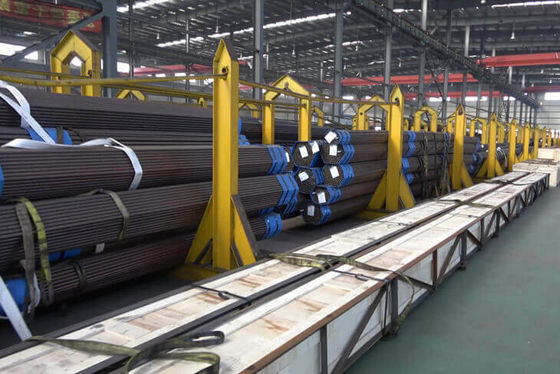

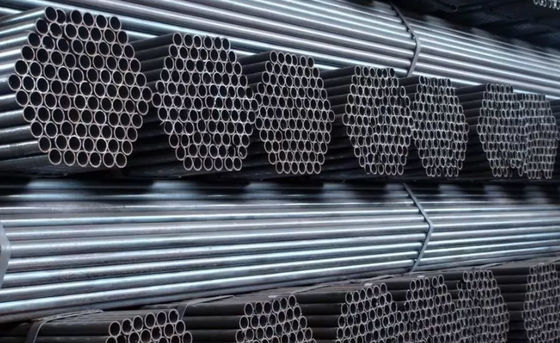

Tabung Baja Boiler ASTM A213 / ASME SA213 T9 T91 T92
Product Details
| Standar: | JIS, AISI, ASTM, GB, DIN, EN | Bahan: | TP304L |
|---|---|---|---|
| Spesifikasi: | ASTM A269 / A269M-15A 38.1X1.59MM Steel Boiler Tube / tabung boiler mulus / pipa baja seamless | Paket: | Paket Standar Layak Laut |
| Pengolahan: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Bentuk: | Bulat |
| Menyoroti |
Tabung baja boiler ASTM A213,tabung baja boiler ASME SA213,Tabung Baja Boiler T92 |
||
Product Description
Deskripsi
HDT berurusan dengan pipa dan tabung stainless steel seamless sudah lebih dari 10 tahun, setiap tahun menjual lebih dari 80000 ton pipa dan tabung stainless steel seamless.Klien kami sudah mencakup lebih dari 45 negara.Pipa dan tabung seamless stainless steel kami banyak digunakan di Pertambangan, Energi, Petrokimia, Industri Kimia, Pabrik Makanan, Pabrik Kertas, Industri Gas dan Cairan dll.ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Ketebalan Dinding mm | |||||||||
| 0,508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg / m | |||||||
| 6.35 | 1/4 | 0,081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0,356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0,356 | 0.457 | 0,612 | 0,754 | ||
| 15.88 | 5/8 | 0.271 | 0,334 | 0.455 | 0,588 | 0.796 | 0,995 | ||
| 19.05 | 3/4 | 0,327 | 0.405 | 0,553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
Komposisi Kimia dan Sifat Mekanik
| Kelas | Komposisi kimia% | ||||||||
| C | Si | M N | P, S Maks | Kr | Mo | Ni Max | V. | Al Max | |
| T2 | 0,10 ~ 0,20 | 0,10 ~ 0,30 | 0,30 ~ 0,61 | 0,025 | 0,50 ~ 0,81 | 0,44 ~ 0,65 | - | - | - |
| T11 | 0,05 ~ 0,15 | 0,50 ~ 1,00 | 0,30 ~ 0,60 | 0,025 | 1,00 ~ 1,50 | 0,44 ~ 0,65 | - | - | - |
| T12 | 0,05 ~ 0,15 | Maks 0,5 | 0,30 ~ 0,61 | 0,025 | 0,80 ~ 1,25 | 0,44 ~ 0,65 | - | - | - |
| T22 | 0,05 ~ 0,15 | Maks 0,5 | 0,30 ~ 0,60 | 0,025 | 1.90 ~ 2.60 | 0.87 ~ 1.13 | - | - | - |
| T91 | 0,07 ~ 0,14 | 0,20 ~ 0,50 | 0,30 ~ 0,60 | 0,02 | 8.0 ~ 9.5 | 0,85 ~ 1,05 | 0.4 | 0,18 ~ 0,25 | 0,015 |
| T92 | 0,07 ~ 0,13 | Maks 0,5 | 0,30 ~ 0,60 | 0,02 | 8.5 ~ 9.5 | 0,30 ~ 0,60 | 0.4 | 0,15 ~ 0,25 | 0,015 |
| Kelas | Komposisi kimia% | Peralatan mekanis | |||||||
| W | B | Nb | N | T. S | Y. P | Pemanjangan | Kekerasan | ||
| T2 | - | - | - | - | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T11 | - | - | - | - | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T12 | - | - | - | - | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW (85HRB) | |
| T22 | - | - | - | - | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T91 | - | - | 0,06 ~ 0,10 | 0,03 ~ 0,07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW (25HRB) | |
| T92 | 1,50 ~ 2,00 | 0,001 ~ 0,006 | 0,04 ~ 0,09 | 0,03 ~ 0,07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW (25HRB) | |
Toleransi ASTM A213 / ASME SA213 T2, T11, T12, T22, T91, T92
| Diameter luar | Toleransi OD | Toleransi WT | Toleransi Ovitas | Toleransi Panjang Potong |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15% | - | + 3, 18 mm, - 0 mm |
| 12, 7 mm <OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10% | maks, 1, 65 mm | + 3, 18 mm, - 0 mm |
| 38, 1 mm <OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10% | maks, 2, 41 mm | + 4, 76 mm, - 0 mm |
Industri Aplikasi
- Perusahaan Pengeboran Minyak Off-Shore
- Pembangkit listrik
- Petrokimia
- Pengolahan Gas
- Bahan Kimia Khusus
- Farmasi
- Peralatan Farmasi
- Peralatan Kimia
- Peralatan Air Laut
- Penukar panas
- Kondensor
