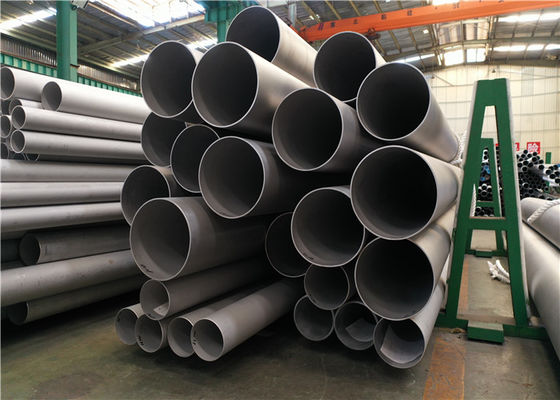

0.4mm ASTM A789 EN10216-5 Tabung Baja Tahan Karat Mulus
Product Details
| Standar: | <i>ASTM A213 ;</i> <b>ASTM A213;</b> <i>ASTM A269 ;</i> <b>ASTM A269;</b> <i>ASTM A312 ;</i> <b>ASTM | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | Diameter luar 4mm -101.6mm | Ketebalan: | 0.4mm-3.0mm |
| Menyoroti |
EN10216-5 Seamless Stainless Steel Tubing,ASTM A789 Seamless Stainless Tube,0.4mm Seamless Stainless Steel Tubing |
||
Product Description
ASTM A213, ASTM A269, ASTM A312, ASTM A789, EN10216-5-pipa baja tahan karat mulus
Tabung stainless steel untuk heat exchanger, evaporater, boiler, kondensor, muffler, cooler
Spesifikasi:
1) Diameter: 4 - 76.2mm
2) WT: 0,4 - 2,5 mm
3) Nilai: 316L / 304 / 304L / 310S, dll.
4) standar: GB / ISO / EN / ASTM / JIS, dll.
5) rentang aplikasi: banyak digunakan dalam bahan makanan, peralatan medis, listrik, ketel, pendingin, mobil, kondensor dll.
6) kemasan: kemasan dalam: 1 pc / kantong plastik; kemasan luar: bundel dalam tas tenun atau dalam kotak kayu lapis.
| Jalur luar pada deviasi kelas mm tabel 3 | Lintasan luar dalam deviasi kelas mm tabel 4 | |||||||||||||||||||||||||||||
|
|
| Nama Produk | Tabung Stainless Steel Dinding Tebal |
|
Kelas Material
|
201 (Ni 0,8%),
202 (Ni 3,5% ~ 4,5%), 301 (Ni 5%) 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10% ~ 14%), |
|
Permukaan
|
2B, NO.1, NO.2D, NO.2B, BA, NO.3, NO.4, NO.240, NO.400, Hairline, NO.8, Brushed atau sesuai permintaan |
|
Ketebalan dinding
|
0,3-150 mm
|
|
Diameter luar
|
4mm-2500mm
|
|
Panjangnya
|
6m atau sebagai permintaan pelanggan
|
|
Pembayaran
|
T / T, L / C
|
|
Mesin
|
Kustom, Kaiping, pemotongan, pola
|
|
Bekas
|
Pabrik, dekorasi, makanan
|
Tebal deviasi masuk (tidak termasuk jahitan las) di dinding tabung las adalah untuk mengatur tebal dinding 10% dari ±, tetapi deviasi masuk minimum adalah 0,02 mms dari ±.
Pengelasan menangani panjang kaki Cina stabil sebagai 3 ms ~ 9 ms, umumnya menyelesaikan kaki Cina dengan 6 ms.
Lasan menangani penyelesaian panjang kaki Cina biasanya panjang, deviasi masuknya adalah 5 mms dari ±.
Mengadopsi sebagian derajat sentakan dalam tabung lasuntuk menjaga ukuran kaki Cina tidak terlalu dalam 2,0 mms.
Fungsi mesin melihat tabel 5
Tabel 5
| Nomor baja | Nomor kartu | Pegangan panas Buat gelar |
Anti-tarik kekuatan MPa |
Terimalah kekalahan kekuatan MPa |
Tingkat ekstensi% | Tingkat kekerasanHRB |
| 0Cr19N19 | 304 | ≥1010 ° C Jahat dan dingin |
≥520 | ≥205 | 40 | ≤90 |
| 00Cr19Ni11 | 304L | "" | ≥480 | ≥175 | 40 | ≤90 |
| 0Cr17Ni12M02 | 316 | "" | ≥520 | ≥205 | 40 | ≤90 |
| 0Cr17Ni14M02 | 316L | "" | ≥480 | ≥175 | 40 | ≤90 |
| 0Cr18Ni11Ti | 321 | ≥920 ° C Jahat dan dingin |
≥520 | ≥205 | 40 | ≤90 |
