A179 / A192 T5 T11 T22 Tabung Baja Boiler Untuk Industri Tenaga
Product Details
| Nama Produk: | Tabung baja mulus | Aplikasi: | Tabung Boiler |
|---|---|---|---|
| Ketebalan: | 1-55mm | Teknik: | Tekanan tinggi |
| Panjangnya: | 2-20Meter | Pengepakan: | Bundel |
| Menyoroti |
A179 Tabung Baja Boiler,Tabung Baja Boiler A192,Tabung Baja Boiler T5 |
||
Product Description
A179 / A192 T5 T11 T22 Pipa / Tabung Boiler Baja Seamless Untuk Industri Tenaga
Aplikasi
Boiler, Superheater, Kondensor dan Heat-exchanger
Rentang Ukuran
OD: 12,7-127 mm
WT: 2,2-15 mm
Panjang: 3m-12m atau sesuai dengan kebutuhan Anda
- Kemampuan Supply: 12000 Metric Ton / Metric Ton per Bulan

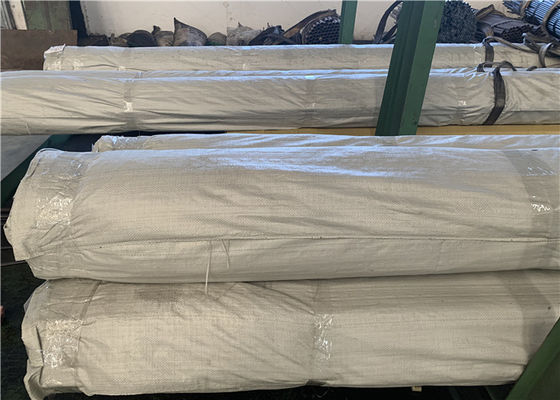

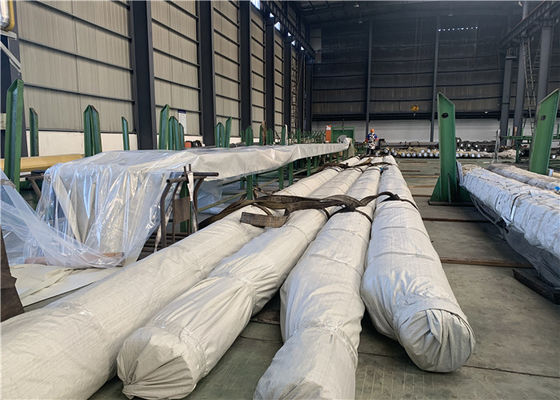

- Detail Kemasan: Bundel atau longgar
- Pelabuhan: Tianjin Qingdao Shanghai
- Waktu Pimpin:
-
Kuantitas (Metrik Ton) 1 - 50 > 50 Est.Waktu (hari) 30 Untuk dinegosiasikan
Rincian:
SA179 Carbon Steel Seamless Boiler Tube, SA210A1 High Pressure Boiler Seamless Rifled Tube SA213 T2, bahan T12
| Barang | Detail |
| Tipe | Mulus |
| Standar | ASTM A106.ASME SA106, API 5L, ASTM A53, ASME SA53, DIN17175, DIN1629 / DIN2448, ASTM A179, ASME SA179, ASTM A192, ASME SA192, ASTM A210, ASME SA210, ASTM A335 BS3059, BS3059 BAG II GR.360.440, GR.620-460, GR.622-490.629-470 |
| Kelas |
B, X42, X46, X52, X56, X60.ASME SA179, ASME SA192, ASME SA210 A1 C ASME SA335-P5, P9, P11, P12, P15, P21, P22, P23, P91, P92. ASME SA213-T2, T5, T9, T11, T12, T17, T21, T22, T23, T24, T36, T91, T92 DIN17175, ST35.8, ST45.8,17MN4,19MN5,15MO3,13CRMO44,10CRMO910,14MOV63 EN10216-1, .P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2. EN10216-2, P195GH, P235GH, P265GH, 16MO3,25CRMO4 (TC1, TC2) GBT5310,20G.20MNG, 25MNG, 15MOG, 20MOG, 12CRMOG, 15CRMOG, 12CR2MOG, 12CR1MOVG, |
| OD | 17.1-1422mm (3/8 inci-56 inci) |
| WT | 1,5-100mm |
| Panjangnya | Panjang acak 1-12.9m, atau Panjang tetap (5.8m, 5.85m, 6m.11.8m.12m) |
| Min. Jumlah pesanan | Kami dapat menerima 1 pcs / ukuran jika kami memiliki stok. |
| Permukaan | , Clear oil varnish. Atau warna sendiri |
| Berakhir | Ujung polos, Bevel. |
| Jangka waktu pembayaran: | TT atau LC |
| Paket | Bundel atau longgar |
| Waktu pengiriman | Tergantung pada pesanan tertentu, biasanya 45 hari |
| Pabrik |
Zhangjiagang Hua Dong Energy Technology Co., Ltd.
|
Tabung Baja Boiler, Tabung Boiler
Standar dan Kelas Baja:
ASTM A106 / ASME SA106 Kelas B, Kelas C;
ASTM A179 / ASME SA179;
ASTM A192 / ASME SA192;
ASTM A210 / ASME SA210 Kelas A1, Kelas C;
ASTM A333 / ASME SA333 Kelas 6;
ASTM A209 / ASME SA209 Kelas T1, T1a, T1b;
ASTM A213 / ASME SA213 T2, T11, T12, T22, T91, T92;
ASTM A335 / ASME SA335 P5, P9, P11, P12, P22, P91, P92;
DIN17175 St35.8, St45.8, 15Mo3, 13CrMo44, 10CrMo910;
EN10216-2 P195GH, P235GH, P265GH;
Ukuran: OD10-168mm X WT1-18mm
Metode Pembuatan: Ditarik Dingin, Hot Rolled.
Aplikasi: Untuk pembuatan boiler, reheater, superheater, heat exchanger, kondensor, dll.
Aplikasi:
1, Untuk evaporator, penukar panas, kondensor, peralatan perpindahan panas dan pipa serupa.
2, Banyak digunakan di bidang perawatan mekanik, industri petrokimia, transportasi dan bidang konstruksi
3, Tujuan struktural biasa dan tujuan struktural mekanik, misalnya di bidang konstruksi, bantalan tumpu dll;
4, Pengangkutan cairan dalam proyek dan peralatan besar, misalnya transportasi air, minyak, gas dll
5, Dapat digunakan dalam boiler bertekanan rendah dan sedang untuk pengangkutan cairan, misalnya tabung uap, tabung asap besar, tabung asap kecil, tabung pembangkit dll
