ASTM A192 Boiler Steel Tube Untuk Pembangkit Listrik Tekanan Tinggi
Product Details
| Nama Produk: | Tabung baja mulus | Aplikasi: | Tabung Boiler |
|---|---|---|---|
| Ketebalan: | 1-55mm | Teknik: | Hot Rolled |
| Panjangnya: | 2-20Meter | Bahan: | Baja karbon |
| Menyoroti |
ASTM A192 Tabung Baja Boiler,Tabung Baja Boiler 1mm,tabung baja boiler 1mm |
||
Product Description
ASTM A192 Seamless Carbon Steel Boiler Tube untuk Pembangkit Listrik Tekanan Tinggi
Aplikasi
Boiler, Superheater, Kondensor dan Heat-exchanger
Rentang Ukuran
OD: 12,7-127 mm
WT: 2,2-15 mm
Panjang: 3m-12m atau sesuai dengan kebutuhan Anda
- Kemampuan Supply: 12000 Metric Ton / Metric Ton per Bulan
- Detail Kemasan: Bundel atau longgar
- Pelabuhan: Tianjin Qingdao Shanghai
- Waktu Pimpin:
-
Kuantitas (Metrik Ton) 1 - 50 > 50 Est.Waktu (hari) 30 Untuk dinegosiasikan
Rincian:
SA179 Carbon Steel Seamless Boiler Tube, SA210A1 High Pressure Boiler Seamless Rifled Tube SA213 T2, bahan T12
| Barang | Detail |
| Tipe | Mulus |
| Standar | ASTM A106.ASME SA106, API 5L, ASTM A53, ASME SA53, DIN17175, DIN1629 / DIN2448, ASTM A179, ASME SA179, ASTM A192, ASME SA192, ASTM A210, ASME SA210, ASTM A335 BS3059, BS3059 BAG II GR.360.440, GR.620-460, GR.622-490.629-470 |
| Kelas |
B, X42, X46, X52, X56, X60.ASME SA179, ASME SA192, ASME SA210 A1 C ASME SA335-P5, P9, P11, P12, P15, P21, P22, P23, P91, P92. ASME SA213-T2, T5, T9, T11, T12, T17, T21, T22, T23, T24, T36, T91, T92 DIN17175, ST35.8, ST45.8,17MN4,19MN5,15MO3,13CRMO44,10CRMO910,14MOV63 EN10216-1, .P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2. EN10216-2, P195GH, P235GH, P265GH, 16MO3,25CRMO4 (TC1, TC2) GBT5310,20G.20MNG, 25MNG, 15MOG, 20MOG, 12CRMOG, 15CRMOG, 12CR2MOG, 12CR1MOVG, |
| OD | 17.1-1422mm (3/8 inci-56 inci) |
| WT | 1,5-100mm |
| Panjangnya | Panjang acak 1-12.9m, atau Panjang tetap (5.8m, 5.85m, 6m.11.8m.12m) |
| Min. Jumlah pesanan | Kami dapat menerima 1 pcs / ukuran jika kami memiliki stok. |
| Permukaan | , Clear oil varnish. Atau warna sendiri |
| Berakhir | Ujung polos, Bevel. |
| Jangka waktu pembayaran: | TT atau LC |
| Paket | Bundel atau longgar |
| Waktu pengiriman | Tergantung pada pesanan tertentu, biasanya 45 hari |

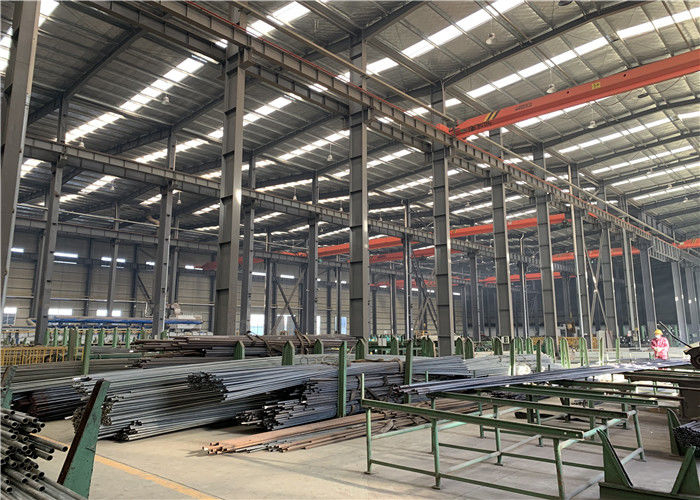

| Pabrik |
Zhangjiagang Hua Dong Energy Technology Co., Ltd.
|
| Nama Produk | pipa baja karbon / paduan dilas / mulus berkualitas tinggi dari pabrik |
| Standar | API 5L, ASTM A213, A312, ASTM A269, ASTM A778, ASTM A789, DIN 17456, ASTM A106, ASTM A53, ASTM A36, DIN 17457, DIN 17459, JIS G3459, JIS G3463, GOS T9941, EN 10216, BS3605, GB13296 , dll. |
| Bahan | 20 #, 20G, STPT410, STF410, A106, GR.B, A178C, A178D, P265GH, A53 GR.B, A135 GR.B, P265TR1, P265TR2, STPT480, A106, GR.C, A210C, Q195, Q235, Q345 , ST35.8, ST45.8, ST52, dll |
| Pemakaian | Pipa tanpa kabel banyak digunakan di perminyakan, kimia, medis, makanan, industri ringan, mesin, instrumen dan pipa industri lainnya dan bagian struktur mekanik, dll. |
| SELESAI | Polos / Miring / Ulir dengan Kopling atau tutup / Talang / Alur / Sekrup |
| Tipe | Hot-rolled / Cold-rolled / Cold-drawing |
| Inspeksi | Dengan pengujian hidrolik, arus eddy, uji inframerah |
| Permukaan | Dilukis hitam, dilapisi PE / PVC / PP, Galvanis, dilapisi warna, pernis anti karat, anti karat diminyaki, kotak-kotak, lapisan epoksi, dll. |
Ukuran: OD10-168mm X WT1-18mm
Metode Pembuatan: Ditarik Dingin, Hot Rolled.
Aplikasi: Untuk pembuatan boiler, reheater, superheater, heat exchanger, kondensor, dll.
