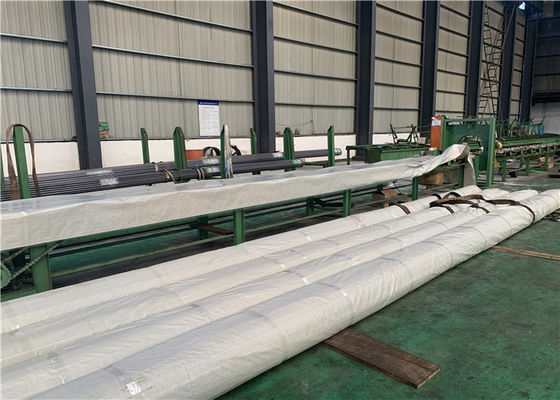

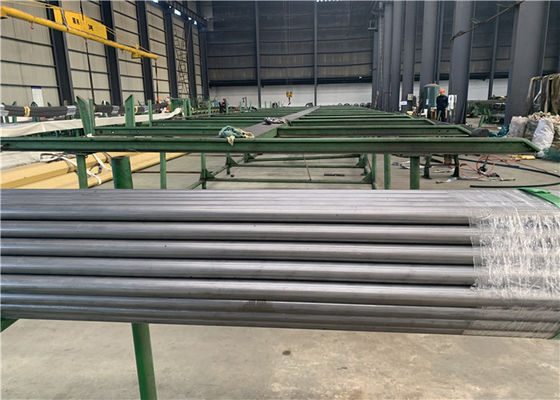

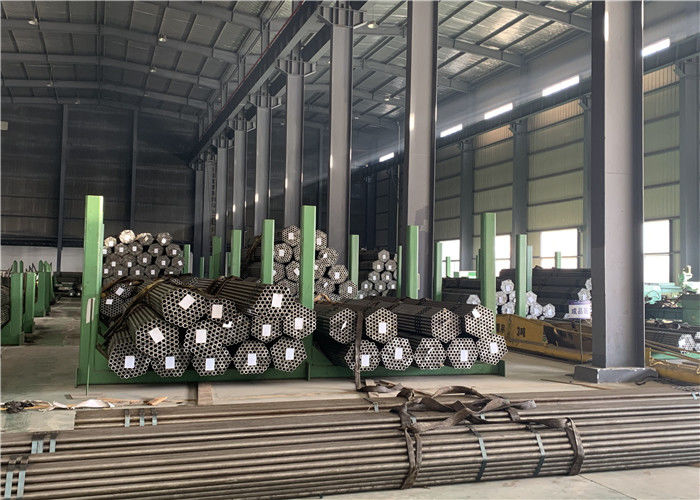

20mm OD ASME SA179 Superheater Seamless Boiler Tube Baja Karbon
Product Details
| Kualitas baja: | ASTM, SA192 | Tipe: | Mulus |
|---|---|---|---|
| Aplikasi: | Boiler & penukar panas, Superheater, Reheater, Air preheater, Economizer, drum uap, manifold hea | OD: | 20-1020mm |
| WT: | 0,6-250mm | Panjangnya: | 2-20Meter |
| Menyoroti |
SA179 Seamless Boiler Tube,20mm Seamless Boiler Tube,SA179 superheater tube |
||
Product Description
Tabung Baja Boiler Seamless ASME SA179 SA192 SA210A SA210C Untuk Boiler Industri
Tabung Boiler baja karbon mulus, ASTM A179, Min.Ketebalan dinding, baja karbon rendah, tabung yang ditarik dingin
Tabung ditarik dingin yang mulus untuk penukar panas tubular, kondensor, dan peralatan perpindahan panas serupa.Pipa ini harus dibuat dengan proses penarikan dingin.
| Pipa Baja- Pipa Seamless- ASTM Seamless Pipe-Steel Grade | |||
| Standar | Kualitas baja | Nama Standar | Dimensi |
| Tidak | Jarak | ||
| ASTM A53 | Kelas A, Kelas B | Hitam dan Dicelupkan Panas, | 0,405-26 inci |
| Pipa Seamless Berlapis Seng | 10,3-660 mm | ||
| ASTM A106 | Tingkat A, Tingkat B, Tingkat C | Pipa Baja Karbon Seamless untuk | NPS 1/8-NPS 48 |
| Layanan Suhu Tinggi | DN6-DN1200 | ||
| ASTM A161 | Baja Karbon Rendah (LC), Kelas T1 | Karbon Rendah Mulus dan | 2-9 inci |
| Baja Karbon Molibdenum | 50,8-228,6 mm | ||
| Still Tubes untuk Refinery Service | |||
| ASTM A179 | Ditarik Dingin yang Mulus | 1 / 8-3 inci | |
| Baja Karbon Rendah | 3,2-76,2 mm | ||
| Heat-Exchanger dan | |||
| Tabung Kondensor | |||
| ASTM A192 | Boiler Baja Karbon Seamless | 1 / 2-7 inci | |
| Tabung Untuk Layanan Tekanan Tinggi | 12,7-177,8 mm | ||
| ASTM A199 | T5, T9, T11, T22 | Ditarik Dingin yang Mulus | 1 / 8-3 inci |
| Panas Baja Paduan Menengah | 3,2-76,2 mm | ||
| Exchanger dan Condenser Tubes | |||
| ASTM A209 | Tingkat T1, Tingkat T1a, Tingkat T1b | Karbon-Molibdenum Tanpa Batas | 1 / 2-5 inci |
| Boiler Baja Paduan dan | 12,7-127 mm | ||
| Tabung Superheater | |||
| ASTM A210 | Kelas A-1, Kelas C | Baja Karbon Menengah yang Mulus | 1 / 2-5 inci |
| Boiler dan Superheater | 12,7-127 mm | ||
| Tabung | |||
| ASTM A213 | T2, T5, T5b, T5c, T9, T11, T12, | Feritik dan Austenitik Mulus | 1 / 8-5 inci |
| T17, T21, T22, T23, T24, T36, | Boiler Baja Paduan, Superheater, | 3,2-127 mm | |
| T91, T92, T122, T911 | dan Tabung Penukar Panas | ||
| ASTM A252 | Kelas 1, Kelas 2, Kelas 3 | Tumpukan Pipa Baja Seamless | 6-24 inci |
| ASTM A333 | Kelas 1, Kelas 3, Kelas 4, | Pipa Baja Seamless untuk | 0,405-26 inci |
| Kelas 6, Kelas 7, Kelas 8, | Layanan Suhu Rendah | 10,3-660 mm | |
| Kelas 9, Kelas 10, Kelas 11 | |||
| ASTM A334 | Kelas 1, Kelas 3, Kelas 6, | Karbon Seamless dan Baja Paduan | 0,405-26 inci |
| Kelas 7, Kelas 8 | Tabung untuk Suhu Rendah | 10,3-660 mm | |
| Kelas 9, Kelas 11 | Layanan | ||
| ASTM A335 | P1, P2, P5, P5b, P5c, P9, | Pipa Baja Paduan Feritik Seamless | 0,405-26 inci |
| P11, P12, P15, P21, P22 | untuk Layanan Suhu Tinggi | 10,3-660 mm | |
| P23, P36, P91, P92, P122, P911 | |||
Aplikasi:
Untuk Boiler, Superheater,
Penukar panas,
Boiler bertekanan tinggi,
Ketel Uap
Kondensor Dingin dan Layanan Tekanan Tinggi,
Layanan Suhu Tinggi untuk Konstruksi Boiler
Memproduksi Mothod:
Tabung diproduksi dengan proses yang mulus dan dapat diterapkan dengan hasil akhir panas dan dingin.boiler pipa dan pipa baja seamless adalah kekuatan kami di pasar dunia untuk USA, Middile East Market.
Perawatan panas:
Tabung jadi panas tidak perlu diberi perlakuan panas. Tabung jadi dingin diberi perlakuan panas setelah pelepasan akhir dingin akhir pada suhu 1200 ℉ (650 ℃) atau lebih tinggi
| Produk | Tabung Baja Boiler mulus ASME SA179 SA192 SA210A SA210C |
| Standar | SEPERTI SAYA |
| Bahan | Tabung Baja Boiler mulus ASME SA179 SA192 SA210A SA210C |
| Permukaan | Cat hitam, pernis, minyak, galvanis |
| Panjang Pipa | 5,8 m hingga 12 m, dapat disesuaikan sesuai dengan persyaratan panjang |
| Pipa Berakhir | Ujung Biasa, Ujung Miring |
| Pelindung Akhir | 1. Tutup plastik (OD kecil) 2. Pelindung besi (OD besar) |
| Aplikasi | Pipa fluida, pipa minyak, pipa gas, pipa struktur, tabung boiler |
| Uji | Analisis Komponen Kimia, Sifat Mekanik, Sifat Teknis, Ukuran Eksterior |
| Produktifitas | 50000 ton per bulan |
| Min Order | 20 ton |
| Ucapan | Desain khusus tersedia sesuai kebutuhan |
Kelas baja SA192 Komposisi Kimia & Sifat Mekanik
|
C
|
M N
|
P.
|
S
|
Si
|
Daya tarik
|
Poin Yeild
|
Pemanjangan
|
|
0,06-0,18
|
0,27-0,63
|
0,035Maks
|
0,035Maks
|
0,25Maks
|
min ksi [Mpa] 47 [325]
|
min ksi [Mpa] 26 [180]
|
≥35%
|
Kekerasan
|
Kekerasan Brinell
|
Nomor Kekerasan Rockwell
|
|
WT≥0.200in (5.1mm)
|
WT <0,200 inci (5,1 mm)
|
|
137HRB
|
77HRB
|
KONTROL KUALITAS
1 ~ Inspeksi Bahan Baku Masuk
2 ~ Pemisahan Bahan Baku untuk menghindari campuran kelas baja
3 ~ Pemanasan dan Hammering End untuk Cold Drawing
4 ~ Gambar Dingin dan Penggulungan Dingin, inspeksi online
5 ~ Perlakuan Panas, + A, + SRA, + LC, + N, Q + T
6 ~ Penegakan-Pemotongan ke Panjang yang ditentukan-Pemeriksaan Pengukuran Selesai
7 ~ Pengujian Machanical di laboratorium sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Kekerasan, Dampak, Mictrostruture dll
8 ~ Packing dan Stocking.
