Bagian Boiler ASTM A213 TP316L Stainless Steel Pipa Seamless Boiler
Product Details
| Nama Produk: | Pipa Stainless Steel Astm | Bahan: | TP316L |
|---|---|---|---|
| Standar: | ASTM A213, ASME SA213, EN10215-6, DIN17456 | Memuat port: | Shanghai |
| Menyoroti |
Pipa Seamless Stainless Steel TP316L,Pipa Seamless Stainless Steel ASTM A213,Pipa Boiler a213 tp316l |
||
Product Description

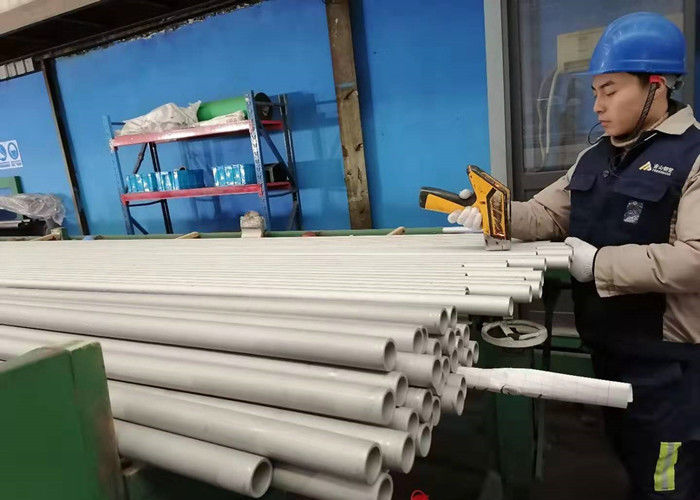

Pipa Stainless Steel ASTM ASTM A213 TP316L Diterapkan di Bagian Boiler
Aplikasi Bidang aplikasi yang umum adalah:
- penukar panas (kondensor, evaporator, desalinator air laut)
- industri kimia dan petrokimia
- industri pengolahan makanan dan pendingin
Kelas Bahan:
| Standar Amerika |
Baja Austenitik: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Lainnya:TP405, TP409, TP410, TP430, TP439, ... |
| Standar Europen | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Standar Rusia | 08Х17Т, 08Х13,12Х13,12Х17,15Х25Т, 04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18.08Х18Н10.08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т1218НН10Т, 12Х18НН10Т, 12Х18НН |
Ukuran Jarak:
| Produksi | Diameter luar | Ketebalan dinding |
| Tabung Penukar Panas | 6.00mm hingga 101.6mm | 0,5 mm hingga 8 mm |
Penyelesaian Akhir
Solusi Anil & Acar/ Terang Anil.
Jenis Tabung:
U-bend & Lurus.
Beberapa uji kualitas yang kami lakukan meliputi:
| Uji Korosi | Dilakukan hanya jika diminta secara khusus oleh klien |
| Analisis kimia | Pengujian dilakukan sesuai standar kualitas yang dipersyaratkan |
| Pengujian Merusak / Mekanis | Tarik |Kekerasan |Meratakan |Suar |Penghubung jalur pipa |
| Reverse-bend dan Re.tes datar | Dilakukan dengan kepatuhan penuh dengan standar yang relevan & norma ASTM A-450 dan A-530, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di akhir pelanggan |
| Pengujian Arus Eddy | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatis | Pengujian Hidrostatis 100% dilakukan sesuai dengan norma ASTM-A 450 untuk memeriksa kebocoran tabung, dan tekanan terbesar kami dapat mendukung 20Mpa / 7s. |
| Uji Udara Di Bawah Tekanan | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa harus melalui inspeksi visual menyeluruh oleh staf terlatih untuk mendeteksi kekurangan permukaan & ketidaksempurnaan lainnya |
Pengujian Tambahan: Selain pengujian yang disebutkan di atas, kami juga melakukan pengujian tambahan pada produk manufaktur.Tes yang dilakukan di bawah ini meliputi:
|
|
|
