25MnG Cold Drawn ASTM A192 Carbon Steel Seamless Pipe dipoles
Product Details
| Nama Produk: | Tabung Boiler | Standar: | GB5310 Cina |
|---|---|---|---|
| Aplikasi: | pipa pemanas, wadah, dan alat pemanas batu bara superheater dan reheater | Kelas pipa baja utama: | 20G 、 25MnG 、 15MoG 、 15CrMoG 、 12Cr2MoG 、 12Cr1MoVG |
| Bahan: | Baja karbon | Pelabuhan: | Shanghai |
| Teknik: | Dingin Diambil | ||
| Menyoroti |
Pipa seamless baja karbon 25MnG,pipa seamless ASTM A192 cs,pipa seamless karbon ASTM A192 |
||
Product Description

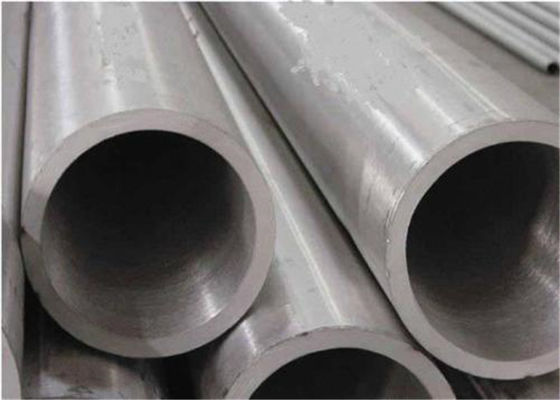

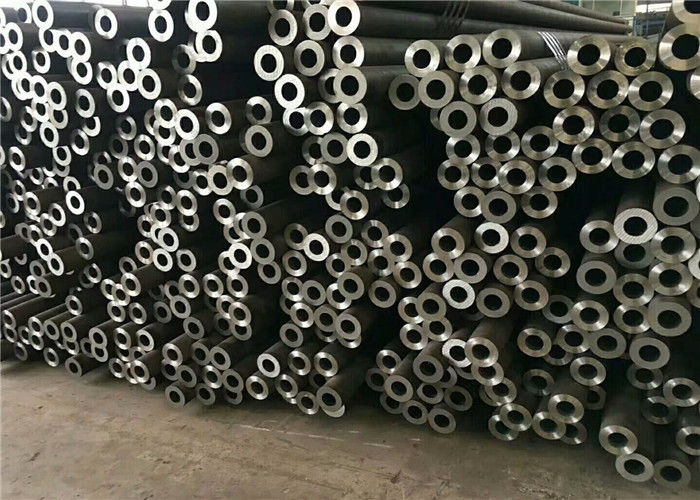

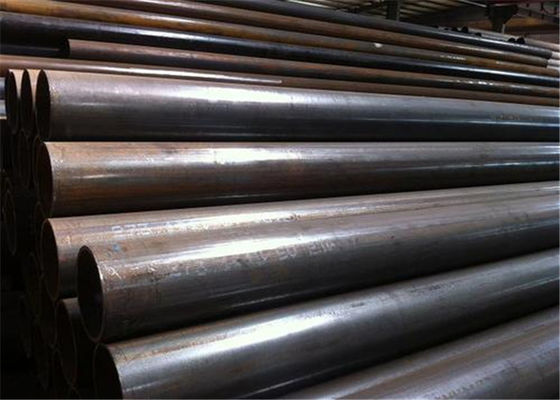

Cold Drawn ASTM A192 Carbon Steel Seamless Boiler Tubes Untuk Tekanan Tinggi
Rincian Produk
| Kondisi pengiriman | BK, BKW, GBK, NBK, BKS |
| Ukuran | OD: 25mm-300mm WT: 2mm-30mm |
| Panjangnya | 0,5-9m, atau sesuai dengan permintaan klien |
| Materia | 10 #, 20 #, 45 #, 25Mn, E355 (Q345B, St52), 27SiMn |
| Standar |
GB / T8713, GB / T3639, DIN2391, EN10305, ASTMA519, ASTMA106-2006 |
| Toleransi ID | H8, H9 |
| MOQ | 5MT |

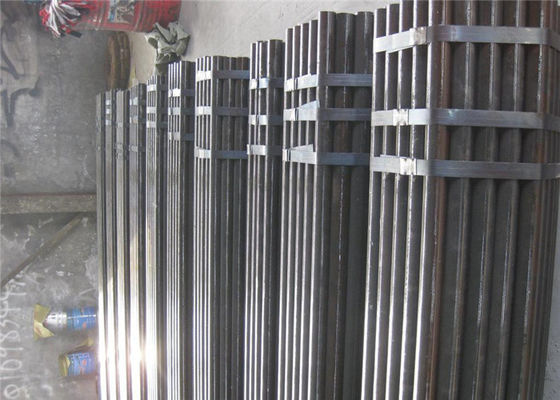

| Paket | paket standar atau bundel dengan strip atau kotak kayu |
| atau sesuai dengan kebutuhan pelanggan | |
| Tempat asal | Zhejiang, Tiongkok |
| Pembayaran | L / C atau T / T (30% di muka dan 70 & berlawanan dengan salinan B / L) |
| Pengiriman | Dalam waktu 30 hari setelah konfirmasi setoran |
| Metode Kerja | Digambar dingin / digulung, diasah / SRB, dipoles |
Komposisi Kimia & Sifat Mekanik:
| Standar | Kelas | Komposisi kimia(%) | ||||||
| C | M N | Si | V. | Kr | Mo | PS | ||
| GB5310 | 20G | 0,17 ~ 0,24 | 035 ~ 0,65 | 0,17 ~ 0,37 | / | / | / | ≤ 0,030 |
| 25MnG | 0,22 ~ 0,30 | 0,70 ~ 1,00 | 0,17 ~ 0,37 | / | / | / | ≤ 0,030 | |
| 15MoG | 0,12 ~ 0,20 | 0,40 ~ 0,80 | 0,17 ~ 0,37 | / | / | 0,25 ~ 0,35 | ≤ 0,030 | |
| 15CrMoG | 0,12 ~ 0,18 | 0,40 ~ 0,70 | 0,17 ~ 0,37 | / | 0,80 ~ 1,10 | 0,40 ~ 0,55 | ≤ 0,030 | |
| 12Cr2MoG | 0,08 ~ 0,15 | 0,40 ~ 0,70 | ≤ 0,50 | / | 2.00 ~ 2.50 | 0,90 ~ 1,20 | ≤ 0,030 | |
| 12Cr1MoVG | 0,08 ~ 0,15 | 0,40 ~ 0,70 | 0,17 ~ 0,37 | 0,15 ~ 0,30 | 0,90 ~ 1,20 | 0,25 ~ 0,35 | ≤ 0,030 | |
| Kelayakan Mekanis | Kekuatan Tarik (Mpa) | Kekuatan Hasil (Mpa) | Pemanjangan(%) | |||||
| 20G | 410 ~ 550 | ≥ 245 | ≥ 24 | |||||
| 25MnG | ≥ 415 | ≥ 240 | ≥ 22 | |||||
| 15MoG | 450 ~ 600 | ≥ 270 | ≥ 22 | |||||
| 15CrMoG | 440 ~ 640 | ≥ 235 | ≥ 21 | |||||
| 12Cr2MoG | 450 ~ 600 | ≥ 280 | ≥ 20 | |||||
| 12Cr1MoVG | 470 ~ 640 | ≥ 255 | ≥ 21 | |||||
Product Highlights
Cold Drawn ASTM A192 Carbon Steel Seamless Boiler Tubes Untuk Tekanan Tinggi Rincian Produk Kondisi pengiriman BK, BKW, GBK, NBK, BKS Ukuran OD: 25mm-300mm WT: 2mm-30mm Panjangnya 0,5-9m, atau sesuai dengan permintaan klien Materia 10 #, 20 #, 45 #, 25Mn, E355 (Q345B, St52), 27SiMn Standar GB / ...
