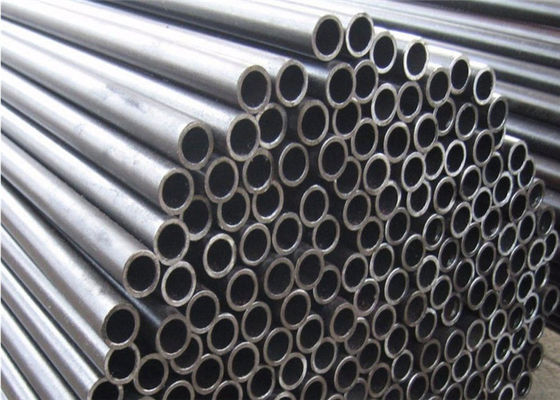

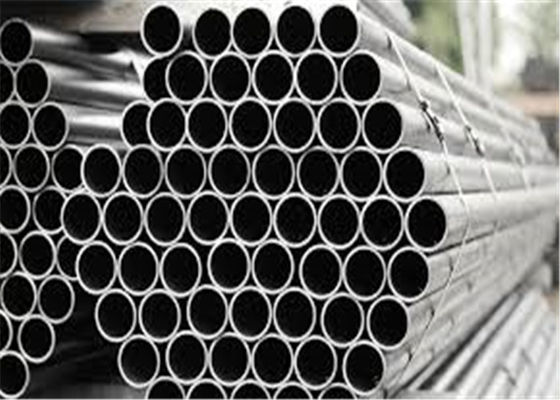

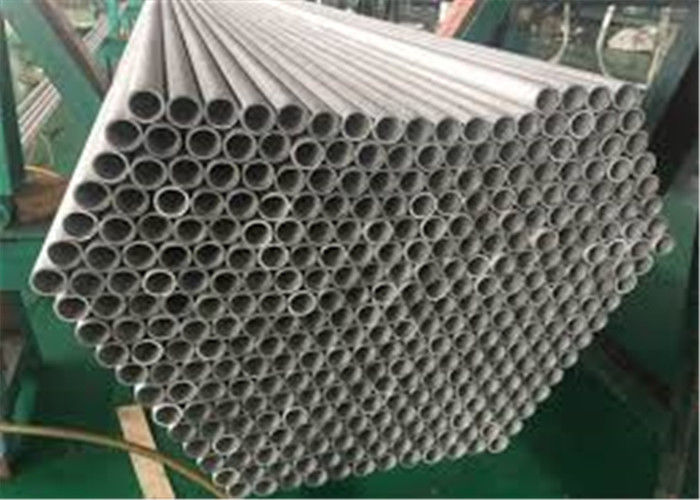

ASTM SA192 Gr P11 Carbon Seamless Steel Pipe Hot Rolled
Product Details
| Kualitas baja: | ASTM, SA192 | Ketebalan: | 2,77 - 23,83 mm |
|---|---|---|---|
| Aplikasi: | Pipa Boiler | OD: | 20-1020mm |
| WT: | 0,6-250mm | Panjangnya: | 2-20Meter |
| Menyoroti |
Pipa Seamless Karbon ASTM SA192,Pipa Seamless Karbon Gr P11,pipa baja karbon ASTM SA192 |
||
Product Description
ASTM A 210 Cold Drawn Seamless Medium-Carbon Steel Boiler dan Superheater Tubes
Empat mesin penusuk, 20 set meja gambar dingin, DUA tungku perlakuan panas gas alam 150mtr, 12 tangki untuk Pengawetan / Pencucian / Fosfat, DUA Arus Eddy dan SATU Ultrasonik untuk NDT, fasilitas uji Kimia dan Mekanik yang Canggih, dll.
| barang | nilai |
| Standar | ANSI A210-1996, ASTM A335-2006 |
| Ketebalan | 2,77 mm - 23,83 mm |
| Bentuk Bagian | Bulat |
| 0,5 inci - 18 inci | |
| Tempat asal | Cina |
| Zhangjiagang | |
| Aplikasi | Pipa Boiler |
| Teknik | Hot Rolled |
| Sertifikasi | Sertifikat ISO9001 / API / SGS, BV, TUV |
| Pengobatan permukaan | cat hitam |
| Pipa Khusus | Pipa Dinding Tebal |
| Paduan Atau Tidak | Apakah Paduan |
| Toleransi | ± 10% |
| Tipe | Pipa Baja Seamless |
| Layanan Pengolahan | Pemotongan |
| Nama Produk | Untuk Surge Mill Carbon Seamless Pipe Boiler Tube SA335 Gr P11 |
| Kata kunci | Tabung Boiler |
| Standar | ASTM A335 |
| Kualitas baja | P5, P9, P11, P22 |
| Pemakaian | Transportasi Cairan |
| Permukaan akhir | Lukisan Anti Karat |
Kelas baja SA192 Komposisi Kimia & Sifat Mekanik
|
C
|
M N
|
P.
|
S
|
Si
|
Kekuatan tarik
|
Poin Yeild
|
Pemanjangan
|
|
0,06-0,18
|
0,27-0,63
|
0,035Maks
|
0,035Maks
|
0,25Maks
|
min ksi [Mpa] 47 [325]
|
min ksi [Mpa] 26 [180]
|
≥35%
|
Kekerasan
|
Kekerasan Brinell
|
Nomor Kekerasan Rockwell
|
|
WT≥0.200in (5.1mm)
|
WT <0,200 inci (5,1 mm)
|
|
137HRB
|
77HRB
|
KONTROL KUALITAS
1 ~ Inspeksi Bahan Baku Masuk
2 ~ Pemisahan Bahan Baku untuk menghindari campuran kelas baja
3 ~ Pemanasan dan Hammering End untuk Cold Drawing
4 ~ Gambar Dingin dan Penggulungan Dingin, inspeksi online
5 ~ Perlakuan Panas, + A, + SRA, + LC, + N, Q + T
6 ~ Penegakan-Pemotongan ke Panjang yang ditentukan-Pemeriksaan Pengukuran Selesai
7 ~ Pengujian Machanical di laboratorium sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Kekerasan, Dampak, Mictrostruture dll
8 ~ Packing dan Stocking.
