ASME SA249 ERW Annealed Pipe Plain Berakhir Untuk Peralatan Fitness
Product Details
| Kualitas baja: | TP304 / 304L, TP316 / 316L, TP321 / 321H, TP347 / 347H, TP310S, TP904L | Aplikasi: | Boiler Baja Austenitik, Superheater, Penukar panas, Kondensor |
|---|---|---|---|
| Standar: | ASTM A249 / ASME SA249 | Bentuk: | Lurus & U menekuk |
| Menyoroti |
ASME SA249 Annealed Pipe,ERW Anneal steel pipe,ASME SA249 Anneal steel pipe |
||
Product Description

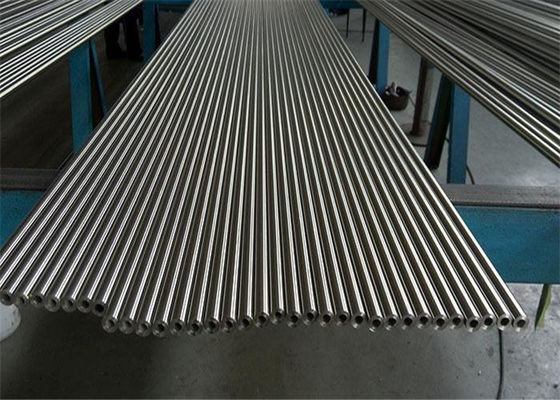

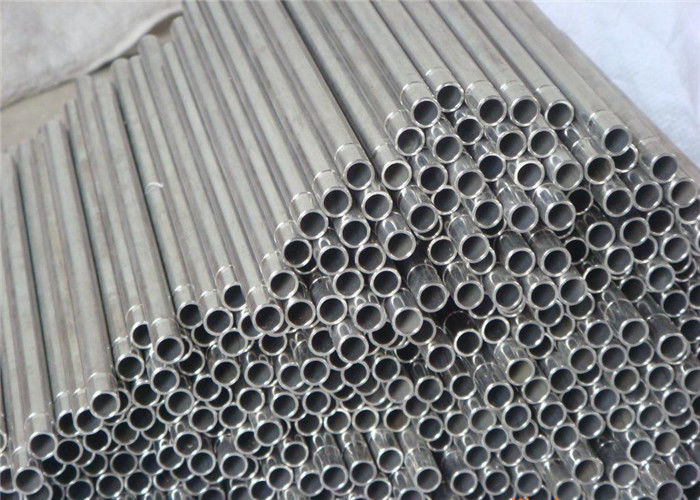

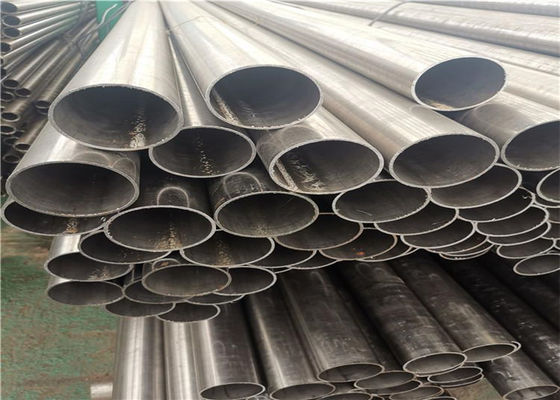

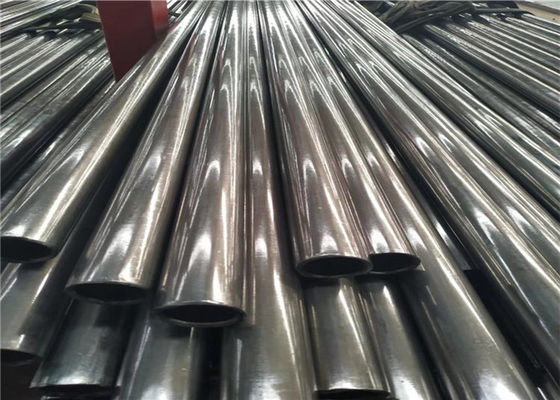

ASME SA249 / ASTM A249 TP304 TP316L TP321 Stainless Steel Welded Pipe Bright Annealed Plain End
Informasi Produksi
Ukuran Jarak:
| Produksi | Diameter luar | Ketebalan dinding |
| Pipa Boiler | 6.00mm hingga 630mm | 0,5 mm hingga 52 mm |
Penyelesaian Akhir
Solusi Anil & Acar / Terang Anil.
Jenis Pipa:
U-bend & Lurus.
Beberapa uji kualitas yang kami lakukan meliputi:
| Uji Korosi | Dilakukan hanya jika diminta secara khusus oleh klien |
| Analisis kimia | Pengujian dilakukan sesuai standar kualitas yang dipersyaratkan |
| Pengujian Merusak / Mekanis | Tarik |Kekerasan |Meratakan |Suar |Penghubung jalur pipa |
| Reverse-bend dan Re.tes datar | Dilakukan dengan kepatuhan penuh dengan standar yang relevan & norma ASTM A-450 dan A-530, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di akhir pelanggan |
| Pengujian Arus Eddy | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatis | Pengujian Hidrostatis 100% dilakukan sesuai dengan norma ASTM-A 450 untuk memeriksa kebocoran tabung, dan tekanan terbesar kami dapat mendukung 20Mpa / 7s. |
| Uji Udara Di Bawah Tekanan | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa harus melalui inspeksi visual menyeluruh oleh staf terlatih untuk mendeteksi kekurangan permukaan & ketidaksempurnaan lainnya. |
Pengujian Tambahan: Selain pengujian yang disebutkan di atas, kami juga melakukan pengujian tambahan pada produk manufaktur.Tes yang dilakukan di bawah ini meliputi:
|
|
|
