OD4mm 8K Permukaan Ketahanan Korosi Pipa Stainless Steel 316l
Product Details
| Standar: | <i>ASTM A213 ;</i> <b>ASTM A213;</b> <i>ASTM A269 ;</i> <b>ASTM A269;</b> <i>ASTM A312 ;</i> <b>ASTM | Berakhir: | Polos atau Miring |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Jenis: | Pipa Stainless Steel |
| OD: | Diameter luar 4mm -101.6mm | Ketebalan: | 0.4mm-3.0mm |
| Menyoroti |
Pipa baja tahan karat 8K 316l,pipa baja tahan karat OD4mm 316l,tabung Permukaan 316l 8K |
||
Product Description

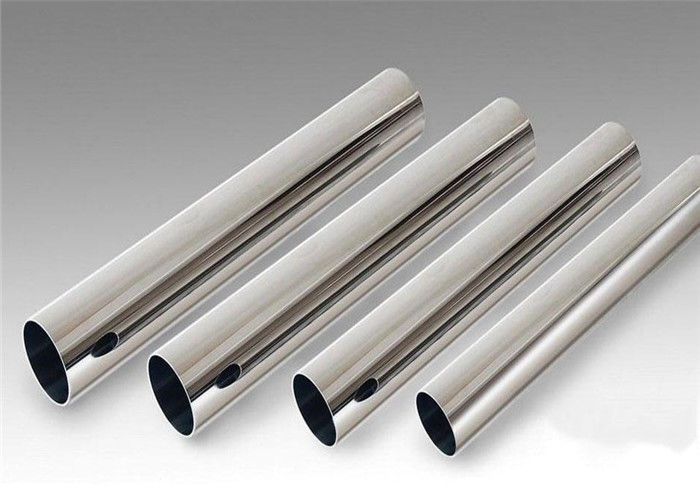

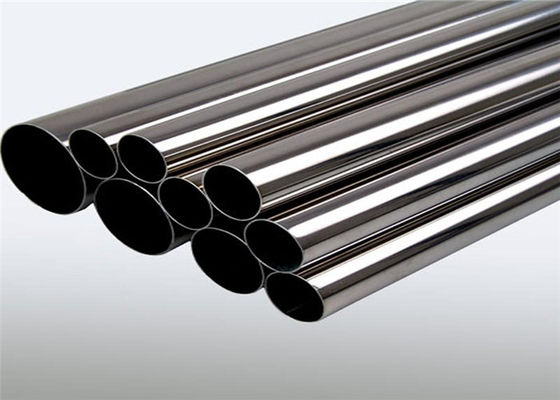

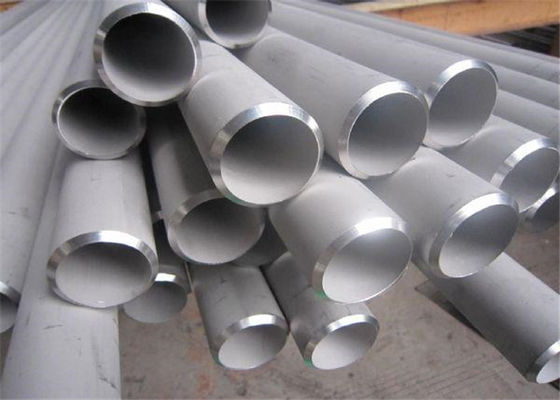

Pipa Stainless Steel 304L / 316L 2b Seamless Steel Mirror Ba Round Tube 6K 8K Surface
Tabung stainless steel untuk penukar panas, evaporater, boiler, kondensor, knalpot, pendingin
Spesifikasi:
1) Diameter: 4 - 76.2mm
2) WT: 0,4 - 2,5 mm
3) Nilai: 316L / 304 / 304L / 310S, dll.
4) standar: GB / ISO / EN / ASTM / JIS, dll.
5) rentang aplikasi: banyak digunakan dalam bahan makanan, peralatan medis, listrik, ketel, pendingin, mobil, kondensor dll.
6) kemasan: kemasan dalam: 1 pc / kantong plastik; kemasan luar: bundel dalam tas tenun atau dalam kotak kayu lapis.
| Komposisi kimia dan sifat mekanik kumparan baja tahan karat | |||||||||
| Kelas | Komposisi kimia (%) | Performa Mekanis | |||||||
| C | Si | M N | P. | S | Ni | Kr | Mo | Kekerasan | |
| 201 | ≤0.15 | ≤1.00 | 5.5 / 7.5 | ≤0.060 | ≤0.030 | 3.5 / 5.5 | 16.0 / 18.0 | - | HB≤241, HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0 / 11.0 | 18.00 / 20.00 | - | HB≤187, HRB≤90, HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00 / 14.00 | 16.0 / 18.0 | 2.00 / 3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00 / 14.00 | 16.0 / 18.0 | 2.00 / 3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5 / 13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00 / 18.00 | - | HB≤183, HRB≤88 HV≤200 |
| Komoditas | ASTM SUS201 202301304 304L 316 316L Lembar Baja Tahan Karat Austial |
| Ketebalan | 6mm-400mm |
| Lebar | 1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm, dll |
| Panjangnya | 2000mm-6000mm atau sebagai permintaan pelanggan |
| Standar | AISI, ASTM, EN, BS, GB, DIN, JIS, dll |
| Bahan | ASTM SUS201 202301304 304L 316 316L Lembar Baja Tahan Karat Austial |
| Permukaan | 2B, BA, HL, 8K, No. 4, dll |
| Pengemasan | Kemasan standar ekspor layak laut |
| Teknik | Gulungan panas / gulungan dingin |
| Waktu pengiriman | 10-30 hari |
| Kemampuan suplai | 5000 ton / bulan |
| Sertifikasi: | ISO9001: 2008 |
| Syarat pembayaran | 30% TT sebagai deposit dan sisanya harus dibayar dengan L / C atau dengan salinan B / L. |
| Aplikasi | Pelat baja canai panas berlaku untuk bidang konstruksi, industri pembuatan kapal, industri minyak dan kimia, industri perang dan listrik, industri pengolahan makanan dan medis, penukar panas boiler, bidang mesin dan perangkat keras. |
| Keuntungan | Ketahanan korosi yang kuat dan efek dekoratif; Kontrol kualitas yang sangat baik dan tinggi;harga bersaing; Pengiriman tepat waktu, andal, dan efisien; Pelayanan pelanggan. Murah, lebih baik, lebih cepat |
| Catatan | Kami dapat memproduksi standar lain sebagai kebutuhan pelanggan |
Tebal deviasi masuk (tidak termasuk jahitan las) di dinding tabung las adalah untuk mengatur tebal dinding 10% dari ±, tetapi deviasi masuk minimum adalah 0,02 mms dari ±.
Pengelasan menangani panjang kaki Cina stabil sebagai 3 ms ~ 9 ms, umumnya menyelesaikan kaki Cina dengan 6 ms.
Lasan menangani penyelesaian panjang kaki Cina biasanya panjang, deviasi masuknya adalah 5 mms dari ±.
Mengadopsi sebagian derajat sentakan dalam tabung lasuntuk menjaga ukuran kaki Cina tidak boleh terlalu dalam 2,0 mms.
Fungsi mesin melihat tabel 5
tabel 5
| Nomor baja | Nomor kartu | Pegangan panas Buat gelar |
Yang anti menarik kekuatan MPa |
Terimalah kekalahan kekuatan MPa |
Tingkat ekstensi% | Tingkat kekerasanHRB |
| 0Cr19N19 | 304 | ≥1010 ° C Jahat dan dingin |
≥520 | ≥205 | 40 | ≤90 |
| 00Cr19Ni11 | 304L | "" | ≥480 | ≥175 | 40 | ≤90 |
| 0Cr17Ni12M02 | 316 | "" | ≥520 | ≥205 | 40 | ≤90 |
| 0Cr17Ni14M02 | 316L | "" | ≥480 | ≥175 | 40 | ≤90 |
| 0Cr18Ni11Ti | 321 | ≥920 ° C Jahat dan dingin |
≥520 | ≥205 | 40 | ≤90 |
Product Highlights
Pipa Stainless Steel 304L / 316L 2b Seamless Steel Mirror Ba Round Tube 6K 8K Surface Tabung stainless steel untuk penukar panas, evaporater, boiler, kondensor, knalpot, pendingin Spesifikasi: 1) Diameter: 4 - 76.2mm 2) WT: 0,4 - 2,5 mm 3) Nilai: 316L / 304 / 304L / 310S, dll. 4) standar: GB / ISO / ...
