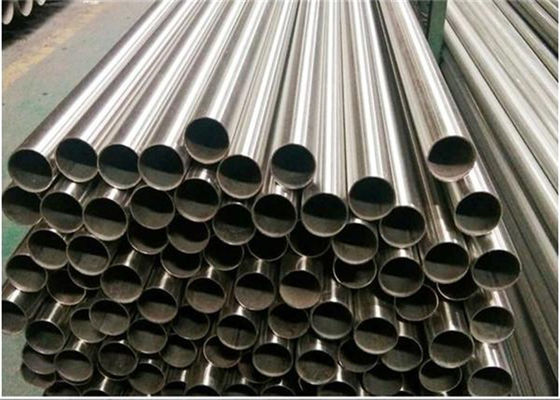

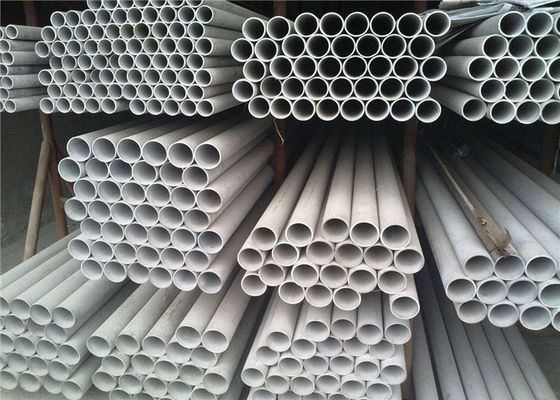

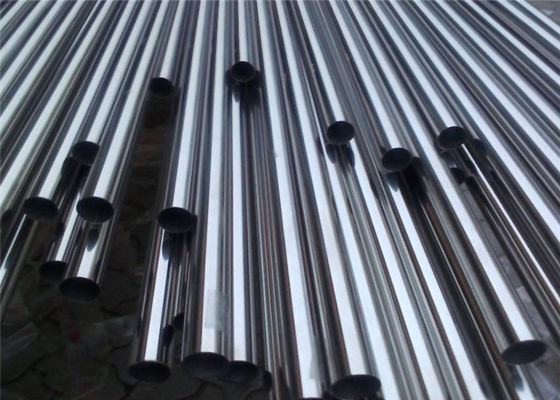

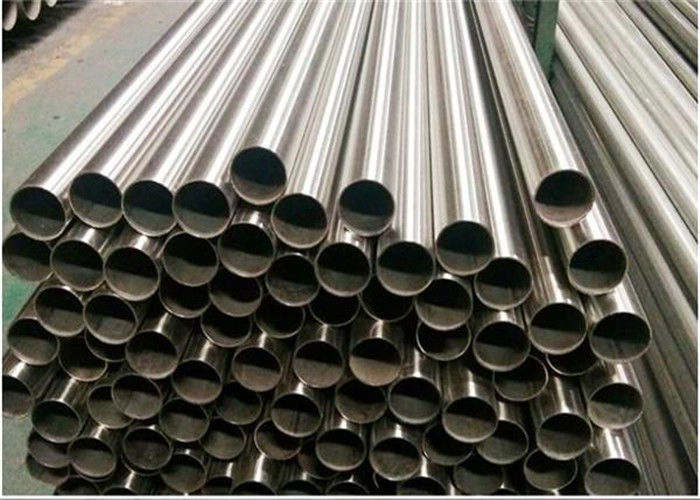

Austenitic Duplex Seamless Boiler Tubes ASTM SA192 permukaan yang dipoles
Product Details
| Kualitas baja: | ASTM, SA192 | Jenis koneksi: | Mulus |
|---|---|---|---|
| Aplikasi: | Pipa Boiler | OD: | 20-1020mm |
| WT: | 0,6-250mm | Panjangnya: | 2-20Meter |
| Menyoroti |
Tabung Boiler Seamless Duplex,Tabung Boiler Seamless Austenitik,tabung bank boiler ASTM SA192 |
||
Product Description
Hot Rolled / Cold Drawn Seamless Austenitic dan Duplex Stainless Steel Tube / Pipe
PENGENDALIAN MUTU dari bahan mentah hingga produk jadi
Kami dapat menyediakan bar bulat / billet MTC, dan Semua Catatan Uji Terkait selama produksi hingga produk akhir!Pastikan semua produk baru diproduksi sesuai kontrak.
Kapasitas produksi hingga 8.000 ton per bulan memastikan PENGIRIMAN CEPAT
Empat mesin penusuk, 20 set meja gambar dingin, DUA tungku perlakuan panas gas alam 150mtr, 12 tangki untuk Pengawetan / Pencucian / Fosfat, DUA Arus Eddy dan SATU Ultrasonik untuk NDT, fasilitas uji Kimia dan Mekanik yang Canggih, dll.
|
C |
M N |
P. |
S |
Si |
Kekuatan tarik |
Poin Yeild |
Pemanjangan |
|
0,06-0,18 |
0,27-0,63 |
0,035Maks |
0,035Maks |
0,25Maks |
min ksi [Mpa] 47 [325] |
min ksi [Mpa] 26 [180] |
≥35% |
Deskripsi Produk
| Tipe | Mulus / Dilas |
| Ukuran | Diameter luar: 10mm - 630mm (mulus);10mm-2500mm (dilas) Ketebalan dinding: 0.5mm - 50mm |
| Standar | ASTM A312, ASTM A269, ASTM213, EN10216-5 ASTM A789 (ASME SA789), ASTM A790 (ASME SA790) dll. |
| Kelas | TP304, 304L, 304H, TP316, 316L, 316H, TP321 / 321H, TP347 / 347H, S31803, S32205, S31500, S32304, S32750, S32760 dll. |
| Permukaan | Pengawetan, solusi padat, dipoles atau sebagai kebutuhan pelanggan |
| Pengepakan | Bundel, kantong plastik, tas anyaman, kotak kayu |
| Pengiriman | stok, 5-30 hari ke pelabuhan |
| Pembayaran | T / T, D / P, L / C saat penglihatan, Usance L / C dll. |
ASTM A210 / A210M / ASME SA-210 / SA-210M
ASTM A 210 Cold Drawn Seamless Medium-Carbon Steel Steel Boiler dan Superheater Tubes
| Komposisi kimia % | ||||||||
| Garde | C | Si | M N | P. | S | Kr | Ni | Cu |
| A-1 | ≤0.27 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | / | / | / |
| C | ≤0.35 | ≥0.10 | ≤0.93 | ≤0.035 | ≤0.035 | / | / | / |
ASTM A 210 Cold Drawn Seamless Medium-Carbon Steel Steel Boiler dan Superheater Tubes Mechanical Property
| Peralatan mekanis | |||
| Kelas | Yield Point (Mpa) |
Titik Tarik (Mpa) |
Pemanjangan (%) |
| A-1 | ≥255 | ≥415 | ≥30 |
| C | ≥275 | ≥485 |
≥30
|
Kelas baja SA192 Komposisi Kimia & Sifat Mekanik
Kekerasan
|
Kekerasan Brinell |
Nomor Kekerasan Rockwell |
|
WT≥0.200in (5.1mm) |
WT <0,200 inci (5,1 mm) |
|
137HRB |
77HRB |
KONTROL KUALITAS
1 ~ Inspeksi Bahan Baku Masuk
2 ~ Pemisahan Bahan Baku untuk menghindari campuran kelas baja
3 ~ Pemanasan dan Hammering End untuk Cold Drawing
4 ~ Gambar Dingin dan Penggulungan Dingin, inspeksi on line
5 ~ Perlakuan Panas, + A, + SRA, + LC, + N, Q + T
6 ~ Penegakan-Pemotongan ke Panjang yang ditentukan-Pemeriksaan Pengukuran Selesai
7 ~ Pengujian Machanical di laboratorium sendiri dengan Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Kekerasan, Dampak, Mictrostruture dll
8 ~ Packing dan Stocking.
