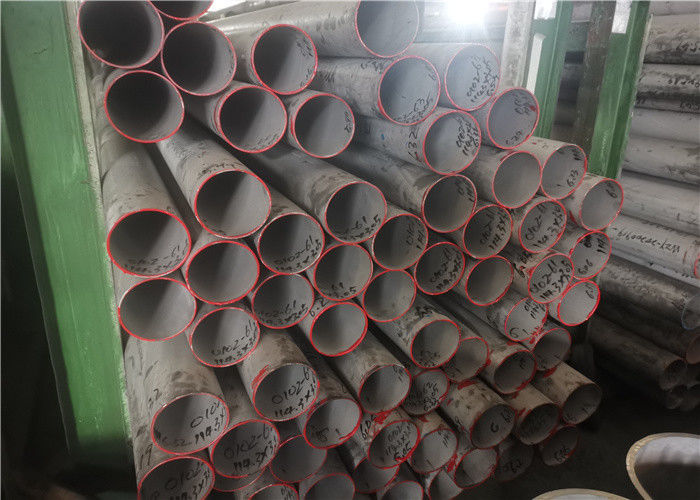

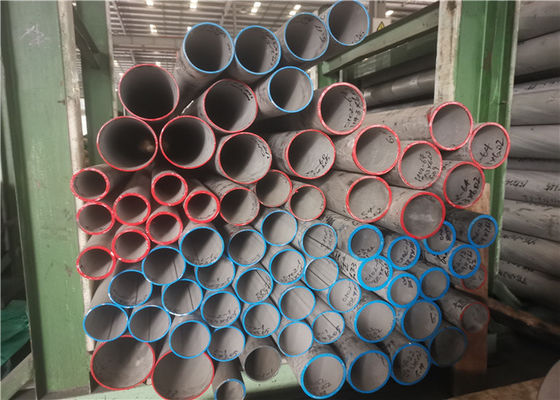

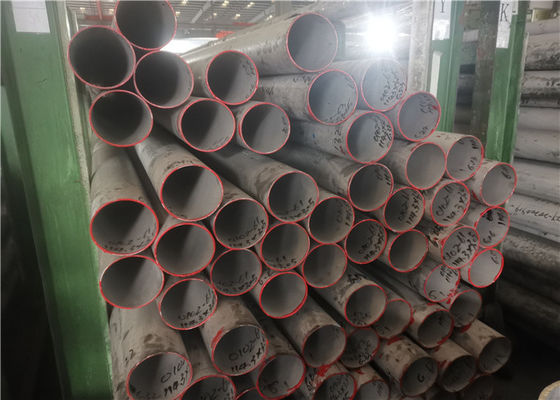

OD100mm ASTM SS Stainless Steel Welded Tubing Annealed Finishing
Product Details
| Bahan: | TP304 TP304L TP316 TP316L, 300 Series | Selesai: | Solusi Anil & Acar |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Tabung dilas |
| OD: | 10mm hingga 2500mm | WT: | 0,5 mm hingga 35 mm |
| Menyoroti |
OD100mm tabung dilas stainless steel,ASTM SS Stainless Steel Welded Tubing,OD100mm SS Stainless Steel Welded Tubing |
||
Product Description
OD100mm ASTM Standard Stainless Welded Pipe Dengan Bending Welding
| Kelas | ASTME / ASME: TP304, TP304L, TP304H, TP316, TP316L, TP321, TP321H, TP310S, TP310H, TP317, TP317L, TP347, TP347H, N08904, S31803, S32205, S32750, S32760 | |
| GB / HG: 12Cr18Ni9, 06Cr19Ni10, 07Cr19Ni10, 06Cr23Ni13, 06Cr25Ni20, 06Cr17Ni12Mo2, 022Cr17Ni13Mo3, 06Cr18Ni11Ti, 06Cr18Ni112Nb, 07Cr18Ni11 ,Nb22Ni2, 02Cr18Ni11, 022Cr17Ni13Mo3, 06Cr18Ni11Ti, 06Cr18Ni2Ni2Nb, 07Cr18Ni11, 022Cr17Ni13Mo3, 06Cr18Ni11Ti, 06Cr18NiNi2Nb, 07Cr18Ni11, 022Cr17Ni13Mo3, 06Cr18Ni11Ti, 06Cr18NiNi2Nb, 07Cr18Ni11, 022Cr17Ni13Mo3, 06Cr18Ni11Ti, 06Cr18NiNi2Nb, 07Cr18Ni11, 022Cr17Ni13Mo2 | ||
| EN: 1.4301,1.4306,1.4307,1.4401,1.4404,1.4410,1.4429,1.4462,1.4541,1.4571,1.4539,1.4550 | ||
| Spesifikasi | Garis Kontinyu |
OD: 10.00mm-219.08mm (HINGGA 8 ") WT: 0,5mm-10,00mm (SCH5S, 10S, 40S, STD) L: 3.00m-18.00m (pemotongan online) |
| Garis Bending |
OD: 219.08mm-2500.00mm WT: 3.00mm-35.00mm (SCH5S-80S, SCH5-160, STD) L: 1.50m, 2.00m, 6.00m |
|
| Standar | ASTM: A249, A269, A312, A358, A688, A778, A789, A790, A928 | |
| ASME: SA312, SA249, SA269, SA358, SA688, SA778, SA789, SA790 | ||
| GB / T: GB / T12771, GB / T12770, GB / T21832, GB / T24593 | ||
| HG: HG20537.1, HG20537.2, HG20537.3, HG20537.4 | ||
| EN: EN10217-7 Lainnya: API 5LC | ||
| Sertifikasi | ISO9001: 2008, PED, ASME, TS, Sertifikat berkualitas untuk membersihkan produksi | |
HDT sangat mementingkan peralatan dan teknologi canggih.Kami telah memperkenalkan:
Kapasitas:
10000MT per bulan untuk tabung dan pipa.
5000MT per bulan untuk pelat baja.
Aplikasi:
a) Untuk transportasi fluida dan gas
b) Struktur dan pemesinan
c) Pipa penukar panas dll
Keuntungan :
a) Permukaan akhir yang superior
b) Sifat mekanik yang lebih baik
c) Dimensi yang lebih tepat
d) Metode inspeksi dan peralatan inspeksi yang sempurna
Zhangjiagang Hua Dong Energy Technology Co., Ltd. (HDT) adalah anak perusahaan dari Zhangjiagang Hua Dong Boiler Co., Ltd., yang didirikan pada tahun 1985 dan merupakan salah satu produsen suku cadang boiler dan boiler paling terkemuka di Cina.Perusahaan meliputi area seluas 200.000㎡, dengan lebih dari 400 pekerja dan lebih dari 80 teknisi.Omset tahunan sekitar 110 juta dolar AS.Perusahaan tersebut berlokasi di kota pelabuhan Zhangjiagang di Provinsi Jiangsu, 1,5 jam ke bandara Shanghai Pudong dan 40 menit ke bandara Wuxi.
HDT adalah perusahaan teknologi tinggi yang mengkhususkan diri dalam memproduksi semua jenis tabung dan pipa baja tahan karat, karbon dan paduan, pelat baja dan alat kelengkapan pipa.Produk HDT telah banyak digunakan dalam industri seperti perminyakan, kimia, metalurgi, pembuatan kapal, mesin, listrik, mobil, penerbangan, kertas, makanan dan farmasi, dll. Kapasitas produksi tahunan pipa baja seamless, pipa las dan alat kelengkapan pipa adalah 30.000 ton. , 20,000t dan 5,000t.
Sejauh ini, HDT memegang sertifikasi ASME, PED + AD2000, API, ABS, CCS, LR, DNV, GL, BV, KR, GOST dan sebagainya.Kami berkontribusi untuk menyediakan produk berkualitas tinggi dan aman bagi pelanggan kami, dan banyak menekankan pada lean manufacturing, sehingga dapat membuat kerja sama yang saling menguntungkan dengan pelanggan dan melindungi lingkungan kita.
