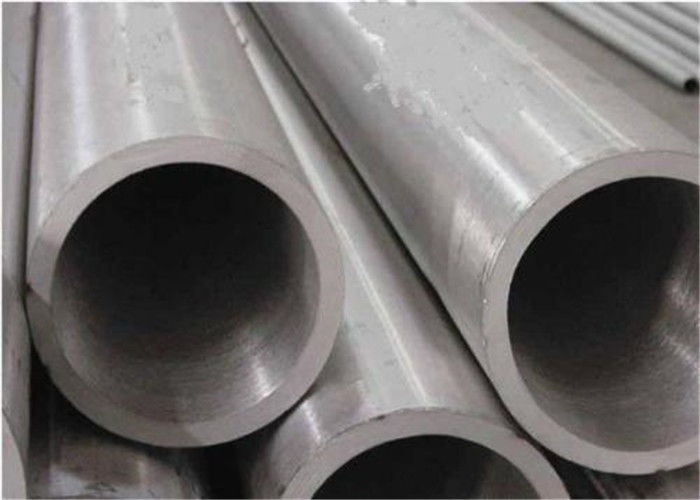

Boiler A213 P11 60X8.5mm Annealed Alloy Steel Seamless Tube
Product Details
| Nama Produk: | Tabung baja paduan mulus | Aplikasi: | Boiler dan Penukar Panas |
|---|---|---|---|
| Inspeksi pihak ketiga: | SGS, BV, INTERNET ECT | Kualitas baja: | P1 P2 P5 P9 P11 P22 P91 P92 T12 T22 dll. |
| Menyoroti |
A213 P11 Alloy Steel Seamless Tube,8.5mm Annealed Alloy Steel Seamless Tube,tabung Boiler P11 a213 |
||
Product Description
A213 P11 60 X 8.5 mm Alloy Steel Seamless Tube untuk Aplikasi Superheater & Reheater
-
pipa baja paduan untuk boiler
-
Pipa baja paduan A213 P11
-
60X 8Pipa baja paduan 5 mm
- Aplikasi: untuk Boiler, Superheater, Heat-Exchanger
Rentang ukuran: OD: 6-420mm WT: 1-50mm L: sesuai dengan kebutuhan pelanggan
| Nama Produk | Pipa / Tabung Baja Paduan | |
| Ukuran | OD | 1/2 "-24" |
| Ketebalan | sch20-sch160.dll | |
| Panjangnya | 5-20 juta | |
| Bahan Baja dan Grade | ASTM A213 T5 T9 T11 T12 T22 ASTM A335 P5, P9, P11, P12, P22 | |
| Metode Proses | Ditarik dingin / digulung dingin, hidrolik dingin ditarik | |
| Standar | ASTM A450 | |
| Pemakaian | Boiler, Superheater, dan heat-exchanger, tekanan tinggi & lingkungan suhu | |
| Permukaan | Lukisan Hitam Bared, Lapisan Anti Korosi | |
| Proctor | Tutup plastik | |
| Paket | Bundel, Massal | |
| Inspeksi | Dengan Pengujian Hidraulik, pengujian Ultrasonik atau Uji X-ray | |
| Sertifikat | ISO 9001-2000, ASTM 450 | |
| Tanggal pengiriman | Kurang Dari 15/20/25/30/40/50/60 Hari Menurut Kuantitas | |
| Pembayaran: | L / C atau T / T | |
| Pelabuhan pengiriman | Shanghai, Tiongkok |
|
| Kelas Baja dan Komposisi Kimia: | |||||||
| Kualitas baja | C | M N | P. | S | Si | Kr | Mo |
| maks | maks | maks | maks | maks | min | ||
| P5 | 0.15 | 0,30-0,60 | 0,025 | 0,025 | 0,50 | 4.00-6.00 | 0,45-0,65 |
| P9 | 0.15 | 0,30-0,60 | 0,025 | 0,025 | 0,25-1,00 | 8.00-10.00 | 0,90-1,10 |
| P11 | 0,05-0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50-1,00 | 1.00-1.50 | 0,44-0,65 |
| P12 | 0,05-0,15 | 0,30-0,61 | 0,025 | 0,025 | 0,50 | 0,80-1,25 | 0,44-0,65 |
| P21 | 0,05-0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50 | 2.65-3.35 | 0,80-1,06 |
| P22 | 0,05-0,15 | 0,30-0,60 | 0,025 | 0,025 | 0,50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0,08-0,12 | 0,30-0,60 | 0,020 | 0,010 | 0,20-0,50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0,07-0,13 | 0,30-0,60 | 0,020 | 0,010 | 0,50 | 8.50-9.50 | 0,30-0,60 |
| Kualitas baja | Kekuatan tarik | Kekuatan Hasil | Pemanjangan | Kekerasan Maks | ||
| min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell / Vickers | Rockwell | ||
| P1, P2 | 55 [380] | 30 [205] | 20 | |||
| P12 | 60 [415] | 32 [220] | 20 | |||
| P23 | 74 [510] | 58 [400] | 20 | |||
| P91 | 85 [585] | 60 [415] | 30 | 250 HB / 265 HV | 25 HRC | |
| P92, P911 | 90 [620] | 64 [440] | 30 | 250 HB / 265 HV | 25 HRC | |
| P122 | 90 [620] | 58 [400] | 30 | 250 HB / 265 HV | 25 HRC |
|
Tabung baja seamless memiliki penampang berongga, yang digunakan pada sejumlah besar pipa untuk mengalirkan fluida, seperti pipa minyak, gas, gas, air dan material padat tertentu.
Dibandingkan dengan pipa baja dan baja bulat solid fase kekuatan torsi lentur pada saat yang sama, bobotnya lebih ringan, adalah jenis baja penampang ekonomi, banyak digunakan dalam pembuatan bagian struktural dan mekanik, seperti pipa bor minyak bumi, poros transmisi otomatis, rangka sepeda dan konstruksi perancah baja digunakan dengan bagian annular manufaktur pipa baja, seperti dapat meningkatkan pemanfaatan material, menyederhanakan proses pembuatan, penghematan bahan dan waktu pemrosesan, telah banyak digunakan untuk membuat pipa baja.
