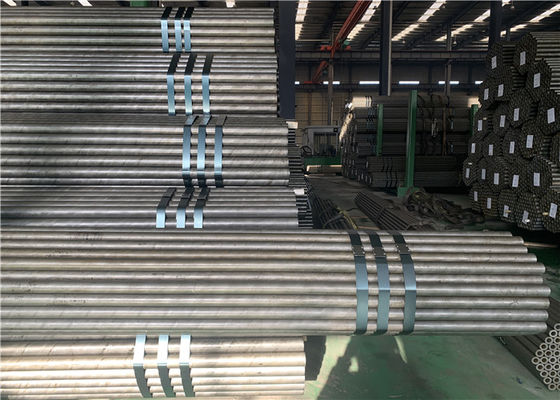

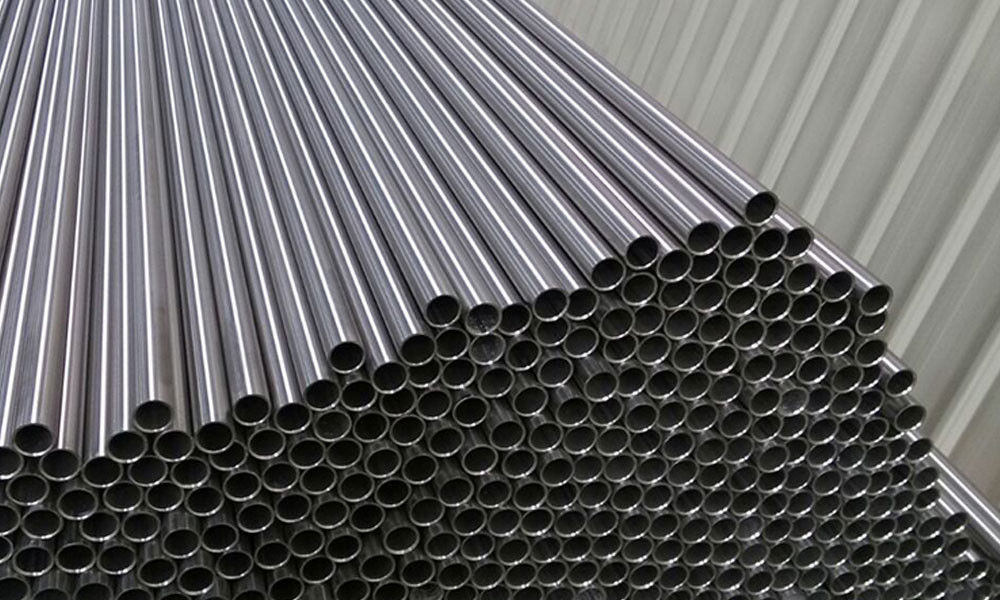

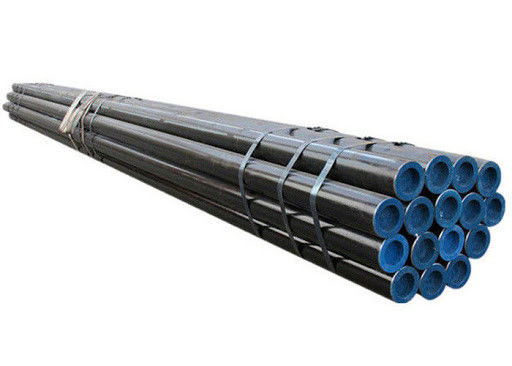

SGS ASTM A179 19.05X2.11X6000MM Seamless Boiler Tube U lentur
Product Details
| Nama Produk: | Tabung Boiler Seamless Baja Karbon | Aplikasi: | Penukar panas dan Kondensor Tubular |
|---|---|---|---|
| Inspeksi pihak ketiga: | BV, SGS, ASP | Sertifikat: | ISO9001-2008, API 5L, API 5CT |
| Menyoroti |
ASTM A179 seamless boiler tube,6000mm seamless boiler tube,Kondensor pipa baja seamless |
||
Product Description
Penukar Panas dan Tabung Kondensor Baja Dingin-Ditarik Dingin yang Mulus ASTM A179 19.05*2.11*6000MM Dinding Min
Pipa cold-drawn mulus untuk penukar panas tubular, kondensor, dan peralatan transfer panas serupa.Pipa ini harus dibuat dengan proses cold-draw.
Komposisi Kimia:
|
C,%
|
M N, %
|
P, %
|
S, %
|
|
0,06-0,18
|
0,27-0,63
|
0,035 maks
|
0,035 maks
|
Peralatan mekanis:
|
Kekuatan Tarik, MPa
|
Kekuatan Hasil, MPa
|
Perpanjangan, %
|
Kekerasan, HRB
|
|
325 menit
|
180 menit
|
35 menit
|
72 maks
|
Aplikasi:
Pipa baja seamless A179 banyak digunakan dalam industri seperti minyak bumi, kimia, medis, makanan, industri ringan, mesin, instrumen, termasuk pipa industri dan bagian struktur mekanik, dll.
Standar: ASTM A179
Waktu pengiriman: Segera (Stok) atau 10-40 hari (Produksi) Stok: beberapa Tersedia MTC: Tersedia
Diameter & Toleransi Luar
|
Diameter Luar, mm
|
Toleransi, mm
|
|
3.2≤OD＜25.4
|
±0,10
|
|
25.4≤OD≤38.1
|
± 0,15
|
|
38.1＜OD＜50.8
|
±0,20
|
|
50.8≤OD＜63.5
|
±0,25
|
|
63.5≤OD＜76.2
|
±0,30
|
|
76.2
|
±0,38
|
Ketebalan & Toleransi dinding
|
Diameter Luar, mm
|
Toleransi, %
|
| 3.2≤OD＜38.1 |
+20/-0
|
|
38.1≤OD≤76.2
|
+22/-0
|
Panjang: 5800mm;6000mm;6096mm;7315mm;11800mm;dan seterusnya.

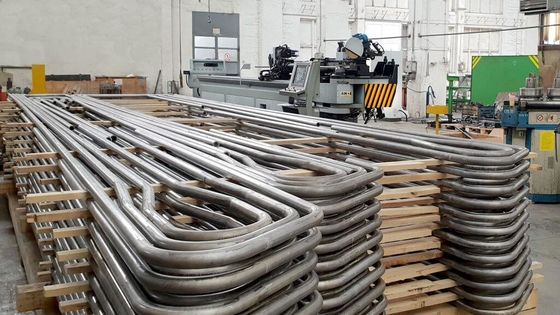

Panjang maksimal: 27000mm, juga U bending dapat ditawarkan.
Sertifikasi
