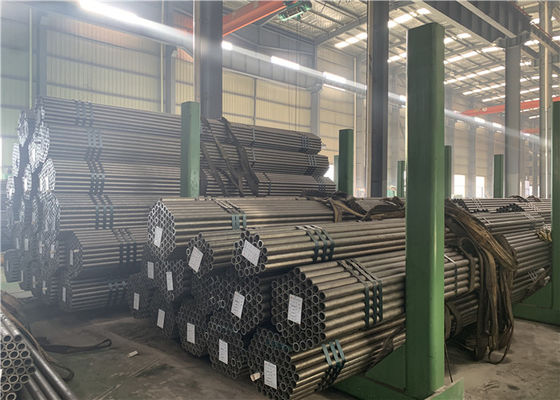

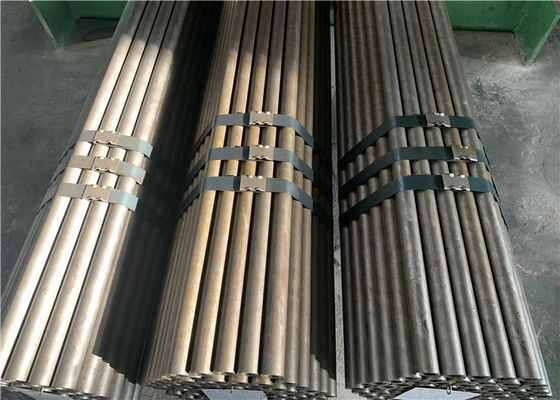

ASTM A210 Kondensor Tabung Baja Boiler Seamless Tekanan Rendah
Product Details
| Nama Produk: | Tabung Boiler Seamless Baja Karbon | Aplikasi: | Penukar panas dan Kondensor Tubular |
|---|---|---|---|
| Inspeksi pihak ketiga: | BV, SGS, ASP | Sertifikat: | ISO9001-2008, API 5L, API 5CT |
| Menyoroti |
ASTM A210 Boiler Steel Tube,ASTM A210 seamless Boiler Tube,Condenser seamless boiler tube |
||
Product Description
ASTM A210 boiler baja karbon menengah mulus dan tabung superheater
ASTM A210 adalah standar yang mencakup boiler baja karbon menengah mulus dan tabung superheater.Pipa baja karbon menengah mulus untuk tabung boiler dan pipa buang boiler, termasuk ketebalan dinding minimum dari sisi keamanan, kubah dan tabung pendukung dan tabung superheater.
Peralatan mekanis:
| Kelas | C (Maks) | M N | Si(Min) | P (Maks) | S (Maks) |
| A1 | 0.27 | Maks.0.93 | 0,10 | 0,035 | 0,035 |
| C | 0.35 | 0,29~1,06 | 0,10 | 0,035 | 0,035 |
Komposisi kimia:
| Kelas | Kekuatan Tarik (Mpa) | Kekuatan Hasil (Mpa) | Perpanjangan (%) |
| A1 | 415 | 255 | 30 |
| C | 485 | 275 | 30 |
Diameter & Toleransi Luar
| Digulung panas | Diameter Luar, mm | Toleransi, mm |
| OD≤101.6 | +0,4/-0,8 | |
| 101.6＜OD≤127 | +0.4/-1.2 | |
| Ditarik Dingin | Diameter Luar, mm | Toleransi, mm |
| OD＜25.4 | ±0,10 | |
| 25.4≤OD≤38.1 | ± 0,15 | |
| 38.1＜OD＜50.8 | ±0,20 | |
| 50.8≤OD＜63.5 | ±0,25 | |
| 63.5≤OD＜76.2 | ±0,30 | |
| 76.2≤OD≤101.6 | ±0,38 | |
| 101.6＜OD≤127 | +0,38/-0,64 | |
Ketebalan & Toleransi dinding
| Digulung panas | Diameter Luar , mm | Toleransi, % |
| OD≤101.6, WT≤2.4 | +40/-0 | |
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | |
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | |
| OD≤101.6, WT>4.6 | +28/-0 | |
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | |
| OD>101.6, 3.8WT≤4.6 | +33/-0 | |
| OD>101.6, WT>4.6 | +28/-0 | |
| Ditarik Dingin | Diameter Luar , mm | Toleransi, % |
| OD≤38.1 | +20/-0 | |
| OD>38,1 | +22/-0 |
Aplikasi:
- Untuk boiler bertekanan tinggi, menengah, rendah dan tujuan tekanan
Sertifikasi
